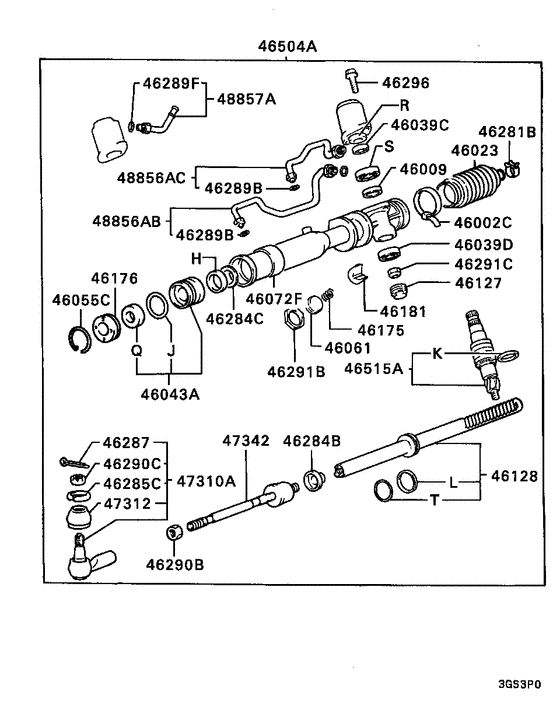

Steering gear (P/S DISASSEMBLED PARTS 8708.1-) Diagram Mitsubishi SPACE WAGON
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- transmission
- 5FM/T
- grade
- GLX
- body
- VAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46002C
|
46002C
MB122139 BAND, INDEPENDENT RR SUSP ARM270 |
MB122139 |
from US $4.60 |
||
|
46002C
|
46002C
MB243333 BAND, STEERING GEAR |
MB243333 |
US $9.18 |
||
|
46002C
|
46002C
MB350742 BAND, STEERING GEAR |
MB350742 |
US $8.73 |
||
|
46009
|
46009
MB350616
BEARING, STEERING GEAR PINION SHAFT, UPR
|
MB350616 |
— | ||
|
46023
|
46023
MB266165 BELLOWS, STEERING GEAR |
MB266165 |
US $38.48 |
||
|
46023
|
46023
MB266166 BELLOWS, STEERING GEAR |
MB266166 |
US $38.48 |
||
|
46023
|
46023
MB350581
BELLOWS, STEERING GEAR
|
MB350581 |
— | ||
| replacement | |||||
|
46023
|
46023
MB501711 BELLOWS, STEERING GEAR |
MB501711 |
from US $29.11 |
||
|
46023
|
46023
MB350770 BELLOWS, STEERING GEAR |
MB350770 |
US $28.12 |
||
|
46039C
|
46039C
MB243364 BEARING, STEERING GEAR BALL SCREW, LWR |
MB243364 |
US $48.10 |
||
|
46039D
|
46039D
MB350602 BEARING, STEERING GEAR PINION |
MB350602 |
US $22.94 |
||
|
46043A
|
46043A
MB350574
BUSHING ASSY, STEERING GEAR
|
MB350574 |
— | ||
|
46055C
|
46055C
MB350576 CLIP, STEERING GEAR PISTON |
MB350576 |
US $7.11 |
||
|
46061
|
46061
MB122138
COVER, STEERING GEAR RACK SUPPORT
|
MB122138 |
— | ||
|
46072F
|
46072F
MB350584 CUSHION, STEERING GEAR |
MB350584 |
US $9.77 |
||
|
46072F
|
46072F
MB350778 CUSHION, STEERING GEAR |
MB350778 |
US $8.73 |
||
|
46127
|
46127
MB243336 PLUG, STEERING GEAR |
MB243336 |
US $15.54 |
||
|
46128
|
46128
MB266174
RACK,STEERING GEAR
|
MB266174 |
— | ||
|
46128
|
46128
MB350763
RACK,STEERING GEAR
|
MB350763 |
— | ||
|
46128
|
46128
MB501084
RACK,STEERING GEAR
|
MB501084 |
— | ||
|
46175
|
46175
MB315560 SPRING, STEERING GEAR RACK SUPPORT |
MB315560 |
US $5.20 |
||
|
46175
|
46175
MB351248 SPRING, STEERING GEAR RACK SUPPORT |
MB351248 |
US $7.70 |
||
|
46175
|
46175
MB553048 SPRING, STEERING GEAR RACK SUPPORT |
MB553048 |
US $6.07 |
||
|
46176
|
46176
MB350575 STOPPER, STEERING GEAR RACK |
MB350575 |
US $16.28 |
||
|
46181
|
46181
MB122137 SUPPORT, STEERING GEAR RACK |
MB122137 |
US $22.94 |
||
|
46181
|
46181
MB351245 SUPPORT, STEERING GEAR RACK |
MB351245 |
US $25.99 |
||
|
46281B
|
46281B
MS660165 CLIP, ROCKER COVERD=14.8 |
MS660165 |
from US $1.72 |
||
|
46284B
|
46284B
MB243330 WASHER, STEERING GEAR |
MB243330 |
US $6.22 |
||
|
46284B
|
46284B
MB266164 WASHER, STEERING GEAR |
MB266164 |
from US $6.49 |
||
|
46284C
|
46284C
MB350603 WASHER, STEERING GEAR |
MB350603 |
US $8.88 |
||
|
46285C
|
46285C
MT191139 SNAP RING, FR WHEEL HUB22 |
MT191139 |
US $5.34 |
||
|
46287
|
46287
MF472054 PIN, ENG OIL PUMP INRSplit,2.5x25 |
MF472054 |
US $1.37 |
||
|
46289B
|
46289B
MB192717 O-RING, P/S OIL PUMP6 |
MB192717 |
from US $1.72 |
||
|
46289B
|
46289B
MB192820 O-RING, STEERING GEAR INR |
MB192820 |
US $4.24 |
||
|
46289F
|
46289F
MB166042
O-RING, STEERING GEAR INR
|
MB166042 |
— | ||
| replacement | |||||
|
46289F
|
46289F
MB950259 O-RING, STEERING GEAR INR |
MB950259 |
from US $1.31 |
||
|
46290B
|
46290B
MF430008 NUTNUT, 14, 4T |
MF430008 |
from US $0.98 |
||
|
46290C
|
46290C
MB122128 NUT, FR SUSP LWR ARMSlotted,6t,10 |
MB122128 |
US $3.56 |
||
|
46291B
|
46291B
MB006415 NUT, STEERING GEAR |
MB006415 |
US $8.48 |
||
|
46291C
|
46291C
MB243335 NUT, STEERING GEAR |
MB243335 |
US $5.47 |
||
|
46296
|
46296
MF140425 BOLT, ENG MOUNTINGFlange,8x20 |
MF140425 |
US $2.07 |
||
|
46296
|
46296
MF241254 BOLT, FLYWHEEL HOUSINGWasher assembled,8x22 |
MF241254 |
from US $1.11 |
||
|
46504A
|
46504A
MB350755
GEAR & LINK ASSY,P/S
|
MB350755 |
— | ||
|
46504A
|
46504A
MB553562
GEAR & LINK ASSY,P/S
|
MB553562 |
— | ||
|
46515A
|
46515A
MB350776
PINION & VALVE ASSY,P/S
|
MB350776 |
— | ||
|
46515A
|
46515A
MB553588
PINION & VALVE ASSY,P/S
|
MB553588 |
— | ||
|
46515A
|
46515A
MB553991
PINION & VALVE ASSY,P/S
|
MB553991 |
— | ||
|
47310A
|
47310A
MB192430
END ASSY, TIE ROD
|
MB192430 |
— | ||
| replacement | |||||
|
47310A
|
47310A
MB912519 END ASSY, TIE ROD |
MB912519 |
from US $32.31 |
||
|
47310A
|
47310A
MB564991
END ASSY, TIE ROD
|
MB564991 |
— | ||
| replacement | |||||
|
47310A
|
47310A
MB912519 END ASSY, TIE ROD |
MB912519 |
from US $32.31 |
||
|
47312
|
47312
MB192988 COVER, TIE ROD END |
MB192988 |
US $19.84 |
||
|
47312
|
47312
MB616023
COVER, TIE ROD END
|
MB616023 |
— | ||
| replacement | |||||
|
47312
|
47312
4422A137 TIE ROD END BOOT |
4422A137 |
US $19.20 |
||
|
47342
|
47342
MB243329 TIE ROD, STEERING |
MB243329 |
US $125.06 |
||
|
47342
|
47342
MB315160 TIE ROD, STEERING |
MB315160 |
US $102.12 |
||
|
47342
|
47342
MB532657 TIE ROD, STEERING |
MB532657 |
US $99.90 |
||
|
47342
|
47342
MB553569 TIE ROD, STEERING |
MB553569 |
US $96.20 |
||
|
48856AB
|
48856AB
MB243338
TUBE ASSY,P/S OIL FEED
|
MB243338 |
— | ||
|
48856AB
|
48856AB
MB553661
TUBE ASSY,P/S OIL FEED
|
MB553661 |
— | ||
|
48856AC
|
48856AC
MB243340
TUBE ASSY,P/S OIL FEED
|
MB243340 |
— | ||
|
48856AC
|
48856AC
MB553662
TUBE ASSY,P/S OIL FEED
|
MB553662 |
— | ||
|
48857A
|
48857A
MB288232
TUBE ASSY,P/S CYLINDER OIL RETURN
|
MB288232 |
— | ||
