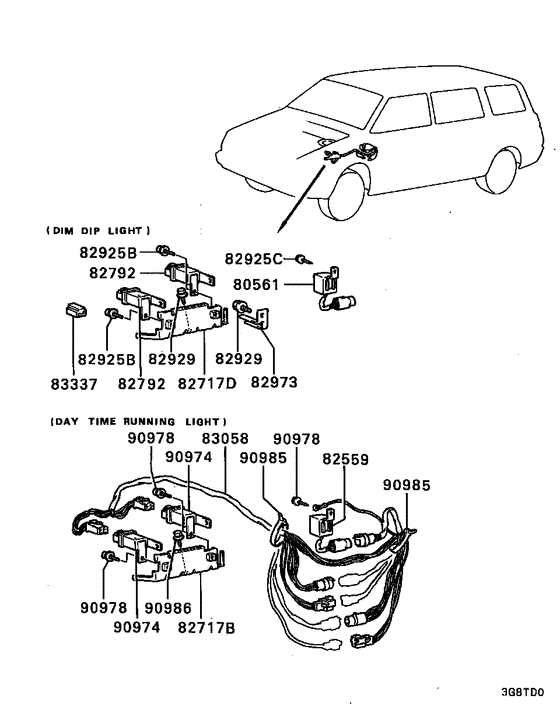

Relay,flasher & sensor (DIM-DIP & D,R,L,CONTROL SYSTEM) Diagram Mitsubishi SPACE WAGON
- Year
- 1985 - 1991
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T RHD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80561
|
80561
MB541315
RESISTOR,DIM-DIP LAMP
|
MB541315 |
— | ||
|
82717D
|
82717D
MB414035
BRACKET,RELAY
|
MB414035 |
— | ||
|
82792
|
82792
MB272664 RELAY, SPECIAL LAMPRs14166a |
MB272664 |
US $34.04 |
||
|
82925B
|
82925B
MF350790 SCREW, HAND STARTING EQUIPWasher assembled,6x12 |
MF350790 |
from US $0.82 |
||
|
82925C
|
82925C
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
82929
|
82929
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82973
|
82973
MB043630 CLIP, CRUISE CONTROL EQUIP8.5-40/55 |
MB043630 |
US $2.96 |
||
| replacement | |||||
|
82973
|
82973
MB305867 CLIP, SPEEDOMETER CABLE8.5-50/65 |
MB305867 |
US $4.65 |
||
|
83337
|
83337
MB541314 CONNECTOR,SPECIAL LAMP RELAY |
MB541314 |
US $16.28 |
||
|
90978
|
90978
MF350790 SCREW, HAND STARTING EQUIPWasher assembled,6x12 |
MF350790 |
from US $0.82 |
||
|
90978
|
90978
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
90986
|
90986
MB133273 BOLT, FUEL LINEWasher assembled,6x16 |
MB133273 |
US $3.01 |
||
|
90986
|
90986
MF243628 BOLT, CONNRODWasher assembled,6x25 |
MF243628 |
US $0.55 |
||
