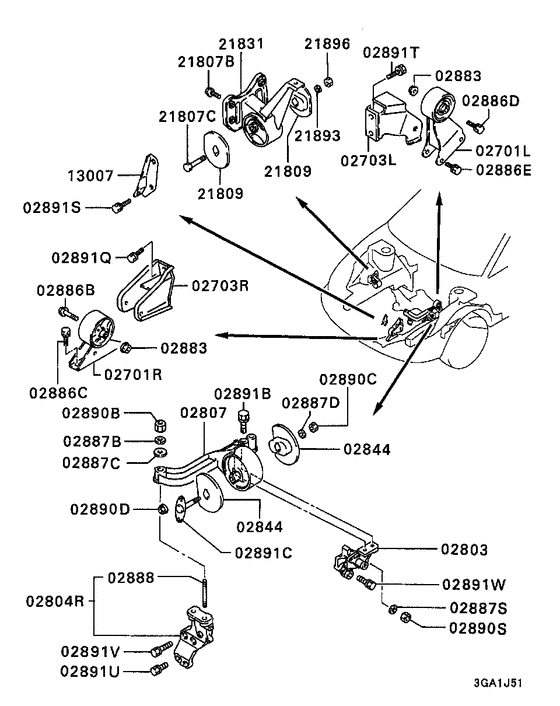

Engine mounting & support (ALL) Diagram Mitsubishi SPACE WAGON
- Year
- 1991 - 1992
- Sales region
- EUR
- Note
- GLX(TURBO),5FM/T LHD
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701L
|
02701L
MB581302
BRACKET,ENG ROLL STOPPER,LH
|
MB581302 |
— | ||
|
02701R
|
02701R
MB581285 BRACKET, ENG ROLL STOPPER, RH |
MB581285 |
US $147.26 |
||
|
02703L
|
02703L
MD161944
BRACKET,CYLINDER BLOCK ROLL STOPPER,LH
|
MD161944 |
— | ||
|
02703R
|
02703R
MD155225
BRACKET,CYLINDER BLOCK ROLL STOPPER,RH
|
MD155225 |
— | ||
|
02803
|
02803
MD131064
BRACKET,CYLINDER BLOCK ENG MOUNTING,LH
|
MD131064 |
— | ||
|
02804R
|
02804R
MD170805
BRACKET,CYLINDER BLOCK ENG MOUNTING,RH
|
MD170805 |
— | ||
|
02807
|
02807
MB581516
BRACKET,ENG FR MOUNTING
|
MB581516 |
— | ||
|
02844
|
02844
MB691476 STOPPER, ENG RR MOUNTING CUSHION |
MB691476 |
US $22.94 |
||
|
02883
|
02883
MB288462 NUT, ENG SUPPORT RODFlange self locking,10 |
MB288462 |
from US $2.07 |
||
| replacement | |||||
|
02883
|
02883
MB288462V
nut
|
MB288462V |
— | ||
|
02886B
|
02886B
MF140273 BOLT, ENG SUPPORT RODFlange,10x75 |
MF140273 |
from US $2.40 |
||
|
02886C
|
02886C
MB007176 BOLT, ENG RR MOUNTINGWasher assembled,10x25 |
MB007176 |
US $5.88 |
||
|
02886D
|
02886D
MB691358 BOLT, ENG SUPPORT RODCone point,10x85 |
MB691358 |
US $6.36 |
||
|
02886E
|
02886E
MF244892 BOLT, ENG SUPPORT RODWasher assembled,10x70 |
MF244892 |
US $3.70 |
||
|
02887B
|
02887B
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
02887C
|
02887C
MB007174 WASHER, ENG SUPPORT RODPlain,10.5 |
MB007174 |
US $3.97 |
||
|
02887D
|
02887D
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
02887S
|
02887S
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
02888
|
02888
MB581439
STUD,ENG MOUNTING
|
MB581439 |
— | ||
|
02890B
|
02890B
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02890C
|
02890C
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
|
02890D
|
02890D
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
02890S
|
02890S
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
02891B
|
02891B
MB006929 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB006929 |
US $7.66 |
||
|
02891B
|
02891B
MB309043 BOLT, ENG MOUNTINGWasher assembled,10x73 |
MB309043 |
US $4.59 |
||
|
02891C
|
02891C
MB175769
BOLT, ENG MOUNTING
|
MB175769 |
— | ||
|
02891Q
|
02891Q
MF241307 BOLTWasher assembled,12x25 |
MF241307 |
US $1.64 |
||
|
02891S
|
02891S
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
02891T
|
02891T
MD077190
BOLT, ENG SUPPORT ROD
|
MD077190 |
— | ||
|
02891U
|
02891U
MS240216 BOLT, ENG MOUNTINGWasher assembled,10x25 |
MS240216 |
US $2.60 |
||
|
02891V
|
02891V
MS240221 BOLT, ENG MOUNTINGWasher assembled,10x40 |
MS240221 |
US $3.15 |
||
|
02891W
|
02891W
MF241290 BOLT, ENG MOUNTINGWasher assembled,10x50 |
MF241290 |
US $3.11 |
||
|
13007
|
13007
MD071081 BRACKET, EXHAUST PIPE SUPPORT |
MD071081 |
US $9.77 |
||
|
21807B
|
21807B
MB309345
BOLT, ENG RR MOUNTING
|
MB309345 |
— | ||
|
21807C
|
21807C
MF104927 BOLT, ENG FR MOUNTING12x100 |
MF104927 |
US $4.92 |
||
|
21809
|
21809
MB691477 STOPPER, T/M MOUNTING |
MB691477 |
US $12.28 |
||
|
21831
|
21831
MB581325
BRACKET,T/M MOUNTING BODY SIDE
|
MB581325 |
— | ||
|
21893
|
21893
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
21896
|
21896
MF430007 NUT12 |
MF430007 |
from US $1.46 |
||
