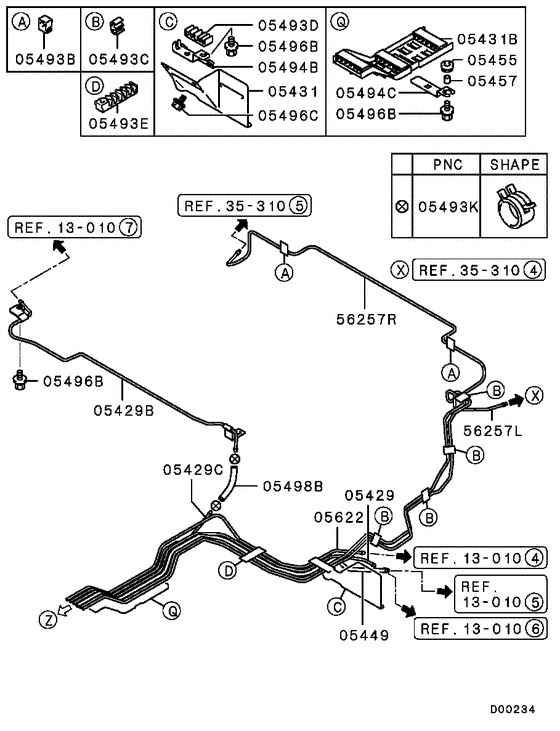

Fuel line & vapor gas control (GDI..REAR 0006.1-) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(7PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05429
|
05429
MR373523 PIPE, FUEL RETURN |
MR373523 |
US $41.04 |
||
|
05429B
|
05429B
MR385666 PIPE, FUEL RETURN |
MR385666 |
US $60.48 |
||
|
05429C
|
05429C
MR385664 PIPE, FUEL RETURN |
MR385664 |
US $36.72 |
||
|
05431
|
05431
MR373769 PROTECTOR, FUEL PIPE |
MR373769 |
US $33.84 |
||
|
05431B
|
05431B
MR464093 PROTECTOR, FUEL PIPE |
MR464093 |
US $5.18 |
||
|
05431B
|
05431B
MR464094 PROTECTOR,FUEL PIPE |
MR464094 |
US $6.05 |
||
|
05449
|
05449
MR373522 PIPE, FUEL LINE |
MR373522 |
US $76.32 |
||
|
05455
|
05455
MB221305 CUSHION, FUEL LINE |
MB221305 |
US $3.96 |
||
|
05457
|
05457
MB845609 COLLAR, FUEL LINE |
MB845609 |
from US $1.81 |
||
|
05493B
|
05493B
MR249619 CLIP, CLUTCH M/CYL |
MR249619 |
US $2.45 |
||
|
05493C
|
05493C
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.70 |
||
|
05493D
|
05493D
MB329980 CLIP, FUEL LINE |
MB329980 |
US $6.60 |
||
|
05493D
|
05493D
MR450190 CLIP,FUEL LINE |
MR450190 |
US $5.04 |
||
|
05493E
|
05493E
MR266961 CLIP, FUEL LINE |
MR266961 |
US $5.47 |
||
|
05493E
|
05493E
MR450189
CLIP,FUEL LINE
|
MR450189 |
— | ||
|
05493K
|
05493K
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $3.96 |
||
|
05494B
|
05494B
MR385673 CLAMP, FUEL LINE |
MR385673 |
US $9.94 |
||
|
05494C
|
05494C
MR464106 CLAMP, FUEL LINE |
MR464106 |
US $3.17 |
||
|
05496B
|
05496B
MS240126 BOLT, RADIATOR CONDENSER TANKWasher assembled,8x25 |
MS240126 |
US $2.51 |
||
|
05496C
|
05496C
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.99 |
||
|
05498B
|
05498B
MU602741 HOSE, FUEL RETURN LINE6x410 |
MU602741 |
US $25.74 |
||
|
05622
|
05622
MR450187
PIPE,FUEL VAPOR
|
MR450187 |
— | ||
|
05622
|
05622
MR552040 PIPE, FUEL VAPOR |
MR552040 |
US $53.28 |
||
|
56257L
|
56257L
MR307825
TUBE,BRAKE MAIN
|
MR307825 |
— | ||
|
56257L
|
56257L
MR449043
TUBE,BRAKE MAIN
|
MR449043 |
— | ||
|
56257L
|
56257L
MR449045
TUBE,BRAKE MAIN
|
MR449045 |
— | ||
|
56257L
|
56257L
MR527785 TUBE, BRAKE MAIN, LH |
MR527785 |
US $54 |
||
|
56257R
|
56257R
MR307826
TUBE,BRAKE MAIN
|
MR307826 |
— | ||
|
56257R
|
56257R
MR449044
TUBE,BRAKE MAIN
|
MR449044 |
— | ||
|
56257R
|
56257R
MR449046
TUBE,BRAKE MAIN
|
MR449046 |
— | ||
|
56257R
|
56257R
MR527786 TUBE, BRAKE MAIN, RH |
MR527786 |
US $66.96 |
||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 010
|
Fuel tank
13 010
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
