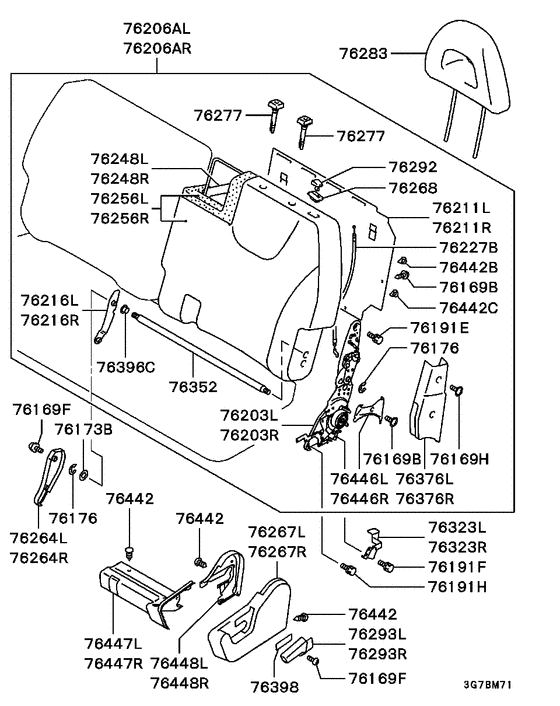

Rear seat (BENCH..BACK) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(7PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76169B
|
76169B
MF453615 SCREW, FLOOR INSPECTION LIDTapping,4x16 |
MF453615 |
US $1.92 |
||
|
76169F
|
76169F
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
76169H
|
76169H
MR321184 SCREW, FR SEAT4x8 |
MR321184 |
US $1.78 |
||
|
76173B
|
76173B
MB850061 WASHER, FR SEAT |
MB850061 |
US $2.66 |
||
|
76173B
|
76173B
MR378291 WASHER, RR SEAT |
MR378291 |
US $4.14 |
||
|
76191E
|
76191E
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $0.90 |
||
|
76191F
|
76191F
MR347877 BOLT, RR SEAT |
MR347877 |
US $1.63 |
||
|
76191H
|
76191H
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $0.90 |
||
|
76203L
|
76203L
MR347675 ADJUSTER, 2ND SEAT RECLINING, LH |
MR347675 |
US $120.62 |
||
|
76203R
|
76203R
MR347676 FRAME, 2ND SEAT BACK, RH |
MR347676 |
US $120.62 |
||
|
76206AL
|
76206AL
MR626454
BACK ASSY,2ND SEAT,LH
|
MR626454 |
— | ||
|
76206AL
|
76206AL
MR637695
BACK ASSY,2ND SEAT,LH
|
MR637695 |
— | ||
|
76206AL
|
76206AL
MR798236 BACK ASSY,2ND SEAT,LH |
MR798236 |
US $824.10 |
||
|
76206AR
|
76206AR
MR602311 BACK ASSY,2ND SEAT,RH |
MR602311 |
US $824.10 |
||
|
76206AR
|
76206AR
MR626456
BACK ASSY,2ND SEAT,RH
|
MR626456 |
— | ||
|
76206AR
|
76206AR
MR637697
BACK ASSY,2ND SEAT,RH
|
MR637697 |
— | ||
|
76211L
|
76211L
MR378309 BOARD,2ND SEAT BACK,LH |
MR378309 |
US $102.86 |
||
|
76211R
|
76211R
MR378310 BOARD,2ND SEAT BACK,RH |
MR378310 |
US $102.86 |
||
|
76216L
|
76216L
MB341119 BRACKET, 2ND SEAT HINGE, LH |
MB341119 |
US $10.66 |
||
|
76216R
|
76216R
MB341120 BRACKET, 2ND SEAT HINGE, RH |
MB341120 |
US $10.66 |
||
|
76227B
|
76227B
MR347887 CABLE, 2ND SEAT LEVER CONTROL |
MR347887 |
US $51.06 |
||
|
76248L
|
76248L
MR378313 FRAME,2ND SEAT BACK,LH |
MR378313 |
US $236.80 |
||
|
76248R
|
76248R
MR378314 FRAME,2ND SEAT BACK,RH |
MR378314 |
US $236.80 |
||
|
76256L
|
76256L
MR626474
COVER,2ND SEAT BACK,LH
|
MR626474 |
— | ||
|
76256L
|
76256L
MR637716
COVER,2ND SEAT BACK,LH
|
MR637716 |
— | ||
|
76256L
|
76256L
MR798237 COVER,2ND SEAT BACK,LH |
MR798237 |
US $636.27 |
||
|
76256R
|
76256R
MR626472
COVER,2ND SEAT BACK,RH
|
MR626472 |
— | ||
|
76256R
|
76256R
MR637714
COVER,2ND SEAT BACK,RH
|
MR637714 |
— | ||
|
76256R
|
76256R
MR790740 COVER,2ND SEAT BACK,RH |
MR790740 |
US $636.27 |
||
|
76264L
|
76264L
MR635942 COVER, 2ND SEAT HINGE |
MR635942 |
US $19.24 |
||
|
76264L
|
76264L
MR779927 COVER, 2ND SEAT HINGE |
MR779927 |
US $19.24 |
||
|
76264R
|
76264R
MR635943 COVER, 2ND SEAT HINGE |
MR635943 |
US $19.24 |
||
|
76264R
|
76264R
MR779929 COVER, 2ND SEAT HINGE |
MR779929 |
US $19.24 |
||
|
76267L
|
76267L
MR635936 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR635936 |
US $45.14 |
||
|
76267L
|
76267L
MR779915 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR779915 |
US $45.14 |
||
|
76267R
|
76267R
MR635937 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR635937 |
US $45.14 |
||
|
76267R
|
76267R
MR779917 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR779917 |
US $45.14 |
||
|
76268
|
76268
MR635801 GARNISH, RR SEAT FOLDING KNOB |
MR635801 |
US $9.62 |
||
|
76268
|
76268
MR779834 GARNISH, 2ND SEAT FOLDING KNOB |
MR779834 |
US $9.62 |
||
|
76277
|
76277
MR635932 GUIDE, FR SEAT HEADRESTW/lock |
MR635932 |
US $10.36 |
||
|
76277
|
76277
MR635933 GUIDE, FR SEAT HEADRESTW/o lock |
MR635933 |
US $10.36 |
||
|
76277
|
76277
MR779904 GUIDE, FR SEAT HEADRESTW/lock |
MR779904 |
US $10.80 |
||
|
76277
|
76277
MR779905 GUIDE, FR SEAT HEADRESTW/o lock |
MR779905 |
US $10.36 |
||
|
76283
|
76283
MR626447
HEADREST,FR SEAT
|
MR626447 |
— | ||
|
76283
|
76283
MR637690
HEADREST,FR SEAT
|
MR637690 |
— | ||
|
76283
|
76283
MR790719
HEADREST,FR SEAT
|
MR790719 |
— | ||
|
76292
|
76292
MR610533 KNOB, 2ND SEAT FOLDING LEVER |
MR610533 |
from US $3.57 |
||
|
76292
|
76292
MR779835 KNOB, 2ND SEAT FOLDING LEVER |
MR779835 |
US $6.07 |
||
|
76293L
|
76293L
MR610556 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MR610556 |
US $7.25 |
||
|
76293L
|
76293L
MR781472 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MR781472 |
US $6.22 |
||
|
76293R
|
76293R
MR610558 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR610558 |
US $6.98 |
||
|
76293R
|
76293R
MR781474 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR781474 |
US $6.22 |
||
|
76323L
|
76323L
MR347875 LEVER, 2ND SEAT WALK-IN, LH |
MR347875 |
US $22.20 |
||
|
76323R
|
76323R
MR347876 LEVER, 2ND SEAT WALK-IN, RH |
MR347876 |
US $22.20 |
||
|
76352
|
76352
MR378306 SHAFT,2ND SEAT RECLINING ADJUSTER |
MR378306 |
US $64.38 |
||
|
76352
|
76352
MR378307
SHAFT,2ND SEAT RECLINING ADJUSTER
|
MR378307 |
— | ||
|
76376L
|
76376L
MR635957 COVER, 2ND SEAT HINGE, LH |
MR635957 |
US $32.56 |
||
|
76376L
|
76376L
MR779953 COVER, 2ND SEAT HINGE, LH |
MR779953 |
US $32.56 |
||
|
76376R
|
76376R
MR635958 COVER, 2ND SEAT HINGE, RH |
MR635958 |
US $32.56 |
||
|
76376R
|
76376R
MR779955 COVER, 2ND SEAT HINGE, RH |
MR779955 |
US $32.56 |
||
|
76396C
|
76396C
MB873679 BUSHING, RR SEAT |
MB873679 |
US $4.59 |
||
|
76398
|
76398
MR635874 CAP, FR SEAT |
MR635874 |
US $3.55 |
||
|
76398
|
76398
MR779840 CAP, FR SEAT |
MR779840 |
US $3.55 |
||
|
76442
|
76442
MR635955 CLIP, FR SEAT |
MR635955 |
US $3.55 |
||
|
76442
|
76442
MR781536 CLIP, RR SEAT |
MR781536 |
US $3.55 |
||
|
76442B
|
76442B
MR378276 CLIP, 2ND SEAT |
MR378276 |
US $3.55 |
||
|
76442C
|
76442C
MR347892 CLIP, 2ND SEAT |
MR347892 |
US $3.55 |
||
|
76446L
|
76446L
MR635959 COVER, RR SEAT RECLINING ADJUSTER, UPR INR LH |
MR635959 |
US $6.51 |
||
|
76446L
|
76446L
MR781538 COVER, RR SEAT RECLINING ADJUSTER, UPR INR LH |
MR781538 |
US $6.51 |
||
|
76446R
|
76446R
MR635960 COVER, RR SEAT RECLINING ADJUSTER, UPR INR RH |
MR635960 |
US $6.51 |
||
|
76446R
|
76446R
MR781540 COVER, RR SEAT RECLINING ADJUSTER, UPR INR RH |
MR781540 |
US $7.84 |
||
|
76447L
|
76447L
MR635938 COVER,2ND SEAT SLIDE ADJUSTER,INR |
MR635938 |
US $54.02 |
||
|
76447L
|
76447L
MR779919 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779919 |
US $54.02 |
||
|
76447R
|
76447R
MR635939 COVER,2ND SEAT SLIDE ADJUSTER,INR |
MR635939 |
US $54.02 |
||
|
76447R
|
76447R
MR779921 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779921 |
US $54.02 |
||
|
76448L
|
76448L
MR635940 COVER,2ND SEAT SLIDE ADJUSTER,INR |
MR635940 |
US $30.34 |
||
|
76448L
|
76448L
MR779923 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779923 |
US $30.34 |
||
|
76448R
|
76448R
MR635941 COVER,2ND SEAT SLIDE ADJUSTER,INR |
MR635941 |
US $30.34 |
||
|
76448R
|
76448R
MR779925 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779925 |
US $30.34 |
