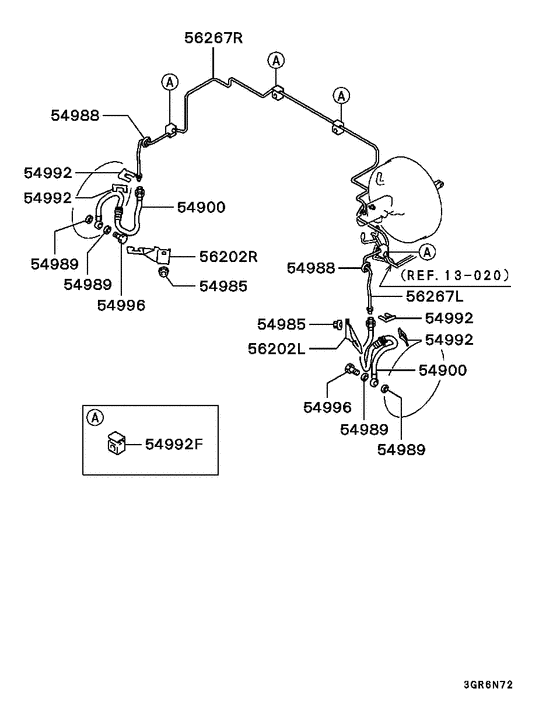

Brake line (FRONT..LHD(EXC.ABS)) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(6PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MN116821
HOSE,FR BRAKE
|
MN116821 |
— | ||
|
54900
|
54900
MR449322
HOSE,FR BRAKE
|
MR449322 |
— | ||
|
54985
|
54985
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54988
|
54988
MS810053 GROMMET, FUEL LINE6 |
MS810053 |
US $3.01 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54992
|
54992
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992F
|
54992F
MR249619 CLIP, CLUTCH M/CYL |
MR249619 |
US $2.52 |
||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
56202L
|
56202L
MN116595 BRACKET, BRAKE HOSE, LH |
MN116595 |
US $4.14 |
||
|
56202L
|
56202L
MR370611 BRACKET, BRAKE HOSE, LH |
MR370611 |
US $5.03 |
||
|
56202R
|
56202R
MN116596 BRACKET, BRAKE HOSE, RH |
MN116596 |
US $4.14 |
||
|
56202R
|
56202R
MR370612 BRACKET, BRAKE HOSE, RH |
MR370612 |
US $5.03 |
||
|
56267L
|
56267L
MR289264
TUBE,FR BRAKE,LH
|
MR289264 |
— | ||
|
56267L
|
56267L
MR289278
TUBE,FR BRAKE,LH
|
MR289278 |
— | ||
|
56267R
|
56267R
MR289265
TUBE,FR BRAKE,RH
|
MR289265 |
— | ||
|
56267R
|
56267R
MR289279
TUBE,FR BRAKE,RH
|
MR289279 |
— | ||
|
