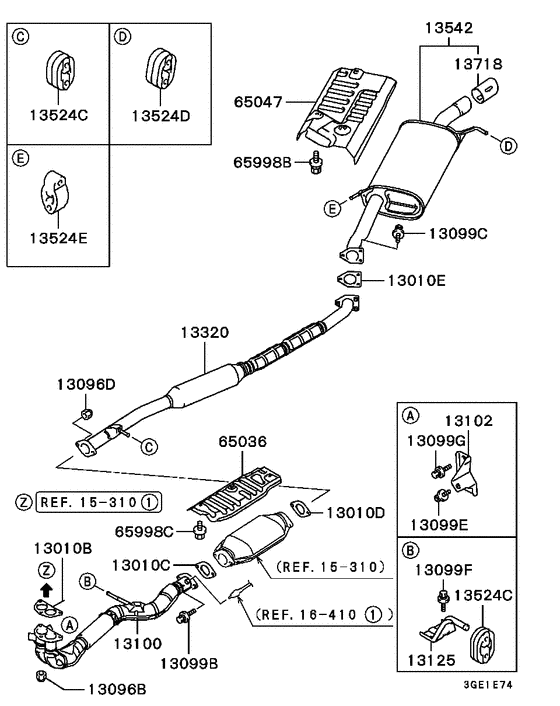

Exhaust pipe & muffler (GDI..-0005.3) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(6PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010B
|
13010B
MB687015 GASKET, EXHAUST PIPE |
MB687015 |
from US $5.77 |
||
|
13010B
|
13010B
MB687022 GASKET, EXHAUST PIPE |
MB687022 |
from US $10.21 |
||
|
13010B
|
13010B
MR529713 GASKET, CATALYTIC CONVERTER |
MR529713 |
from US $4.41 |
||
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010C
|
13010C
MR529712 GASKET, EXHAUST PIPE |
MR529712 |
from US $4.64 |
||
|
13010D
|
13010D
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $5.73 |
||
|
13010D
|
13010D
MR529712 GASKET, EXHAUST PIPE |
MR529712 |
from US $4.64 |
||
|
13010E
|
13010E
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $4.60 |
||
|
13010E
|
13010E
MN110644 GASKET, CATALYTIC CONVERTER |
MN110644 |
from US $4.60 |
||
|
13096B
|
13096B
MB059333 NUT, EXHAUST PIPESelf locking,10 |
MB059333 |
from US $1.74 |
||
|
13096D
|
13096D
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $1.66 |
||
|
13096D
|
13096D
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13099B
|
13099B
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.54 |
||
|
13099C
|
13099C
MF241286 BOLT, COOLING FANWasher assembled,10x35 |
MF241286 |
from US $1.07 |
||
|
13099E
|
13099E
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
13099F
|
13099F
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
13099G
|
13099G
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
13100
|
13100
MR404375
PIPE,EXHAUST,FR
|
MR404375 |
— | ||
|
13100
|
13100
MR497723
PIPE,EXHAUST,FR
|
MR497723 |
— | ||
|
13100
|
13100
MR529044
PIPE,EXHAUST,FR
|
MR529044 |
— | ||
|
13102
|
13102
MR258412 BRACKET,EXHAUST FR PIPE |
MR258412 |
US $27.38 |
||
|
13102
|
13102
MR385729 BRACKET, EXHAUST FR PIPE |
MR385729 |
US $15.54 |
||
|
13125
|
13125
MR355180
HANGER,EXHAUST FR PIPE
|
MR355180 |
— | ||
|
13320
|
13320
MR404267
PIPE,EXHAUST,CTR
|
MR404267 |
— | ||
|
13320
|
13320
MR497728
PIPE,EXHAUST,CTR
|
MR497728 |
— | ||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MR281816 HANGER, EXHAUST MUFFLER |
MR281816 |
from US $10.65 |
||
|
13524E
|
13524E
MR281817 HANGER, EXHAUST MUFFLER |
MR281817 |
from US $12.25 |
||
|
13542
|
13542
MR464429 MUFFLER,EXHAUST MAIN |
MR464429 |
US $695.97 |
||
|
13542
|
13542
MR481980 MUFFLER, EXHAUST MAIN |
MR481980 |
US $575.12 |
||
|
13542
|
13542
MR514553 MUFFLER, EXHAUST MAIN |
MR514553 |
US $633.36 |
||
|
13718
|
13718
MR340444 DIFFUSER, EXHAUST TAIL PIPE |
MR340444 |
US $44.40 |
||
|
65036
|
65036
MR293382 PROTECTOR, UNDER FR FLOOR HEAT |
MR293382 |
US $37 |
||
|
65047
|
65047
MR447901 PROTECTOR, UNDER RR FLOOR HEAT |
MR447901 |
US $76.96 |
||
|
65998B
|
65998B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
65998C
|
65998C
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
