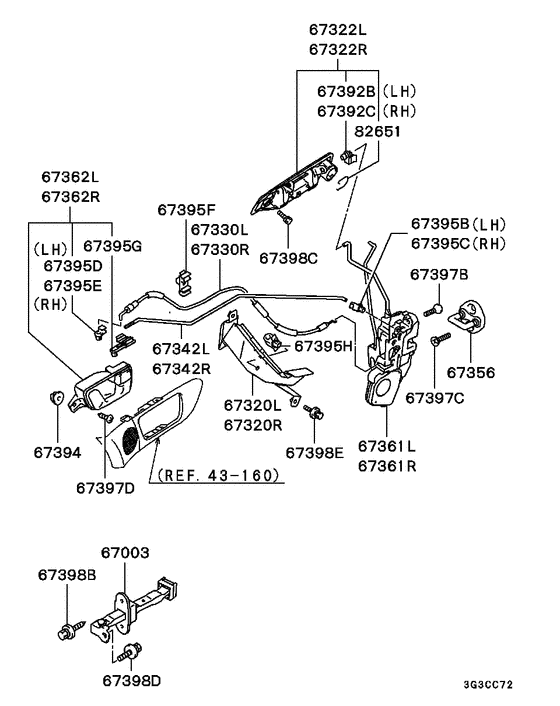

Front door locking (ALL) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(6PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
MR292177
CHECK, FR DOOR
|
MR292177 |
— | ||
| replacement | |||||
|
67003
|
67003
5702A075 CHECK, FR DOOR |
5702A075 |
US $28.04 |
||
|
67320L
|
67320L
MR510531
COVER,FR DOOR INSIDE HANDLE ROD,LH
|
MR510531 |
— | ||
|
67320R
|
67320R
MR510532
COVER,FR DOOR INSIDE HANDLE ROD,RH
|
MR510532 |
— | ||
|
67322L
|
67322L
MR271867 HANDLE, FR DOOR OUTSIDE, LH |
MR271867 |
from US $54.04 |
||
|
67322L
|
67322L
MR384806 HANDLE, FR DOOR OUTSIDE, LH |
MR384806 |
US $56.24 |
||
|
67322L
|
67322L
MR384808 HANDLE, FR DOOR OUTSIDE, LH |
MR384808 |
US $56.24 |
||
|
67322L
|
67322L
MR473401 HANDLE, FR DOOR OUTSIDE, LH |
MR473401 |
US $75.48 |
||
|
67322L
|
67322L
MR774402 HANDLE, FR DOOR OUTSIDE, LH |
MR774402 |
US $56.24 |
||
|
67322L
|
67322L
MR774403 HANDLE, FR DOOR OUTSIDE, LH |
MR774403 |
US $56.24 |
||
|
67322L
|
67322L
MR774409 HANDLE, FR DOOR OUTSIDE, LH |
MR774409 |
US $56.24 |
||
|
67322L
|
67322L
MR775468 HANDLE, FR DOOR OUTSIDE, LH |
MR775468 |
US $56.24 |
||
|
67322L
|
67322L
MR798485 HANDLE, FR DOOR OUTSIDE, LH |
MR798485 |
US $56.24 |
||
|
67322L
|
67322L
MR799981 HANDLE, FR DOOR OUTSIDE, LH |
MR799981 |
US $56.24 |
||
|
67322R
|
67322R
MR271868 HANDLE, FR DOOR OUTSIDE, RH |
MR271868 |
from US $54.04 |
||
|
67322R
|
67322R
MR384812 HANDLE, FR DOOR OUTSIDE, RH |
MR384812 |
US $56.24 |
||
|
67322R
|
67322R
MR384814 HANDLE, FR DOOR OUTSIDE, RH |
MR384814 |
US $56.24 |
||
|
67322R
|
67322R
MR473402 HANDLE, FR DOOR OUTSIDE, RH |
MR473402 |
US $75.48 |
||
|
67322R
|
67322R
MR774411 HANDLE, FR DOOR OUTSIDE, RH |
MR774411 |
US $56.24 |
||
|
67322R
|
67322R
MR774412 HANDLE, FR DOOR OUTSIDE, RH |
MR774412 |
US $56.24 |
||
|
67322R
|
67322R
MR774418 HANDLE, FR DOOR OUTSIDE, RH |
MR774418 |
US $56.24 |
||
|
67322R
|
67322R
MR775469 HANDLE, FR DOOR OUTSIDE, RH |
MR775469 |
US $56.24 |
||
|
67322R
|
67322R
MR798486 HANDLE, FR DOOR OUTSIDE, RH |
MR798486 |
US $56.24 |
||
|
67322R
|
67322R
MR799982 HANDLE, FR DOOR OUTSIDE, RH |
MR799982 |
US $56.24 |
||
|
67330L
|
67330L
MR432361
CABLE,FR DOOR INSIDE LOCK,LH
|
MR432361 |
— | ||
|
67330R
|
67330R
MR432362
CABLE,FR DOOR INSIDE LOCK,RH
|
MR432362 |
— | ||
|
67342L
|
67342L
MR342051 ROD, FR DOOR INSIDE HANDLE, LH |
MR342051 |
US $10.66 |
||
|
67342R
|
67342R
MR342052 ROD, FR DOOR INSIDE HANDLE, RH |
MR342052 |
US $10.66 |
||
|
67356
|
67356
MB867059 STRIKER, FR DOOR LATCH |
MB867059 |
from US $9.87 |
||
|
67361L
|
67361L
MR473077
LATCH,FR DOOR,LH
|
MR473077 |
— | ||
|
67361L
|
67361L
MR523715
LATCH,FR DOOR,LH
|
MR523715 |
— | ||
|
67361R
|
67361R
MR473078
LATCH,FR DOOR,RH
|
MR473078 |
— | ||
|
67361R
|
67361R
MR523716
LATCH,FR DOOR,RH
|
MR523716 |
— | ||
|
67362L
|
67362L
MR432619
HANDLE,FR DOOR INSIDE,LH
|
MR432619 |
— | ||
|
67362R
|
67362R
MR432620
HANDLE,FR DOOR INSIDE,RH
|
MR432620 |
— | ||
|
67392B
|
67392B
MU481091 SNAP, FR DOOR LOCKING |
MU481091 |
from US $0.99 |
||
|
67392C
|
67392C
MU481090 SNAP, FR DOOR LOCKING |
MU481090 |
from US $0.82 |
||
|
67394
|
67394
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $1.11 |
||
|
67395B
|
67395B
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.66 |
||
|
67395C
|
67395C
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
67395D
|
67395D
MR396059 CLIP, RR DOOR LOCKING |
MR396059 |
US $2.52 |
||
|
67395E
|
67395E
MR396060 CLIP, RR DOOR LOCKING |
MR396060 |
US $2.37 |
||
|
67395F
|
67395F
MU481262 CLIP, FR DOOR LOCKING |
MU481262 |
from US $0.96 |
||
|
67395G
|
67395G
MR396056 CLIP, FR DOOR LOCKING |
MR396056 |
US $2.52 |
||
|
67395G
|
67395G
MR987211 CLIP, FR DOOR LOCKING |
MR987211 |
US $2.07 |
||
|
67395H
|
67395H
MU481073 CLIP, TRUNK LID LOCKING5 |
MU481073 |
US $2.60 |
||
|
67397B
|
67397B
MU200079 SCREW, FR DOOR LOCKINGMachine(plus),6x18 |
MU200079 |
US $3.01 |
||
|
67397C
|
67397C
MU200069 SCREW, FR DOOR LOCKINGWasher assembled,8x22.5 |
MU200069 |
US $3.15 |
||
|
67397D
|
67397D
MF453046 SCREW, FUEL LINETapping,6x14 |
MF453046 |
US $2.60 |
||
|
67398B
|
67398B
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
67398B
|
67398B
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
|
67398B
|
67398B
MS241160 BOLT, CLUTCH M/CYLWasher assembled,6x16 |
MS241160 |
US $1.48 |
||
|
67398C
|
67398C
MF240021 BOLT, AUDIO EQUIPWasher assembled,6x8 |
MF240021 |
US $1.04 |
||
|
67398C
|
67398C
MS240040 BOLT, IGNITION COILWasher assembled,6x8 |
MS240040 |
US $2.46 |
||
|
67398D
|
67398D
MS240591 BOLT, AIR CLEANERWasher assembled,6x16 |
MS240591 |
US $2.96 |
||
|
67398D
|
67398D
MS240593 BOLT, FR DOOR LOCKINGWasher assembled,6x20 |
MS240593 |
US $4.10 |
||
|
67398E
|
67398E
MB321590
Bolt
|
MB321590 |
— | ||
| replacement | |||||
|
67398E
|
67398E
MU240087 BOLTWasher assembled,6x10 |
MU240087 |
from US $1.31 |
||
|
82651
|
82651
MB676441 RING, DOOR LOCK CYLINDER |
MB676441 |
US $1.78 |
||
|
