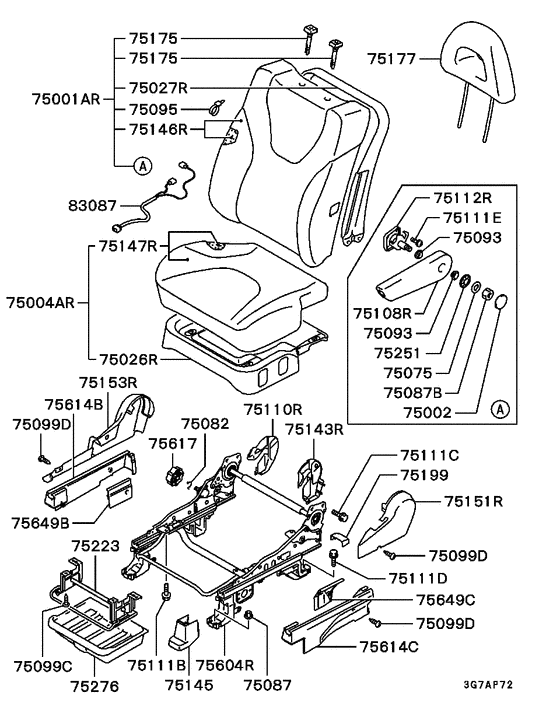

Front seat (RH..W/O HEIGHT CONTROL) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(6PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
MN121178HA
BACK ASSY,FR SEAT,RH
|
MN121178HA |
— | ||
|
75001AR
|
75001AR
MR626373
BACK ASSY,FR SEAT,RH
|
MR626373 |
— | ||
|
75001AR
|
75001AR
MR626377
BACK ASSY,FR SEAT,RH
|
MR626377 |
— | ||
|
75001AR
|
75001AR
MR637624
BACK ASSY,FR SEAT,RH
|
MR637624 |
— | ||
|
75001AR
|
75001AR
MR637630
BACK ASSY,FR SEAT,RH
|
MR637630 |
— | ||
|
75001AR
|
75001AR
MR790701
BACK ASSY,FR SEAT,RH
|
MR790701 |
— | ||
|
75001AR
|
75001AR
MR790703
BACK ASSY,FR SEAT,RH
|
MR790703 |
— | ||
|
75002
|
75002
MR635873 CAP, FR SEAT ARMREST |
MR635873 |
US $5.62 |
||
|
75002
|
75002
MR788144 CAP, FR SEAT ARMREST |
MR788144 |
US $5.18 |
||
|
75004AR
|
75004AR
MR626358
CUSHION ASSY,FR SEAT,RH
|
MR626358 |
— | ||
|
75004AR
|
75004AR
MR637613
CUSHION ASSY,FR SEAT,RH
|
MR637613 |
— | ||
|
75004AR
|
75004AR
MR790695
CUSHION ASSY,FR SEAT,RH
|
MR790695 |
— | ||
|
75026R
|
75026R
MR177224 FRAME, FR SEAT CUSHION, LH |
MR177224 |
US $193.88 |
||
|
75027R
|
75027R
MR321638 FRAME, FR SEAT BACK, RH |
MR321638 |
US $193.88 |
||
|
75075
|
75075
MR219285 WASHER, FR SEAT |
MR219285 |
US $2.66 |
||
|
75082
|
75082
MB916447 SNAP RING, FR SEAT |
MB916447 |
from US $1.15 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75087B
|
75087B
MB850060 NUT, FR SEAT16 |
MB850060 |
US $3.85 |
||
|
75093
|
75093
MB850058 BUSHING, FR SEAT |
MB850058 |
US $2.96 |
||
|
75095
|
75095
MB196675 BAND, GEARSHIFT LINKL=150 |
MB196675 |
US $2.37 |
||
|
75095
|
75095
MB306583 BAND, GEARSHIFT LINK100 |
MB306583 |
US $2.37 |
||
|
75099C
|
75099C
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75108R
|
75108R
MR626466
ARMREST,FR SEAT,RH
|
MR626466 |
— | ||
|
75108R
|
75108R
MR637708
ARMREST,FR SEAT,RH
|
MR637708 |
— | ||
|
75108R
|
75108R
MR793157 ARMREST,FR SEAT,RH |
MR793157 |
US $233.84 |
||
|
75110R
|
75110R
MR637653
COVER,FR SEAT HINGE,INR LH
|
MR637653 |
— | ||
|
75110R
|
75110R
MR798227
COVER,FR SEAT HINGE,INR LH
|
MR798227 |
— | ||
|
75111B
|
75111B
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
75111B
|
75111B
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $0.82 |
||
|
75111B
|
75111B
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
75111C
|
75111C
MF140258 BOLT, ENG WATER COOLERFlange,10x20 |
MF140258 |
from US $1.23 |
||
|
75111C
|
75111C
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111E
|
75111E
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
75112R
|
75112R
MR408342 BRACKET, FR SEAT ARMREST, RH |
MR408342 |
US $59.20 |
||
|
75143R
|
75143R
MR637652
COVER,FR SEAT SIDE SHIELD,INR LH
|
MR637652 |
— | ||
|
75143R
|
75143R
MR798226
COVER,FR SEAT SIDE SHIELD,INR LH
|
MR798226 |
— | ||
|
75145
|
75145
MR635996 COVER, FR SEAT ANCHOR |
MR635996 |
US $5.18 |
||
|
75145
|
75145
MR780019 COVER, FR SEAT ANCHOR |
MR780019 |
US $5.18 |
||
|
75146R
|
75146R
MN121192HA
COVER,FR SEAT BACK,RH
|
MN121192HA |
— | ||
|
75146R
|
75146R
MR626421
COVER,FR SEAT BACK,RH
|
MR626421 |
— | ||
|
75146R
|
75146R
MR626430
COVER,FR SEAT BACK,RH
|
MR626430 |
— | ||
|
75146R
|
75146R
MR637667
COVER,FR SEAT BACK,RH
|
MR637667 |
— | ||
|
75146R
|
75146R
MR637676
COVER,FR SEAT BACK,RH
|
MR637676 |
— | ||
|
75146R
|
75146R
MR790714
COVER,FR SEAT BACK,RH
|
MR790714 |
— | ||
|
75146R
|
75146R
MR790717
COVER,FR SEAT BACK,RH
|
MR790717 |
— | ||
|
75147R
|
75147R
MR626406
COVER,FR SEAT CUSHION,RH
|
MR626406 |
— | ||
|
75147R
|
75147R
MR637657
COVER,FR SEAT CUSHION,RH
|
MR637657 |
— | ||
|
75147R
|
75147R
MR790706
COVER,FR SEAT CUSHION,RH
|
MR790706 |
— | ||
|
75151R
|
75151R
MR637651
COVER,FR SEAT HINGE,RH
|
MR637651 |
— | ||
|
75151R
|
75151R
MR798225
COVER,FR SEAT HINGE,RH
|
MR798225 |
— | ||
|
75153R
|
75153R
MR637649
COVER,FR SEAT SIDE SHIELD,RH
|
MR637649 |
— | ||
|
75153R
|
75153R
MR798223
COVER,FR SEAT SIDE SHIELD,RH
|
MR798223 |
— | ||
|
75175
|
75175
MR635932 GUIDE, FR SEAT HEADRESTW/lock |
MR635932 |
US $10.36 |
||
|
75175
|
75175
MR635933 GUIDE, FR SEAT HEADRESTW/o lock |
MR635933 |
US $10.36 |
||
|
75175
|
75175
MR779904 GUIDE, FR SEAT HEADRESTW/lock |
MR779904 |
US $10.80 |
||
|
75175
|
75175
MR779905 GUIDE, FR SEAT HEADRESTW/o lock |
MR779905 |
US $10.36 |
||
|
75177
|
75177
MR626445
HEADREST,FR SEAT
|
MR626445 |
— | ||
|
75177
|
75177
MR637688
HEADREST,FR SEAT
|
MR637688 |
— | ||
|
75177
|
75177
MR799102
HEADREST,FR SEAT
|
MR799102 |
— | ||
|
75199
|
75199
MR635876 COVER, FR SEAT ANCHOR, RR |
MR635876 |
US $5.18 |
||
|
75199
|
75199
MR779845 COVER, FR SEAT ANCHOR, RR |
MR779845 |
US $5.18 |
||
|
75223
|
75223
MR378486
RAIL,FR SEAT UNDER TRAY
|
MR378486 |
— | ||
|
75251
|
75251
MR219283 SPRING, FR SEAT |
MR219283 |
US $4 |
||
|
75276
|
75276
MB158863 TRAY, FR SEAT UNDER |
MB158863 |
US $28.73 |
||
|
75604R
|
75604R
MR347286
ADJUSTER,FR SEAT SLIDE,RH
|
MR347286 |
— | ||
|
75614B
|
75614B
MR635889 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR635889 |
US $18.50 |
||
|
75614B
|
75614B
MR781458 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR781458 |
US $18.50 |
||
|
75614C
|
75614C
MR635891 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR635891 |
US $24.42 |
||
|
75614C
|
75614C
MR781462 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR781462 |
US $24.42 |
||
|
75617
|
75617
MR637654
KNOB,FR SEAT RECLINING ADJUSTER
|
MR637654 |
— | ||
|
75617
|
75617
MR798228
LEVER,FR SEAT
|
MR798228 |
— | ||
|
75649B
|
75649B
MR635895 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR635895 |
US $5.18 |
||
|
75649B
|
75649B
MR781470 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR781470 |
US $5.18 |
||
|
75649C
|
75649C
MR635893 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR635893 |
US $5.18 |
||
|
75649C
|
75649C
MR781466 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR781466 |
US $5.18 |
||
|
83087
|
83087
MR408379
HARNESS,SEAT HEATER
|
MR408379 |
— |
