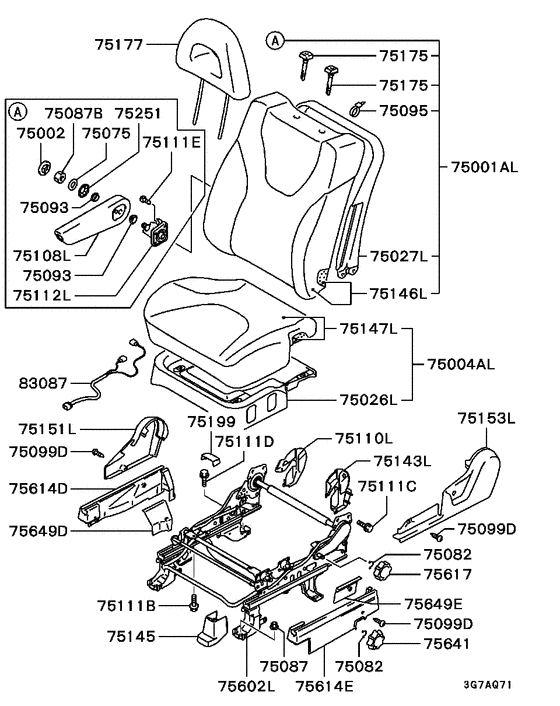

Front seat (LH..W/HEIGHT CONTROL) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(6PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MN121177HA
BACK ASSY,FR SEAT,LH
|
MN121177HA |
— | ||
|
75001AL
|
75001AL
MR629362
BACK ASSY,FR SEAT,LH
|
MR629362 |
— | ||
|
75001AL
|
75001AL
MR629364
BACK ASSY,FR SEAT,LH
|
MR629364 |
— | ||
|
75001AL
|
75001AL
MR637623
BACK ASSY,FR SEAT,LH
|
MR637623 |
— | ||
|
75001AL
|
75001AL
MR637629
BACK ASSY,FR SEAT,LH
|
MR637629 |
— | ||
|
75001AL
|
75001AL
MR790700
BACK ASSY,FR SEAT,LH
|
MR790700 |
— | ||
|
75001AL
|
75001AL
MR790702
BACK ASSY,FR SEAT,LH
|
MR790702 |
— | ||
|
75002
|
75002
MR635873 CAP, FR SEAT ARMREST |
MR635873 |
US $5.62 |
||
|
75002
|
75002
MR788144 CAP, FR SEAT ARMREST |
MR788144 |
US $5.18 |
||
|
75004AL
|
75004AL
MR626357
CUSHION ASSY,FR SEAT,LH
|
MR626357 |
— | ||
|
75004AL
|
75004AL
MR637612
CUSHION ASSY,FR SEAT,LH
|
MR637612 |
— | ||
|
75004AL
|
75004AL
MR790694
CUSHION ASSY,FR SEAT,LH
|
MR790694 |
— | ||
|
75026L
|
75026L
MR177224 FRAME, FR SEAT CUSHION, LH |
MR177224 |
US $193.88 |
||
|
75027L
|
75027L
MR321637
FRAME, FR SEAT BACK, LH
|
MR321637 |
— | ||
|
75075
|
75075
MR219285 WASHER, FR SEAT |
MR219285 |
US $2.66 |
||
|
75082
|
75082
MB916447 SNAP RING, FR SEAT |
MB916447 |
from US $1.15 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75087B
|
75087B
MB850060 NUT, FR SEAT16 |
MB850060 |
US $3.85 |
||
|
75093
|
75093
MB850058 BUSHING, FR SEAT |
MB850058 |
US $2.96 |
||
|
75095
|
75095
MB196675 BAND, GEARSHIFT LINKL=150 |
MB196675 |
US $2.37 |
||
|
75095
|
75095
MB306583 BAND, GEARSHIFT LINK100 |
MB306583 |
US $2.37 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $0.45 |
||
|
75108L
|
75108L
MR626464
ARMREST,FR SEAT,LH
|
MR626464 |
— | ||
|
75108L
|
75108L
MR637706
ARMREST,FR SEAT,LH
|
MR637706 |
— | ||
|
75108L
|
75108L
MR793156 ARMREST,FR SEAT,LH |
MR793156 |
US $233.84 |
||
|
75110L
|
75110L
MR637653
COVER,FR SEAT HINGE,INR LH
|
MR637653 |
— | ||
|
75110L
|
75110L
MR798227
COVER,FR SEAT HINGE,INR LH
|
MR798227 |
— | ||
|
75111B
|
75111B
MF140223 BOLT, CYLINDER HEADFlange,8x16 |
MF140223 |
from US $1.01 |
||
|
75111B
|
75111B
MF241253 BOLT, CRANKCASEWasher assembled,8x20 |
MF241253 |
from US $0.82 |
||
|
75111B
|
75111B
MS240139 BOLT, STEERING COLUMNWasher assembled,8x20 |
MS240139 |
from US $1.23 |
||
|
75111C
|
75111C
MF140258 BOLT, ENG WATER COOLERFlange,10x20 |
MF140258 |
from US $1.23 |
||
|
75111C
|
75111C
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111C
|
75111C
MF241282 BOLT, CYLINDER BLOCKWasher assembled,10x25 |
MF241282 |
from US $1.33 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111E
|
75111E
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
75112L
|
75112L
MR408341 BRACKET, FR SEAT ARMREST, LH |
MR408341 |
US $59.20 |
||
|
75143L
|
75143L
MR637652
COVER,FR SEAT SIDE SHIELD,INR LH
|
MR637652 |
— | ||
|
75143L
|
75143L
MR798226
COVER,FR SEAT SIDE SHIELD,INR LH
|
MR798226 |
— | ||
|
75145
|
75145
MR635996 COVER, FR SEAT ANCHOR |
MR635996 |
US $5.18 |
||
|
75145
|
75145
MR780019 COVER, FR SEAT ANCHOR |
MR780019 |
US $5.18 |
||
|
75146L
|
75146L
MN121191HA
COVER,FR SEAT BACK,LH
|
MN121191HA |
— | ||
|
75146L
|
75146L
MR629367
COVER,FR SEAT BACK,LH
|
MR629367 |
— | ||
|
75146L
|
75146L
MR629369
COVER,FR SEAT BACK,LH
|
MR629369 |
— | ||
|
75146L
|
75146L
MR637669
COVER,FR SEAT BACK,LH
|
MR637669 |
— | ||
|
75146L
|
75146L
MR637675
COVER,FR SEAT BACK,LH
|
MR637675 |
— | ||
|
75146L
|
75146L
MR790715
COVER,FR SEAT BACK,LH
|
MR790715 |
— | ||
|
75146L
|
75146L
MR790716
COVER,FR SEAT BACK,LH
|
MR790716 |
— | ||
|
75147L
|
75147L
MR626407
COVER,FR SEAT CUSHION,LH
|
MR626407 |
— | ||
|
75147L
|
75147L
MR637658
COVER,FR SEAT CUSHION,LH
|
MR637658 |
— | ||
|
75147L
|
75147L
MR790709
COVER,FR SEAT CUSHION,LH
|
MR790709 |
— | ||
|
75151L
|
75151L
MR637650
COVER,FR SEAT HINGE,LH
|
MR637650 |
— | ||
|
75151L
|
75151L
MR798224
COVER,FR SEAT HINGE,LH
|
MR798224 |
— | ||
|
75153L
|
75153L
MR637648
COVER,FR SEAT SIDE SHIELD,LH
|
MR637648 |
— | ||
|
75153L
|
75153L
MR798222
COVER,FR SEAT SIDE SHIELD,LH
|
MR798222 |
— | ||
|
75175
|
75175
MR635932 GUIDE, FR SEAT HEADRESTW/lock |
MR635932 |
US $10.36 |
||
|
75175
|
75175
MR635933 GUIDE, FR SEAT HEADRESTW/o lock |
MR635933 |
US $10.36 |
||
|
75175
|
75175
MR779904 GUIDE, FR SEAT HEADRESTW/lock |
MR779904 |
US $10.80 |
||
|
75175
|
75175
MR779905 GUIDE, FR SEAT HEADRESTW/o lock |
MR779905 |
US $10.36 |
||
|
75177
|
75177
MR626445
HEADREST,FR SEAT
|
MR626445 |
— | ||
|
75177
|
75177
MR637688
HEADREST,FR SEAT
|
MR637688 |
— | ||
|
75177
|
75177
MR799102
HEADREST,FR SEAT
|
MR799102 |
— | ||
|
75199
|
75199
MR635876 COVER, FR SEAT ANCHOR, RR |
MR635876 |
US $5.18 |
||
|
75199
|
75199
MR779845 COVER, FR SEAT ANCHOR, RR |
MR779845 |
US $5.18 |
||
|
75251
|
75251
MR219283 SPRING, FR SEAT |
MR219283 |
US $4 |
||
|
75602L
|
75602L
MR321997
ADJUSTER,FR SEAT HEIGHT,LH
|
MR321997 |
— | ||
|
75614D
|
75614D
MR635890 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR635890 |
US $24.42 |
||
|
75614D
|
75614D
MR781460 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR781460 |
US $24.42 |
||
|
75614E
|
75614E
MR635888 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR635888 |
US $18.50 |
||
|
75614E
|
75614E
MR781456 COVER, FR SEAT SLIDE ADJUSTER SIDE |
MR781456 |
US $18.50 |
||
|
75617
|
75617
MR637654
KNOB,FR SEAT RECLINING ADJUSTER
|
MR637654 |
— | ||
|
75617
|
75617
MR798228
LEVER,FR SEAT
|
MR798228 |
— | ||
|
75641
|
75641
MR610560 KNOB, FR SEAT HEIGHT ADJUSTER |
MR610560 |
US $13 |
||
|
75641
|
75641
MR781476 KNOB, FR SEAT HEIGHT ADJUSTER |
MR781476 |
US $11.69 |
||
|
75649D
|
75649D
MR635892 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR635892 |
US $5.18 |
||
|
75649D
|
75649D
MR781464 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR781464 |
US $5.18 |
||
|
75649E
|
75649E
MR635894 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR635894 |
US $5.18 |
||
|
75649E
|
75649E
MR781468 COVER, FR SEAT SLIDE ADJUSTER SIDE, INR |
MR781468 |
US $5.18 |
||
|
83087
|
83087
MR408379
HARNESS,SEAT HEATER
|
MR408379 |
— |
