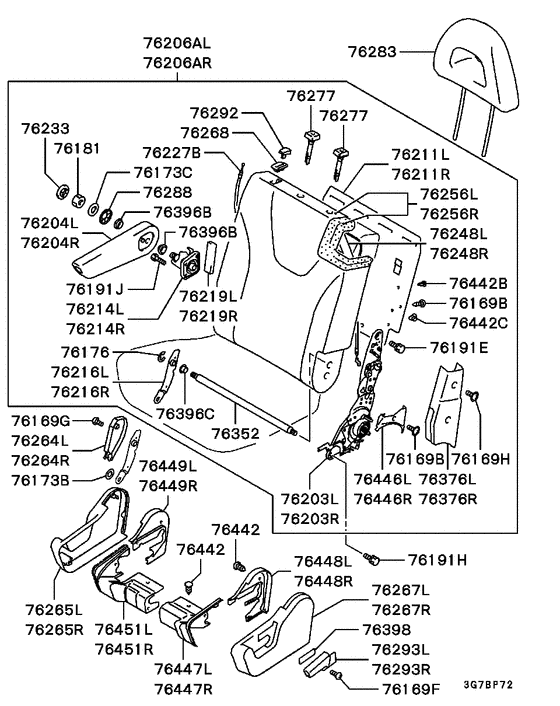

Rear seat (SEPARATE..BACK) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2004
- Sales region
- EUR
- Note
- GLX(6PERSONS/SEAT HEATER),5FM/T LHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76169B
|
76169B
MF453615 SCREW, FLOOR INSPECTION LIDTapping,4x16 |
MF453615 |
US $1.92 |
||
|
76169F
|
76169F
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
76169G
|
76169G
MB411166 SCREW, FR SEAT |
MB411166 |
US $2.66 |
||
|
76169H
|
76169H
MR321184 SCREW, FR SEAT4x8 |
MR321184 |
US $1.78 |
||
|
76173B
|
76173B
MB850061 WASHER, FR SEAT |
MB850061 |
US $2.66 |
||
|
76173B
|
76173B
MR378291 WASHER, RR SEAT |
MR378291 |
US $4.14 |
||
|
76173C
|
76173C
MR219285 WASHER, FR SEAT |
MR219285 |
US $2.66 |
||
|
76181
|
76181
MB850060 NUT, FR SEAT16 |
MB850060 |
US $3.85 |
||
|
76191E
|
76191E
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $0.90 |
||
|
76191H
|
76191H
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $0.90 |
||
|
76191J
|
76191J
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
76203L
|
76203L
MR347677 ADJUSTER, 2ND SEAT RECLINING, LH |
MR347677 |
US $99.90 |
||
|
76203R
|
76203R
MR347678 ADJUSTER, 2ND SEAT RECLINING, RH |
MR347678 |
US $99.90 |
||
|
76204L
|
76204L
MR626465
ARMREST,FR SEAT,LH
|
MR626465 |
— | ||
|
76204L
|
76204L
MR637707
ARMREST,FR SEAT,LH
|
MR637707 |
— | ||
|
76204L
|
76204L
MR793156 ARMREST,FR SEAT,LH |
MR793156 |
US $233.84 |
||
|
76204R
|
76204R
MR626467
ARMREST,FR SEAT,RH
|
MR626467 |
— | ||
|
76204R
|
76204R
MR637709
ARMREST,FR SEAT,RH
|
MR637709 |
— | ||
|
76204R
|
76204R
MR793157 ARMREST,FR SEAT,RH |
MR793157 |
US $233.84 |
||
|
76206AL
|
76206AL
MR602314
BACK ASSY,2ND SEAT,LH
|
MR602314 |
— | ||
|
76206AL
|
76206AL
MR626457
BACK ASSY,2ND SEAT,LH
|
MR626457 |
— | ||
|
76206AL
|
76206AL
MR637698
BACK ASSY,2ND SEAT,LH
|
MR637698 |
— | ||
|
76206AR
|
76206AR
MR602317
BACK ASSY,2ND SEAT,RH
|
MR602317 |
— | ||
|
76206AR
|
76206AR
MR626459
BACK ASSY,2ND SEAT,RH
|
MR626459 |
— | ||
|
76206AR
|
76206AR
MR637699
BACK ASSY,2ND SEAT,RH
|
MR637699 |
— | ||
|
76211L
|
76211L
MR378311
BOARD,2ND SEAT BACK,LH
|
MR378311 |
— | ||
|
76211R
|
76211R
MR378312
BOARD,2ND SEAT BACK,RH
|
MR378312 |
— | ||
|
76214L
|
76214L
MR347889 BRACKET, 2ND SEAT ARMREST, LH |
MR347889 |
US $60.68 |
||
|
76214R
|
76214R
MR347890 BRACKET, 2ND SEAT ARMREST, RH |
MR347890 |
US $60.68 |
||
|
76216L
|
76216L
MB341119 BRACKET, 2ND SEAT HINGE, LH |
MB341119 |
US $10.66 |
||
|
76216R
|
76216R
MB341120 BRACKET, 2ND SEAT HINGE, RH |
MB341120 |
US $10.66 |
||
|
76227B
|
76227B
MR347888 CABLE, 2ND SEAT LEVER CONTROL |
MR347888 |
US $42.18 |
||
|
76233
|
76233
MR635873 CAP, FR SEAT ARMREST |
MR635873 |
US $5.62 |
||
|
76233
|
76233
MR788144 CAP, FR SEAT ARMREST |
MR788144 |
US $5.18 |
||
|
76248L
|
76248L
MR378315
FRAME,2ND SEAT BACK,LH
|
MR378315 |
— | ||
|
76248R
|
76248R
MR378316
FRAME,2ND SEAT BACK,RH
|
MR378316 |
— | ||
|
76256L
|
76256L
MR602320
COVER,2ND SEAT BACK,LH
|
MR602320 |
— | ||
|
76256L
|
76256L
MR628216
COVER,2ND SEAT BACK,LH
|
MR628216 |
— | ||
|
76256L
|
76256L
MR637717
COVER,2ND SEAT BACK,LH
|
MR637717 |
— | ||
|
76256R
|
76256R
MR602323
COVER,2ND SEAT BACK,RH
|
MR602323 |
— | ||
|
76256R
|
76256R
MR628217
COVER,2ND SEAT BACK,RH
|
MR628217 |
— | ||
|
76256R
|
76256R
MR637718
COVER,2ND SEAT BACK,RH
|
MR637718 |
— | ||
|
76264L
|
76264L
MR635951 COVER, 2ND SEAT HINGE |
MR635951 |
US $19.24 |
||
|
76264L
|
76264L
MR779945 COVER, 2ND SEAT HINGE |
MR779945 |
US $19.24 |
||
|
76264R
|
76264R
MR635952 COVER, 2ND SEAT HINGE |
MR635952 |
US $19.24 |
||
|
76264R
|
76264R
MR779947 COVER, 2ND SEAT HINGE |
MR779947 |
US $19.24 |
||
|
76265L
|
76265L
MR635944 COVER, 2ND SEAT FREE HINGE, LH |
MR635944 |
US $18.50 |
||
|
76265L
|
76265L
MR779931 COVER, 2ND SEAT FREE HINGE, LH |
MR779931 |
US $18.50 |
||
|
76265R
|
76265R
MR635945 COVER, 2ND SEAT FREE HINGE, RH |
MR635945 |
US $18.50 |
||
|
76265R
|
76265R
MR779933 COVER, 2ND SEAT FREE HINGE, RH |
MR779933 |
US $18.50 |
||
|
76267L
|
76267L
MR635936 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR635936 |
US $45.14 |
||
|
76267L
|
76267L
MR779915 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR779915 |
US $45.14 |
||
|
76267R
|
76267R
MR635937 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR635937 |
US $45.14 |
||
|
76267R
|
76267R
MR779917 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR779917 |
US $45.14 |
||
|
76268
|
76268
MR635801 GARNISH, RR SEAT FOLDING KNOB |
MR635801 |
US $9.62 |
||
|
76268
|
76268
MR779834 GARNISH, 2ND SEAT FOLDING KNOB |
MR779834 |
US $9.62 |
||
|
76277
|
76277
MR635932 GUIDE, FR SEAT HEADRESTW/lock |
MR635932 |
US $10.36 |
||
|
76277
|
76277
MR635933 GUIDE, FR SEAT HEADRESTW/o lock |
MR635933 |
US $10.36 |
||
|
76277
|
76277
MR779904 GUIDE, FR SEAT HEADRESTW/lock |
MR779904 |
US $10.80 |
||
|
76277
|
76277
MR779905 GUIDE, FR SEAT HEADRESTW/o lock |
MR779905 |
US $10.36 |
||
|
76283
|
76283
MR626447
HEADREST,FR SEAT
|
MR626447 |
— | ||
|
76283
|
76283
MR637690
HEADREST,FR SEAT
|
MR637690 |
— | ||
|
76283
|
76283
MR790719
HEADREST,FR SEAT
|
MR790719 |
— | ||
|
76288
|
76288
MR219283 SPRING, FR SEAT |
MR219283 |
US $4 |
||
|
76292
|
76292
MR610533 KNOB, 2ND SEAT FOLDING LEVER |
MR610533 |
from US $3.57 |
||
|
76292
|
76292
MR779835 KNOB, 2ND SEAT FOLDING LEVER |
MR779835 |
US $6.07 |
||
|
76293L
|
76293L
MR610556 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MR610556 |
US $7.25 |
||
|
76293L
|
76293L
MR781472 LEVER, FR SEAT RECLINING ADJUSTER, LH |
MR781472 |
US $6.22 |
||
|
76293R
|
76293R
MR610558 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR610558 |
US $6.98 |
||
|
76293R
|
76293R
MR781474 LEVER, FR SEAT RECLINING ADJUSTER, RH |
MR781474 |
US $6.22 |
||
|
76352
|
76352
MR378306 SHAFT,2ND SEAT RECLINING ADJUSTER |
MR378306 |
US $64.38 |
||
|
76352
|
76352
MR378307
SHAFT,2ND SEAT RECLINING ADJUSTER
|
MR378307 |
— | ||
|
76376L
|
76376L
MR635957 COVER, 2ND SEAT HINGE, LH |
MR635957 |
US $32.56 |
||
|
76376L
|
76376L
MR779953 COVER, 2ND SEAT HINGE, LH |
MR779953 |
US $32.56 |
||
|
76376R
|
76376R
MR635958 COVER, 2ND SEAT HINGE, RH |
MR635958 |
US $32.56 |
||
|
76376R
|
76376R
MR779955 COVER, 2ND SEAT HINGE, RH |
MR779955 |
US $32.56 |
||
|
76396B
|
76396B
MB850058 BUSHING, FR SEAT |
MB850058 |
US $2.96 |
||
|
76396C
|
76396C
MB873679 BUSHING, RR SEAT |
MB873679 |
US $4.59 |
||
|
76398
|
76398
MR635874 CAP, FR SEAT |
MR635874 |
US $3.55 |
||
|
76398
|
76398
MR779840 CAP, FR SEAT |
MR779840 |
US $3.55 |
||
|
76442
|
76442
MR635955 CLIP, FR SEAT |
MR635955 |
US $3.55 |
||
|
76442
|
76442
MR781536 CLIP, RR SEAT |
MR781536 |
US $3.55 |
||
|
76442B
|
76442B
MR378276 CLIP, 2ND SEAT |
MR378276 |
US $3.55 |
||
|
76442C
|
76442C
MR347892 CLIP, 2ND SEAT |
MR347892 |
US $3.55 |
||
|
76446L
|
76446L
MR635959 COVER, RR SEAT RECLINING ADJUSTER, UPR INR LH |
MR635959 |
US $6.51 |
||
|
76446L
|
76446L
MR781538 COVER, RR SEAT RECLINING ADJUSTER, UPR INR LH |
MR781538 |
US $6.51 |
||
|
76446R
|
76446R
MR635960 COVER, RR SEAT RECLINING ADJUSTER, UPR INR RH |
MR635960 |
US $6.51 |
||
|
76446R
|
76446R
MR781540 COVER, RR SEAT RECLINING ADJUSTER, UPR INR RH |
MR781540 |
US $7.84 |
||
|
76447L
|
76447L
MR635946 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635946 |
US $38.48 |
||
|
76447L
|
76447L
MR779935 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779935 |
US $38.48 |
||
|
76447R
|
76447R
MR635947 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635947 |
US $38.48 |
||
|
76447R
|
76447R
MR779937 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779937 |
US $38.48 |
||
|
76448L
|
76448L
MR635948 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635948 |
US $24.42 |
||
|
76448L
|
76448L
MR779939 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779939 |
US $24.42 |
||
|
76448R
|
76448R
MR635949 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635949 |
US $24.42 |
||
|
76448R
|
76448R
MR779941 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779941 |
US $24.42 |
||
|
76449L
|
76449L
MR635961 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635961 |
US $24.42 |
||
|
76449L
|
76449L
MR781542 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR781542 |
US $24.42 |
||
|
76449R
|
76449R
MR635962 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635962 |
US $24.42 |
||
|
76449R
|
76449R
MR781544 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR781544 |
US $24.42 |
||
|
76451L
|
76451L
MR635953 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635953 |
US $44.40 |
||
|
76451L
|
76451L
MR779949 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779949 |
US $44.40 |
||
|
76451R
|
76451R
MR635954 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR635954 |
US $44.40 |
||
|
76451R
|
76451R
MR779951 COVER, 2ND SEAT SLIDE ADJUSTER, INR |
MR779951 |
US $44.40 |
