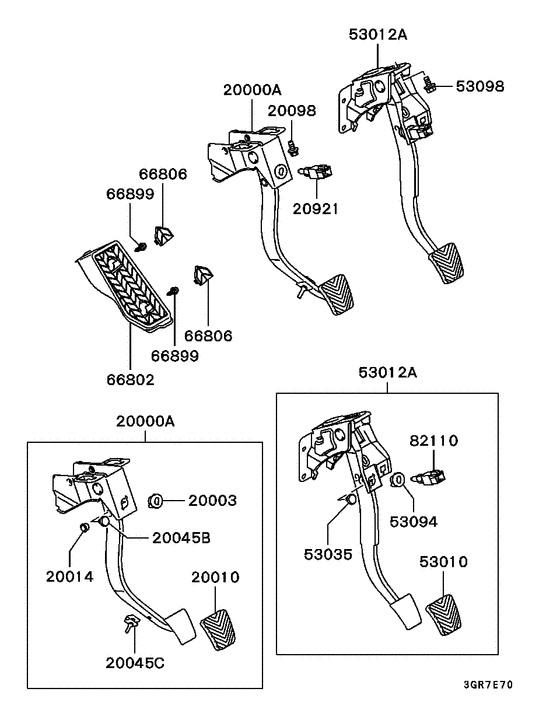

Brake & clutch pedal (RHD..M/T(-0005.3)) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2002
- Sales region
- EUR
- Note
- GLX(7PERSONS),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20000A
|
20000A
MR449598
PEDAL ASSY,CLUTCH
|
MR449598 |
— | ||
|
20000A
|
20000A
MR475425
PEDAL ASSY,CLUTCH
|
MR475425 |
— | ||
|
20000A
|
20000A
MR475426
PEDAL ASSY,CLUTCH
|
MR475426 |
— | ||
|
20003
|
20003
MR172162 CLIP, BRAKE PEDAL |
MR172162 |
from US $2.15 |
||
|
20010
|
20010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
20014
|
20014
MB555171 BUSHING, CLUTCH PEDAL10x8 |
MB555171 |
from US $3.53 |
||
|
20045B
|
20045B
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
20045C
|
20045C
MB599166 STOPPER, CLUTCH PEDAL |
MB599166 |
from US $1.46 |
||
|
20098
|
20098
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
20921
|
20921
MB435457 SWITCH, STOP LAMP |
MB435457 |
from US $11.21 |
||
|
20921
|
20921
MR228924 SWITCH, STOP LAMP |
MR228924 |
from US $14.08 |
||
|
53010
|
53010
MB193884 PAD, BRAKE PEDAL62x58-40 |
MB193884 |
from US $3.26 |
||
|
53012A
|
53012A
MR307851 PEDAL ASSY, BRAKE |
MR307851 |
US $79.92 |
||
|
53035
|
53035
MR235515 STOPPER, CLUTCH PEDAL |
MR235515 |
US $4.65 |
||
|
53094
|
53094
MR172162 CLIP, BRAKE PEDAL |
MR172162 |
from US $2.15 |
||
|
53098
|
53098
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
66802
|
66802
MR283709 FOOTREST |
MR283709 |
US $39.96 |
||
|
66802
|
66802
MR330714
FOOTREST
|
MR330714 |
— | ||
|
66806
|
66806
MB667967 CLIP, FOOTREST |
MB667967 |
US $3.85 |
||
|
66899
|
66899
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
|
66899
|
66899
MS241161 BOLT, FOOTRESTWasher assembled,6x16 |
MS241161 |
US $1.63 |
||
|
82110
|
82110
MR228924 SWITCH, STOP LAMP |
MR228924 |
from US $14.08 |
