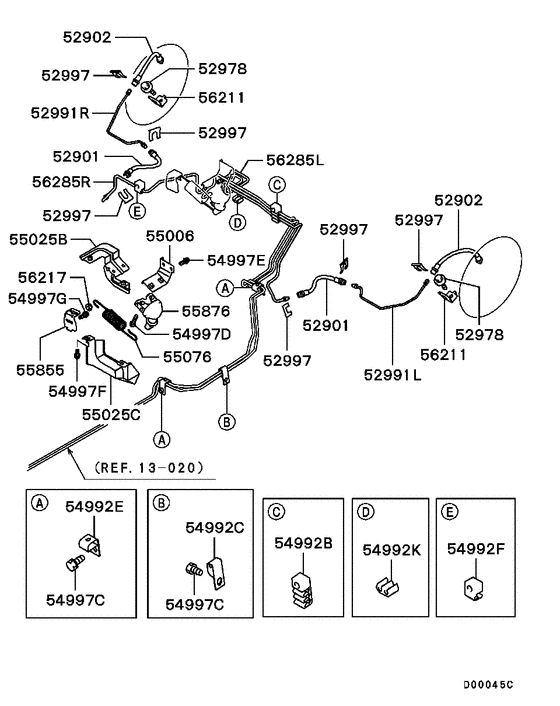

Brake line (REAR..LSPV(DRUM IN DISC)) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2002
- Sales region
- EUR
- Note
- GLX(7PERSONS),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52901
|
52901
MR289286 HOSE, RR BRAKE BODY SIDE218 |
MR289286 |
US $11.84 |
||
|
52902
|
52902
MR289287 HOSE, RR BRAKE WHEEL SIDE240 |
MR289287 |
US $21.46 |
||
|
52978
|
52978
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
52991L
|
52991L
MR289282 TUBE, RR AXLE BRAKE, LH |
MR289282 |
US $7.84 |
||
|
52991R
|
52991R
MR289283 TUBE, RR AXLE BRAKE, RH |
MR289283 |
US $7.84 |
||
|
52997
|
52997
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992B
|
54992B
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
54992B
|
54992B
MR249620 CLIP, BRAKE FLUID LINE |
MR249620 |
US $3.11 |
||
|
54992C
|
54992C
MB329398
CLIP, BRAKE FLUID LINE
|
MB329398 |
— | ||
| replacement | |||||
|
54992C
|
54992C
MB151280 CLIP, FUEL RETURN LINE8,10 |
MB151280 |
US $2.74 |
||
|
54992E
|
54992E
MB618778 CLIP, BRAKE FLUID LINE |
MB618778 |
US $12.14 |
||
|
54992F
|
54992F
MR249619 CLIP, CLUTCH M/CYL |
MR249619 |
US $2.52 |
||
|
54992K
|
54992K
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
54997C
|
54997C
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
54997D
|
54997D
MF240059 BOLT, CYLINDER HEADWasher assembled,8x35 |
MF240059 |
from US $1.29 |
||
|
54997E
|
54997E
MS240085 BOLT, ENG OIL LINEWasher assembled,8x20 |
MS240085 |
from US $1.07 |
||
|
54997F
|
54997F
MF240049 BOLT, ENG BREATHERWasher assembled,8x12 |
MF240049 |
from US $1.01 |
||
|
54997G
|
54997G
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
55006
|
55006
MR390283
BRACKET,LOAD SENSING VALVE
|
MR390283 |
— | ||
|
55025B
|
55025B
MR475348 COVER,LOAD SENSING VALVE |
MR475348 |
US $58.46 |
||
|
55025C
|
55025C
MR475349 COVER,LOAD SENSING VALVE |
MR475349 |
US $58.46 |
||
|
55076
|
55076
MR390284
SPRING,LOAD SENSING VALVE PISTON
|
MR390284 |
— | ||
|
55855
|
55855
MR390429
SUPPORT,BRAKE FLUID PROPORTIONING VALVE HOLD SPRING
|
MR390429 |
— | ||
|
55876
|
55876
MR449406
VALVE,BRAKE FLUID PROPORTIONING
|
MR449406 |
— | ||
|
56211
|
56211
MR307995 BRACKET, RR BRAKE HOSE |
MR307995 |
US $4 |
||
|
56217
|
56217
MB277073 HOLDER, BRAKE LINE SPRING |
MB277073 |
US $7.11 |
||
|
56285L
|
56285L
MR390291
TUBE,RR BRAKE,LH
|
MR390291 |
— | ||
|
56285R
|
56285R
MR390292
TUBE,RR BRAKE,RH
|
MR390292 |
— | ||
|
