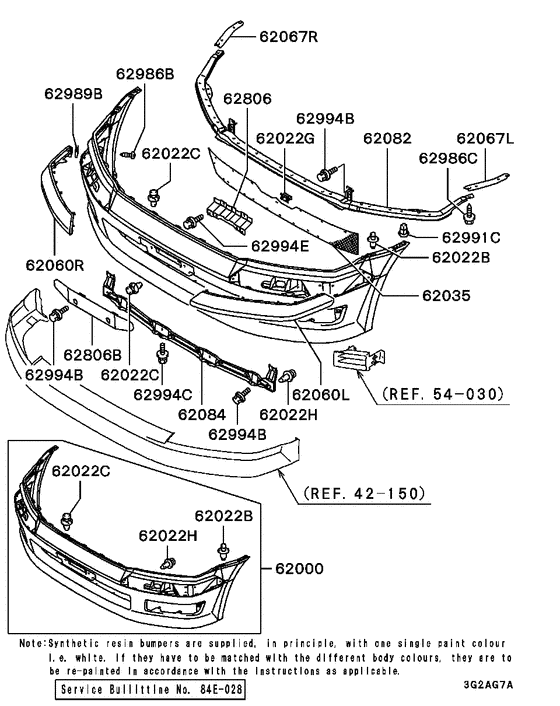

Front bumper & support Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2002
- Sales region
- EUR
- Note
- GLX(7PERSONS),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62000
|
62000
MR392853 FACE KIT, FR BUMPER |
MR392853 |
US $741.10 |
||
|
62000
|
62000
MR392855 FACE KIT, FR BUMPER |
MR392855 |
US $741.10 |
||
|
62000
|
62000
MR392856 FACE KIT, FR BUMPER |
MR392856 |
US $741.10 |
||
|
62000
|
62000
MR392857 FACE KIT, FR BUMPER |
MR392857 |
US $741.10 |
||
|
62000
|
62000
MR476069 FACE KIT, FR BUMPER |
MR476069 |
US $741.10 |
||
|
62000
|
62000
MR476076 FACE KIT, FR BUMPER |
MR476076 |
US $741.10 |
||
|
62000
|
62000
MR476333 FACE KIT, FR BUMPER |
MR476333 |
US $741.10 |
||
|
62000
|
62000
MR566848 FACE KIT, FR BUMPER |
MR566848 |
US $741.10 |
||
|
62000
|
62000
MR972943 FACE KIT,FR BUMPER |
MR972943 |
US $741.10 |
||
|
62000
|
62000
MR972945 FACE KIT,FR BUMPER |
MR972945 |
US $741.10 |
||
|
62000
|
62000
MR972947 FACE KIT,FR BUMPER |
MR972947 |
US $741.10 |
||
|
62022B
|
62022B
MB692976 CLIP, HEATER DUCT |
MB692976 |
US $2.81 |
||
|
62022C
|
62022C
MR220501 CLIP, SPLASH SHIELD8 |
MR220501 |
from US $1.46 |
||
|
62022G
|
62022G
MR447202 CLIP, FR BUMPER |
MR447202 |
from US $1.95 |
||
|
62022H
|
62022H
MR328954 CLIP, SPLASH SHIELD8x22 |
MR328954 |
from US $1.38 |
||
|
62035
|
62035
MR384440 NET, FR BUMPER |
MR384440 |
US $54.76 |
||
|
62060L
|
62060L
MR786657 GARNISH, FR BUMPER CORNER, LH |
MR786657 |
US $85.84 |
||
|
62060L
|
62060L
MR786658 GARNISH, FR BUMPER CORNER, LH |
MR786658 |
US $85.84 |
||
|
62060R
|
62060R
MR786660 GARNISH, FR BUMPER CORNER, RH |
MR786660 |
US $85.84 |
||
|
62060R
|
62060R
MR786661 GARNISH, FR BUMPER CORNER, RH |
MR786661 |
US $107.39 |
||
|
62067L
|
62067L
MR375555 PLATE, FR BUMPER SIDE, LH |
MR375555 |
US $6.36 |
||
|
62067R
|
62067R
MR375556 PLATE, FR BUMPER SIDE, RH |
MR375556 |
US $6.36 |
||
|
62082
|
62082
MR295523 SUPPORT, FR BUMPER, UPR |
MR295523 |
US $120.62 |
||
|
62084
|
62084
MR328369 BRACKET, FR BUMPER, LWR |
MR328369 |
US $91.66 |
||
|
62806
|
62806
MR375477 BRACKET, FR LICENSE PLATE |
MR375477 |
US $34.78 |
||
|
62806B
|
62806B
MR435999
BRACKET,FR LICENSE PLATE
|
MR435999 |
— | ||
|
62986B
|
62986B
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
62986C
|
62986C
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.34 |
||
|
62986C
|
62986C
MS452357 SCREW, FR BUMPERTapping washer assembled,6x20 |
MS452357 |
from US $2.75 |
||
|
62989B
|
62989B
MR384276 NUT, FR BUMPERSpring,5 |
MR384276 |
US $1.78 |
||
|
62991C
|
62991C
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.78 |
||
|
62994B
|
62994B
MS240581 BOLT, BRAKE FLUID LINEWasher assembled,6x16 |
MS240581 |
US $2.60 |
||
|
62994C
|
62994C
MS240155 BOLT, WINDSHIELDWasher assembled,6x16 |
MS240155 |
from US $0.99 |
||
|
62994C
|
62994C
MS240601 BOLT, AIR CLEANERWasher assembled,6x16 |
MS240601 |
from US $1.38 |
||
|
62994E
|
62994E
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
62994E
|
62994E
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
