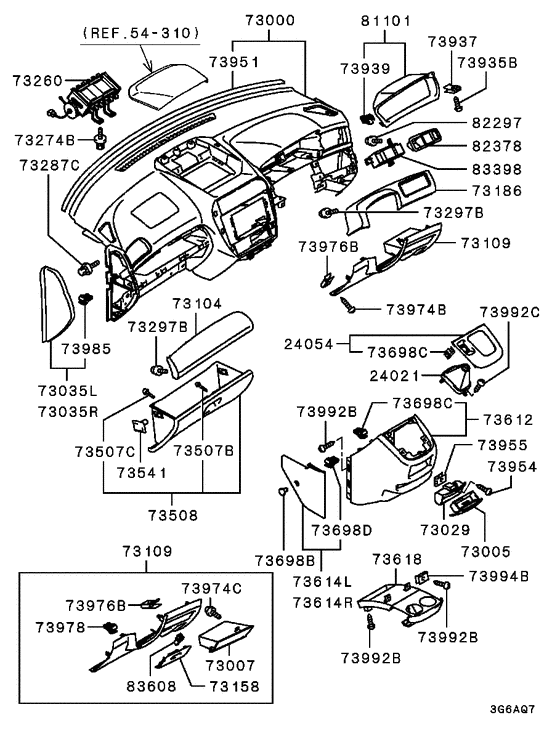

I/panel & related parts (RHD..I/PANEL PAD,GLOVEBOX,ETC.) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2002
- Sales region
- EUR
- Note
- GLX(7PERSONS),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24021
|
24021
MR779540 COVER, GEARSHIFT LEVER |
MR779540 |
US $85.10 |
||
|
24054
|
24054
MR779543
PANEL, GEARSHIFT LEVER
|
MR779543 |
— | ||
|
73000
|
73000
MR637960
PANEL,INSTRUMENT
|
MR637960 |
— | ||
|
73000
|
73000
MR790771
PANEL,INSTRUMENT
|
MR790771 |
— | ||
|
73005
|
73005
MR406807 ASHTRAY, INSTRUMENT PANEL |
MR406807 |
US $51.06 |
||
|
73005
|
73005
MR604194 ASHTRAY, INSTRUMENT PANEL |
MR604194 |
US $51.06 |
||
|
73007
|
73007
MR406241 BOX, INSTRUMENT PANEL PARCEL |
MR406241 |
US $39.22 |
||
|
73007
|
73007
MR406242
BOX,INSTRUMENT PANEL PARCEL
|
MR406242 |
— | ||
|
73029
|
73029
MR406803 COVER, INSTRUMENT PANEL ASHTRAY |
MR406803 |
US $22.20 |
||
|
73029
|
73029
MR604193 COVER, INSTRUMENT PANEL ASHTRAY |
MR604193 |
US $22.20 |
||
|
73035L
|
73035L
MR635851 COVER, INSTRUMENT PANEL SIDE, LH |
MR635851 |
US $30.34 |
||
|
73035L
|
73035L
MR779516 COVER, INSTRUMENT PANEL SIDE, LH |
MR779516 |
US $30.34 |
||
|
73035R
|
73035R
MR635852 COVER, INSTRUMENT PANEL SIDE, RH |
MR635852 |
US $30.34 |
||
|
73035R
|
73035R
MR779518 COVER, INSTRUMENT PANEL SIDE, RH |
MR779518 |
US $30.34 |
||
|
73104
|
73104
MR637978
TRIM,INSTRUMENT PANEL
|
MR637978 |
— | ||
|
73104
|
73104
MR637979
TRIM,INSTRUMENT PANEL
|
MR637979 |
— | ||
|
73104
|
73104
MR790230
TRIM,INSTRUMENT PANEL
|
MR790230 |
— | ||
|
73109
|
73109
MR635853 PANEL, INSTRUMENT, LWR |
MR635853 |
US $119.14 |
||
|
73109
|
73109
MR637974
PANEL,INSTRUMENT,LWR
|
MR637974 |
— | ||
|
73109
|
73109
MR779520 PANEL, INSTRUMENT, LWR |
MR779520 |
US $119.14 |
||
|
73158
|
73158
MR406256 LID, INSTRUMENT PANEL PARCEL BOX |
MR406256 |
US $9.03 |
||
|
73158
|
73158
MR635854 LID, INSTRUMENT PANEL PARCEL BOX |
MR635854 |
US $9.03 |
||
|
73158
|
73158
MR637975
LID,INSTRUMENT PANEL PARCEL BOX
|
MR637975 |
— | ||
|
73186
|
73186
MR635857 PANEL, INSTRUMENT DRIVER SIDE |
MR635857 |
US $67.34 |
||
|
73186
|
73186
MR637977
PANEL,INSTRUMENT DRIVER SIDE
|
MR637977 |
— | ||
|
73186
|
73186
MR779530 PANEL, INSTRUMENT DRIVER SIDE |
MR779530 |
US $67.34 |
||
|
73287C
|
73287C
MS240027 BOLT, ENG CONTROL EQUIPWasher assembled,5x16 |
MS240027 |
US $1.92 |
||
|
73297B
|
73297B
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
73507B
|
73507B
MB424790 CUSHION, GLOVEBOX |
MB424790 |
US $2.66 |
||
|
73507C
|
73507C
MR147231 CUSHION, GLOVEBOX |
MR147231 |
US $2.96 |
||
|
73508
|
73508
MR635850 GLOVEBOX |
MR635850 |
US $216.08 |
||
|
73508
|
73508
MR779514 GLOVEBOX |
MR779514 |
US $216.08 |
||
|
73541
|
73541
MB326033 STOPPER, GLOVEBOX |
MB326033 |
from US $1.89 |
||
|
73612
|
73612
MR635858 CONSOLE, INSTRUMENT PANEL, CTR |
MR635858 |
US $137.64 |
||
|
73612
|
73612
MR779536 CONSOLE, INSTRUMENT PANEL, CTR |
MR779536 |
US $137.64 |
||
|
73614L
|
73614L
MR635860 COVER, INSTRUMENT PANEL CONSOLE SIDE, LH |
MR635860 |
US $27.38 |
||
|
73614L
|
73614L
MR637982
COVER,INSTRUMENT PANEL CONSOLE SIDE,LH
|
MR637982 |
— | ||
|
73614L
|
73614L
MR779544 COVER, INSTRUMENT PANEL CONSOLE SIDE, LH |
MR779544 |
US $27.38 |
||
|
73614R
|
73614R
MR635861 COVER, INSTRUMENT PANEL CONSOLE SIDE, RH |
MR635861 |
US $27.38 |
||
|
73614R
|
73614R
MR637983
COVER,INSTRUMENT PANEL CONSOLE SIDE,RH
|
MR637983 |
— | ||
|
73614R
|
73614R
MR797256 COVER, INSTRUMENT PANEL CONSOLE SIDE, RH |
MR797256 |
US $27.38 |
||
|
73618
|
73618
MR635859 HOLDER, INSTRUMENT PANEL CONSOLE CUP |
MR635859 |
US $95.46 |
||
|
73618
|
73618
MR779538 HOLDER, INSTRUMENT PANEL CONSOLE CUP |
MR779538 |
US $95.46 |
||
|
73698B
|
73698B
MR726710 CLIP, 3RD SEAT |
MR726710 |
US $3.40 |
||
|
73698B
|
73698B
MR789152 CLIP, RR SEAT |
MR789152 |
US $2.60 |
||
|
73698C
|
73698C
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
US $2.19 |
||
|
73698C
|
73698C
MR480469 CLIP, GLOVEBOX |
MR480469 |
from US $1.56 |
||
|
73698D
|
73698D
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
US $2.19 |
||
|
73698D
|
73698D
MR480469 CLIP, GLOVEBOX |
MR480469 |
from US $1.56 |
||
|
73935B
|
73935B
MF453687 SCREW, INSTRUMENT PANELTapping,5x16 |
MF453687 |
from US $1.40 |
||
|
73935B
|
73935B
MF453807 SCREW, HEATER DUCTTapping,5x16 |
MF453807 |
US $1.04 |
||
|
73937
|
73937
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
73939
|
73939
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
US $2.19 |
||
|
73939
|
73939
MR480469 CLIP, GLOVEBOX |
MR480469 |
from US $1.56 |
||
|
73951
|
73951
MR471818 PAD, INSTRUMENT PANEL |
MR471818 |
US $5.18 |
||
|
73954
|
73954
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
73954
|
73954
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
73955
|
73955
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
73974B
|
73974B
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
73974B
|
73974B
MF453273 SCREW, SCUFF PLATETapping,5x16 |
MF453273 |
from US $1.54 |
||
|
73974C
|
73974C
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
73976B
|
73976B
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
73978
|
73978
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
US $2.19 |
||
|
73978
|
73978
MR480469 CLIP, GLOVEBOX |
MR480469 |
from US $1.56 |
||
|
73985
|
73985
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
US $2.19 |
||
|
73985
|
73985
MR480469 CLIP, GLOVEBOX |
MR480469 |
from US $1.56 |
||
|
73992B
|
73992B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
73992C
|
73992C
MB409436 SCREW, STEERING COLUMN COVERTapping,4x12 |
MB409436 |
US $4.10 |
||
|
73994B
|
73994B
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.50 |
||
|
81101
|
81101
MR346628
BEZEL,COMBINATION METER
|
MR346628 |
— | ||
|
81101
|
81101
MR346629 BEZEL, COMBINATION METER |
MR346629 |
US $87.32 |
||
|
82297
|
82297
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
82378
|
82378
MR635845 PANEL, INSTRUMENT PANEL SWITCH |
MR635845 |
US $15.54 |
||
|
82378
|
82378
MR637967
PANEL,INSTRUMENT PANEL SWITCH
|
MR637967 |
— | ||
|
82378
|
82378
MR782155 PANEL, INSTRUMENT PANEL SWITCH |
MR782155 |
US $15.54 |
||
|
83398
|
83398
MR343011
HOLDER,INSTRUMENT PANEL WIRING
|
MR343011 |
— | ||
|
83398
|
83398
MR343012 HOLDER, INSTRUMENT PANEL WIRING |
MR343012 |
US $27.38 |
||
|
83608
|
83608
MR172647 PULLER, FUSE |
MR172647 |
US $7.25 |
||
|
