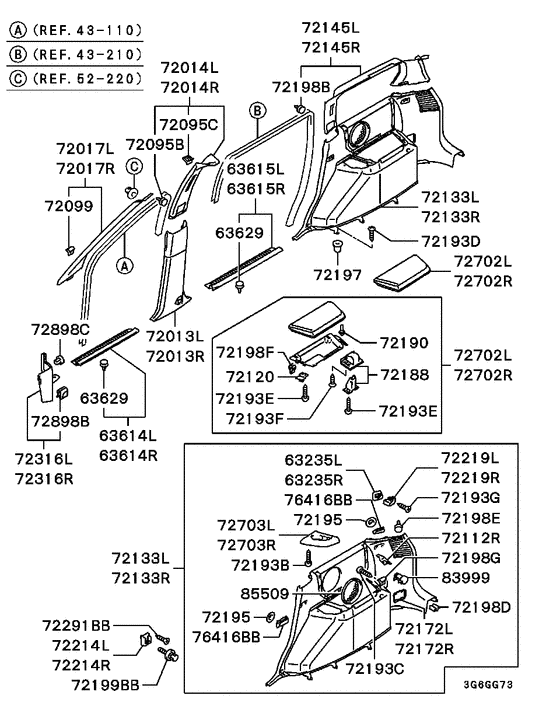

Interior trim Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2002
- Sales region
- EUR
- Note
- GLX(7PERSONS),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63614L
|
63614L
MR635834 SCUFF PLATE, FR LH |
MR635834 |
US $27.38 |
||
|
63614L
|
63614L
MR779676 SCUFF PLATE, FR LH |
MR779676 |
US $27.38 |
||
|
63614R
|
63614R
MR635835 SCUFF PLATE, FR RH |
MR635835 |
US $27.38 |
||
|
63614R
|
63614R
MR779678 SCUFF PLATE, FR RH |
MR779678 |
US $27.38 |
||
|
63615L
|
63615L
MR635836 SCUFF PLATE, RR LH |
MR635836 |
US $30.34 |
||
|
63615L
|
63615L
MR779680 SCUFF PLATE, RR LH |
MR779680 |
US $30.34 |
||
|
63615R
|
63615R
MR635837 SCUFF PLATE, RR RH |
MR635837 |
US $30.34 |
||
|
63615R
|
63615R
MR779682 SCUFF PLATE, RR RH |
MR779682 |
US $30.34 |
||
|
63629
|
63629
MR181745 CLIP, SIDE AIR DAM8.2x13 |
MR181745 |
from US $2.07 |
||
|
72013L
|
72013L
MR298073 TRIM, CTR PILLAR, LWR LH |
MR298073 |
US $100.64 |
||
|
72013L
|
72013L
MR637941
TRIM,CTR PILLAR,LWR LH
|
MR637941 |
— | ||
|
72013R
|
72013R
MR298074 TRIM, CTR PILLAR, LWR RH |
MR298074 |
US $110.26 |
||
|
72013R
|
72013R
MR631733 TRIM, CTR PILLAR, LWR RH |
MR631733 |
US $84.36 |
||
|
72013R
|
72013R
MR637942
TRIM,CTR PILLAR,LWR RH
|
MR637942 |
— | ||
|
72014L
|
72014L
MR298071 TRIM, CTR PILLAR, UPR LH |
MR298071 |
US $60.68 |
||
|
72014L
|
72014L
MR559643
TRIM,CTR PILLAR,UPR LH
|
MR559643 |
— | ||
|
72014L
|
72014L
MR996935HA
TRIM,CTR PILLAR,UPR LH
|
MR996935HA |
— | ||
|
72014R
|
72014R
MR298072 TRIM, CTR PILLAR, UPR RH |
MR298072 |
US $60.68 |
||
|
72014R
|
72014R
MR559644
TRIM,CTR PILLAR,UPR RH
|
MR559644 |
— | ||
|
72014R
|
72014R
MR996936HA
TRIM,CTR PILLAR,UPR RH
|
MR996936HA |
— | ||
|
72017L
|
72017L
MR559641 TRIM, FR PILLAR, LH |
MR559641 |
US $71.78 |
||
|
72017L
|
72017L
MR779599 TRIM, FR PILLAR, LH |
MR779599 |
US $91.76 |
||
|
72017L
|
72017L
MR996933HA TRIM, FR PILLAR, LH |
MR996933HA |
US $87.32 |
||
|
72017R
|
72017R
MR559642 TRIM, FR PILLAR, RH |
MR559642 |
US $71.78 |
||
|
72017R
|
72017R
MR779601 TRIM, FR PILLAR, RH |
MR779601 |
US $91.76 |
||
|
72017R
|
72017R
MR996934HA TRIM, FR PILLAR, RH |
MR996934HA |
US $87.32 |
||
|
72095B
|
72095B
MU481245 CLIP, GATE PILLAR TRIM18x13.2 |
MU481245 |
from US $1.87 |
||
|
72099
|
72099
MU470013 CLIP, TAILGATE TRIM |
MU470013 |
from US $0.84 |
||
|
72112R
|
72112R
MR390785 COVER, QTR TRIM, RH |
MR390785 |
US $2.66 |
||
|
72112R
|
72112R
MR635814 COVER, QTR TRIM, RH |
MR635814 |
US $2.37 |
||
|
72120
|
72120
MR366177 LOCK, QTR LWR TRIM LID |
MR366177 |
US $7.25 |
||
|
72133L
|
72133L
MR626299
TRIM,QTR,LWR LH
|
MR626299 |
— | ||
|
72133L
|
72133L
MR637945
TRIM,QTR,LWR LH
|
MR637945 |
— | ||
|
72133L
|
72133L
MR790745
TRIM,QTR,LWR LH
|
MR790745 |
— | ||
|
72133R
|
72133R
MR626300
TRIM,QTR,LWR RH
|
MR626300 |
— | ||
|
72133R
|
72133R
MR637946
TRIM,QTR,LWR RH
|
MR637946 |
— | ||
|
72133R
|
72133R
MR790746
TRIM,QTR,LWR RH
|
MR790746 |
— | ||
|
72145L
|
72145L
MR559511 TRIM, QTR, UPR LH |
MR559511 |
US $167.24 |
||
|
72145L
|
72145L
MR779620 TRIM, QTR, UPR LH |
MR779620 |
US $213.12 |
||
|
72145L
|
72145L
MR996939HA TRIM, QTR, UPR LH |
MR996939HA |
US $202.76 |
||
|
72145R
|
72145R
MR559512 TRIM, QTR, UPR RH |
MR559512 |
US $167.24 |
||
|
72145R
|
72145R
MR779622 TRIM, QTR, UPR RH |
MR779622 |
US $213.12 |
||
|
72145R
|
72145R
MR996940HA TRIM, QTR, UPR RH |
MR996940HA |
US $202.76 |
||
|
72172L
|
72172L
MR390787 LID, QTR TRIM, LH |
MR390787 |
US $6.22 |
||
|
72172L
|
72172L
MR635815 LID, QTR TRIM, LH |
MR635815 |
US $6.22 |
||
|
72172R
|
72172R
MR390789 LID, QTR TRIM, RH |
MR390789 |
US $6.22 |
||
|
72172R
|
72172R
MR635816 LID, QTR TRIM, RH |
MR635816 |
US $6.22 |
||
|
72188
|
72188
MR366175 HINGE, QTR TRIM BOX |
MR366175 |
US $6.96 |
||
|
72190
|
72190
MB604673 CUSHION, FLOOR CONSOLE |
MB604673 |
US $4.24 |
||
|
72193B
|
72193B
MB107346 SCREW, CTR PILLAR VENTILATIONTapping,5x12 |
MB107346 |
US $2.37 |
||
|
72193B
|
72193B
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
72193C
|
72193C
MF453003 SCREW, INSTRUMENT PANEL SWITCHTapping,3x8 |
MF453003 |
US $1.18 |
||
|
72193C
|
72193C
MS450923 SCREW, STEERING WHEELTapping,3x8 |
MS450923 |
US $2.07 |
||
|
72193D
|
72193D
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
72193E
|
72193E
MF453016 SCREW, GEARSHIFT LINKTapping,4x10 |
MF453016 |
US $2.74 |
||
|
72193F
|
72193F
MF453672 SCREW, RR DOOR WINDOWTapping,4x10 |
MF453672 |
US $2.60 |
||
|
72193G
|
72193G
MF453687 SCREW, INSTRUMENT PANELTapping,5x16 |
MF453687 |
from US $1.40 |
||
|
72195
|
72195
MS440054 NUT, FR SEATPush-on spring,5 |
MS440054 |
from US $0.57 |
||
|
72197
|
72197
MU480034 GROMMET, ABS CONTROL EQUIPScrew,5 |
MU480034 |
from US $1.01 |
||
|
72198B
|
72198B
MR435918 CLIP, SIDE AIR DAM |
MR435918 |
from US $1.35 |
||
|
72198B
|
72198B
MU481245 CLIP, GATE PILLAR TRIM18x13.2 |
MU481245 |
from US $1.87 |
||
|
72198D
|
72198D
MB128951 CLIP, CTR PILLAR TRIM |
MB128951 |
from US $1.60 |
||
|
72198E
|
72198E
MU481245 CLIP, GATE PILLAR TRIM18x13.2 |
MU481245 |
from US $1.87 |
||
|
72198F
|
72198F
MB652510 CLIP, INSTRUMENT PANEL PAD |
MB652510 |
US $2.19 |
||
|
72198G
|
72198G
MR417310 CLIP, QTR TRIM |
MR417310 |
US $3.26 |
||
|
72199BB
|
72199BB
MS240402 BOLT, RADIATOR GRILLEWasher assembled,6x20 |
MS240402 |
US $3.01 |
||
|
72199BB
|
72199BB
MS240582 BOLT, ENG WIRINGWasher assembled,6x20 |
MS240582 |
US $2.46 |
||
|
72291BB
|
72291BB
MF453092 SCREW, HEATER CONTROL PANELTapping,5x14 |
MF453092 |
from US $1.40 |
||
|
72291BB
|
72291BB
MF453272 SCREW, RR SHELF TRIM(5x14) |
MF453272 |
US $1.64 |
||
|
72316L
|
72316L
MR635811 TRIM, COWL SIDE, LH |
MR635811 |
US $39.96 |
||
|
72316L
|
72316L
MR779595 TRIM, COWL SIDE, LH |
MR779595 |
US $39.96 |
||
|
72316R
|
72316R
MR635812 TRIM, COWL SIDE, RH |
MR635812 |
US $30.34 |
||
|
72316R
|
72316R
MR779597 TRIM, COWL SIDE, RH |
MR779597 |
US $30.34 |
||
|
72702L
|
72702L
MR626309
BOX,QTR ARMREST,LH
|
MR626309 |
— | ||
|
72702L
|
72702L
MR637984
BOX,QTR ARMREST,LH
|
MR637984 |
— | ||
|
72702L
|
72702L
MR790792
BOX,QTR ARMREST,LH
|
MR790792 |
— | ||
|
72702R
|
72702R
MR626310
BOX,QTR ARMREST,RH
|
MR626310 |
— | ||
|
72702R
|
72702R
MR637985
BOX,QTR ARMREST,RH
|
MR637985 |
— | ||
|
72702R
|
72702R
MR790793
BOX,QTR ARMREST,RH
|
MR790793 |
— | ||
|
72703L
|
72703L
MR635817 HOLDER, QTR ARMREST CUP, LH |
MR635817 |
US $13.32 |
||
|
72703L
|
72703L
MR779624 HOLDER, QTR ARMREST CUP, LH |
MR779624 |
US $13.32 |
||
|
72703R
|
72703R
MR635818 HOLDER, QTR ARMREST CUP, RH |
MR635818 |
US $13.32 |
||
|
72703R
|
72703R
MR779626 HOLDER, QTR ARMREST CUP, RH |
MR779626 |
US $13.32 |
||
|
72898B
|
72898B
MR366513 CLIP, FLOOR TRIM |
MR366513 |
US $3.83 |
||
|
72898C
|
72898C
MR116060 CAP, RR END TRIM |
MR116060 |
US $4.10 |
||
|
72898C
|
72898C
MR201972 CLIP, RR END TRIM |
MR201972 |
from US $1.23 |
||
|
76416BB
|
76416BB
MR444742 CLIP, QTR TRIM |
MR444742 |
US $3.56 |
||
|
76416BB
|
76416BB
MR512640 CLIP, QTR TRIM |
MR512640 |
US $3.69 |
||
|
83999
|
83999
MB898522 SOCKET, ACCESSORY |
MB898522 |
US $51.06 |
||
|
85509
|
85509
MR635821 GARNISH, QTR SPEAKER |
MR635821 |
US $32.56 |
||
|
85509
|
85509
MR779636 GARNISH, QTR SPEAKER |
MR779636 |
US $32.56 |
||
|
