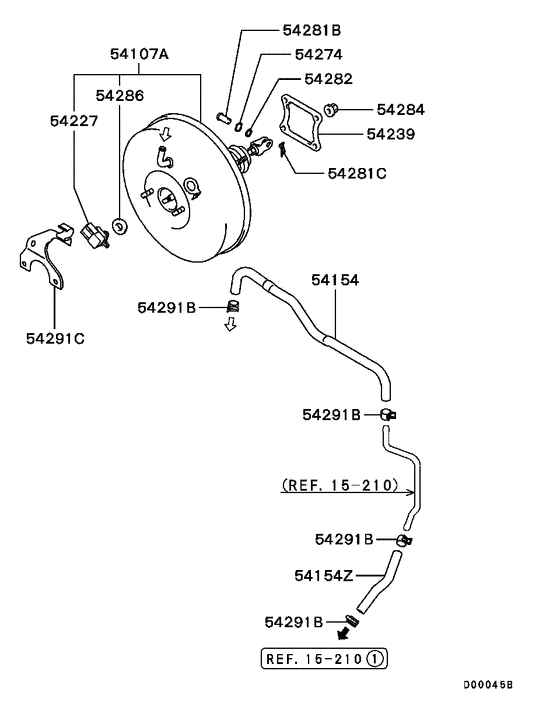

Power brake booster (RHD..DOHC(0006.1-)) Diagram Mitsubishi SPACE WAGON
- Year
- 1998 - 2002
- Sales region
- EUR
- Note
- GLX(7PERSONS),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- GLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54107A
|
54107A
MR475342
BOOSTER ASSY,BRAKE
|
MR475342 |
— | ||
|
54107A
|
54107A
MR475508
BOOSTER ASSY,BRAKE
|
MR475508 |
— | ||
|
54154
|
54154
MR370225 HOSE, BRAKE BOOSTER VACUUMRubber |
MR370225 |
US $37.74 |
||
|
54154
|
54154
MR510994 HOSE, BRAKE BOOSTER VACUUMRubber |
MR510994 |
US $34.78 |
||
|
54154
|
54154
MR527680
HOSE,BRAKE BOOSTER VACUUM
|
MR527680 |
— | ||
|
54154Z
|
54154Z
MR407358 HOSE, BRAKE BOOSTER VACUUMRubber |
MR407358 |
US $7.40 |
||
|
54154Z
|
54154Z
MR510561 HOSE, BRAKE BOOSTER VACUUMRubber |
MR510561 |
US $15.54 |
||
|
54154Z
|
54154Z
MR510623 HOSE, BRAKE BOOSTER VACUUMRubber |
MR510623 |
US $19.24 |
||
|
54227
|
54227
MD310129 SENSOR, ENG CONTROL BOOST |
MD310129 |
US $206.57 |
||
|
54227
|
54227
MR449066 SENSOR, BRAKE BOOSTER VACUUM |
MR449066 |
US $205.72 |
||
|
54239
|
54239
MB238089
SEAL, BRAKE BOOSTER BODY
|
MB238089 |
— | ||
| replacement | |||||
|
54239
|
54239
MB928711 SEAL, BRAKE BOOSTER BODY |
MB928711 |
from US $3.26 |
||
|
54274
|
54274
MF451105 WASHER, BACK DOOR LOCKINGWave,10 |
MF451105 |
US $2.74 |
||
|
54281B
|
54281B
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
54281C
|
54281C
MB858800 PIN, BRAKE BOOSTERSnap,10 |
MB858800 |
from US $1.13 |
||
|
54282
|
54282
MF520006 O-RING, ENG OIL FILLER10.1 |
MF520006 |
from US $0.96 |
||
|
54284
|
54284
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54286
|
54286
MR493042 GROMMET, BRAKE BOOSTER INR |
MR493042 |
US $6.36 |
||
|
54291B
|
54291B
MB058828 CLIP, BRAKE BOOSTER16 |
MB058828 |
from US $1.07 |
||
|
54291B
|
54291B
MB058859 CLIP, BRAKE BOOSTER15 |
MB058859 |
US $3.83 |
||
|
54291C
|
54291C
MR289219 CLIP, BRAKE BOOSTER |
MR289219 |
US $4.59 |
||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
