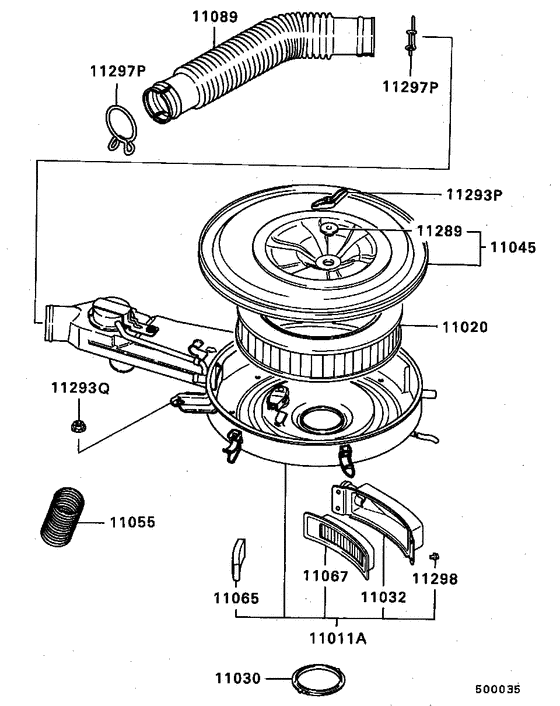

Air cleaner (ALL) Diagram Mitsubishi STARION
- Year
- 1982 - 1983
- Sales region
- Japan
- Note
- X,5FM/T
- transmission
- 5FM/T
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011A
|
11011A
MD604888 BODY ASSY, AIR CLEANER |
MD604888 |
US $220.52 |
||
|
11020
|
11020
MD604880 ELEMENT, AIR CLEANERNon woven |
MD604880 |
US $43.66 |
||
|
11030
|
11030
MD025181 GASKET, AIR CLEANER TO CARB |
MD025181 |
US $9.44 |
||
|
11032
|
11032
MD604889 CASE, AIR CLEANER SECONDARY AIR FILTER |
MD604889 |
US $21.46 |
||
|
11045
|
11045
MD604881 COVER, AIR CLEANER |
MD604881 |
US $53.28 |
||
|
11055
|
11055
MD040910
HEAT DUCT, AIR CLEANER
|
MD040910 |
— | ||
| replacement | |||||
|
11055
|
11055
MD161602 HEAT DUCT, AIR CLEANER |
MD161602 |
US $23.26 |
||
|
11065
|
11065
MD603131 FILTER, AIR CLEANER CRANKCASE VENTILATION |
MD603131 |
US $3.11 |
||
|
11067
|
11067
MD604887
FILTER, AIR CLEANER SECONDARY
|
MD604887 |
— | ||
|
11089
|
11089
MD041430 DUCT, AIR CLEANER INTAKE |
MD041430 |
US $45.14 |
||
|
11289
|
11289
MD604804 WASHER, AIR CLEANER |
MD604804 |
US $1.33 |
||
|
11293P
|
11293P
MD603207
NUT, AIR CLEANER
|
MD603207 |
— | ||
|
11293Q
|
11293Q
MB133765 NUT, ENG FR MOUNTINGWasher assembled,8 |
MB133765 |
US $1.92 |
||
|
11293Q
|
11293Q
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
11297P
|
11297P
MD040913 CLAMP, AIR CLEANER56 |
MD040913 |
US $6.70 |
||
|
11298
|
11298
MF243601 BOLT, CRUISE CONTROL EQUIPWasher assembled,5x10 |
MF243601 |
US $1.92 |
||
