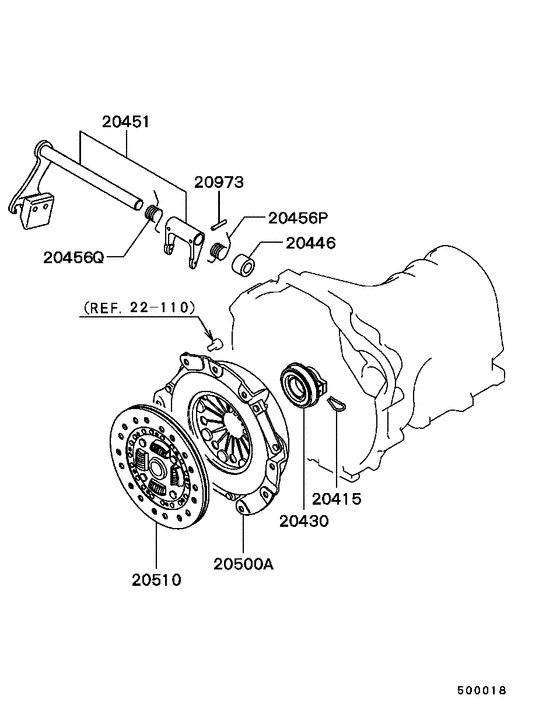

Clutch & clutch release (ALL) Diagram Mitsubishi STARION
- Year
- 1982 - 1983
- Sales region
- Japan
- Note
- X,5FM/T
- transmission
- 5FM/T
- grade
- X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20415
|
20415
MD701242 CLIP, CLUTCH RELEASE BEARING RETURN |
MD701242 |
from US $1.38 |
||
|
20430
|
20430
MD703270 BEARING, CLUTCH RELEASEBall,70.1 |
MD703270 |
from US $42.51 |
||
|
20446
|
20446
MD701285 SEAL, CLUTCH RELEASE FORK SHAFT |
MD701285 |
US $5.75 |
||
|
20451
|
20451
MD703292 SHAFT & FORK, CLUTCH RELEASE |
MD703292 |
US $51.30 |
||
|
20456P
|
20456P
MD701250 SPRING, CLUTCH RELEASE FORK RETURN |
MD701250 |
US $4.92 |
||
|
20456Q
|
20456Q
MD701249 SPRING, CLUTCH RELEASE FORK RETURN |
MD701249 |
US $4.92 |
||
|
20500A
|
20500A
MD802092 COVER ASSY, CLUTCH |
MD802092 |
US $219.04 |
||
|
20510
|
20510
MD802201 DISC, CLUTCHAsbestos,215 |
MD802201 |
US $216.08 |
||
|
20973
|
20973
MD701722 SPRING PIN, M/T CLUTCH CONTROL EQUIP5.2x26 |
MD701722 |
from US $1.31 |
||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
|
22 110
|
M/t case
22 110
|
||||
