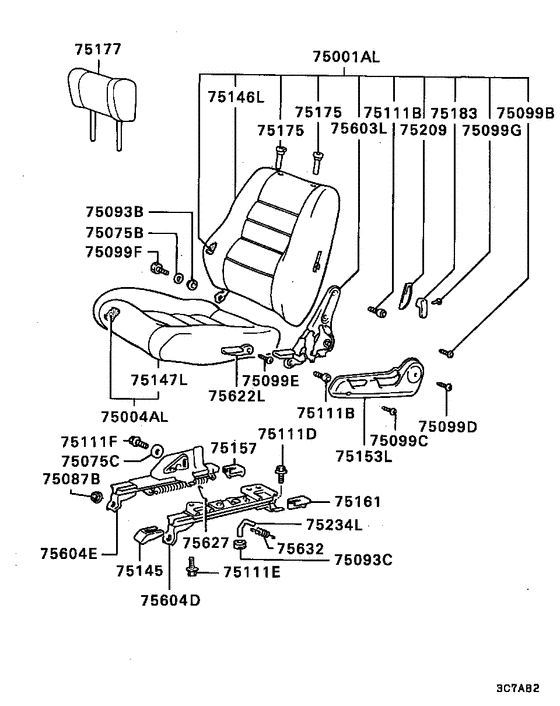

Front seat (LH -8303.3) Diagram Mitsubishi STARION
- Year
- 1982 - 1983
- Sales region
- Japan
- Note
- X,5FM/T
- transmission
- 5FM/T
- grade
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB209474 BACK ASSY, FR SEAT, LH |
MB209474 |
US $873.60 |
||
|
75004AL
|
75004AL
MB209438 CUSHION ASSY, FR SEAT, LH |
MB209438 |
US $787.70 |
||
|
75075B
|
75075B
MB190981 WASHER, FR SEAT6 |
MB190981 |
US $2.96 |
||
|
75075C
|
75075C
MB237251 WASHER, FR SEAT |
MB237251 |
US $4.59 |
||
|
75087B
|
75087B
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75093B
|
75093B
MB079118 BUSHING, FR SEAT12x5.5 |
MB079118 |
US $3.11 |
||
|
75093C
|
75093C
MB073443 BUSHING, FR SEAT |
MB073443 |
US $4.14 |
||
|
75099B
|
75099B
MF351446
SCREW, FR SEAT
|
MF351446 |
— | ||
|
75099C
|
75099C
MF200333 SCREW, FR SEATMachine,6x8 |
MF200333 |
US $2.22 |
||
|
75099D
|
75099D
MF453332 SCREW, AIR SPOILERTapping,5x14 |
MF453332 |
US $1.92 |
||
|
75099E
|
75099E
MF350047 SCREW, FLYWHEEL HOUSINGWasher assembled,5x10 |
MF350047 |
from US $0.88 |
||
|
75099F
|
75099F
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099G
|
75099G
MB299311 SCREW, FR SEAT3x8 |
MB299311 |
US $5.18 |
||
|
75111B
|
75111B
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111D
|
75111D
MB226191 BOLT, FR SEATWasher assembled,10x25 |
MB226191 |
US $4.88 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75111F
|
75111F
MB191203 BOLT, FR SEAT8x25 |
MB191203 |
US $2.96 |
||
|
75145
|
75145
MB190346 COVER, FR SEAT ANCHOR |
MB190346 |
US $5.62 |
||
|
75146L
|
75146L
MB299179 COVER, FR SEAT BACK, LH |
MB299179 |
US $497.95 |
||
|
75147L
|
75147L
MB299195 COVER, FR SEAT CUSHION, LH |
MB299195 |
US $452.82 |
||
|
75153L
|
75153L
MB268909 COVER, FR SEAT SIDE SHIELD, LH |
MB268909 |
US $29.60 |
||
|
75157
|
75157
MB172343 COVER, FR LH SEAT BACKBONE, RR |
MB172343 |
US $6.22 |
||
|
75161
|
75161
MB165415 COVER, FR LH SEAT SIDE SILL, RR |
MB165415 |
US $6.22 |
||
|
75175
|
75175
MB226442 GUIDE, FR SEAT HEADRESTW/o lock |
MB226442 |
US $11.10 |
||
|
75175
|
75175
MB226443
GUIDE, FR SEAT HEADREST
|
MB226443 |
— | ||
|
75177
|
75177
MB209503 HEADREST, FR SEAT |
MB209503 |
US $241.24 |
||
|
75183
|
75183
MB237783 KNOB, FR SEAT FOLDING |
MB237783 |
US $7.10 |
||
|
75209
|
75209
MB237784 PLATE, FR SEAT FOLDING KNOB |
MB237784 |
US $10.95 |
||
|
75234L
|
75234L
MB173873 SHAFT, FR SEAT CUSHION SLIDE, LH |
MB173873 |
US $27.38 |
||
|
75603L
|
75603L
MB237171 ADJUSTER, FR SEAT RECLINING, LH |
MB237171 |
US $189.44 |
||
|
75604D
|
75604D
MB237137 ADJUSTER, FR SEAT SLIDE |
MB237137 |
US $131.72 |
||
|
75604E
|
75604E
MB237138 ADJUSTER, FR SEAT SLIDE |
MB237138 |
US $118.40 |
||
|
75622L
|
75622L
MB267307
LEVER, FR SEAT SLIDE ADJUSTER, LH
|
MB267307 |
— | ||
|
75627
|
75627
MB237240 ROD, FR SEAT SLIDE ADJUSTER |
MB237240 |
US $4.44 |
||
|
75632
|
75632
MB079900 SPRING, FR SEAT SLIDE ADJUSTER LOCK |
MB079900 |
US $6.81 |
