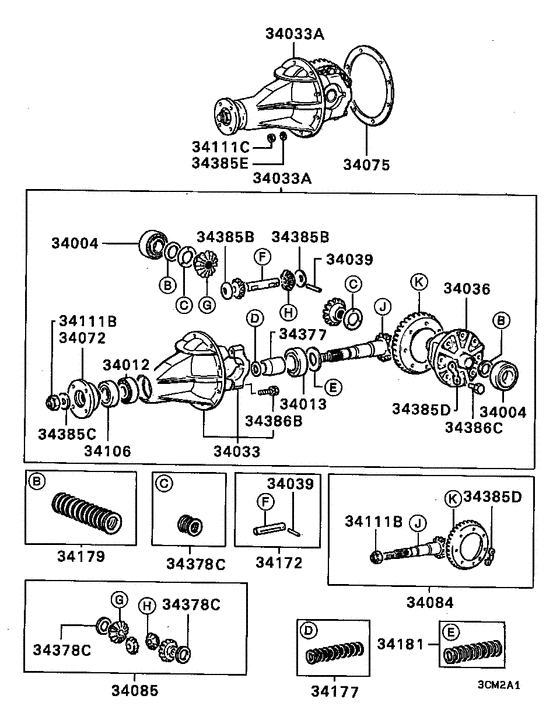

Rear axle differential (-8303.3(EXC TURBO)) Diagram Mitsubishi STARION
- Year
- 1982 - 1983
- Sales region
- Japan
- Note
- GX,5FM/T
- transmission
- 5FM/T
- grade
- GX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34004
|
34004
MA125934
BEARING, M/T DIFF CASE
|
MA125934 |
— | ||
|
34012
|
34012
MA103252 BEARING, RR DIFF DRIVE PINION, FRTaper roller,62.00x18.25-25.00 |
MA103252 |
US $37 |
||
|
34013
|
34013
MA111370 BEARING, RR DIFF DRIVE PINION, RRTaper roller,72.00x24.25-35.00 |
MA111370 |
US $35.52 |
||
|
34033
|
34033
MB001005 CARRIER, RR DIFF |
MB001005 |
US $428.06 |
||
|
34033A
|
34033A
MB001287 CARRIER ASSY, RR DIFF3.909 |
MB001287 |
US $2,361.60 |
||
|
34036
|
34036
MB001025 CASE, RR DIFF |
MB001025 |
US $441.17 |
||
|
34039
|
34039
MB001045 PIN, FR AXLEPin lock,5x54 |
MB001045 |
US $3.55 |
||
|
34072
|
34072
MB073271 FLANGE, RR DIFF COMPANION |
MB073271 |
US $116.18 |
||
|
34075
|
34075
MA103381
GASKET, RR DIFF CARRIER
|
MA103381 |
— | ||
|
34084
|
34084
MB185313
GEAR KIT, RR DIFF FINAL DRIVE
|
MB185313 |
— | ||
|
34085
|
34085
MB185380 GEAR KIT, RR DIFF CASE |
MB185380 |
US $239.76 |
||
|
34106
|
34106
MB001170
OIL SEAL, RR DIFF DRIVE PINION
|
MB001170 |
— | ||
| replacement | |||||
|
34106
|
34106
MB393929 OIL SEAL, RR DIFF DRIVE PINION |
MB393929 |
from US $7.18 |
||
|
34111B
|
34111B
MA143517 NUT, PROPELLER SHAFTLock,18 |
MA143517 |
from US $4.76 |
||
|
34111C
|
34111C
MF430121 NUT, CYLINDER HEAD8 |
MF430121 |
from US $0.80 |
||
|
34172
|
34172
MB092834 SHAFT KIT, FR DIFF PINION |
MB092834 |
US $34.78 |
||
|
34177
|
34177
MB185360 SHIM SET, RR DIFF DRIVE PINION, FR |
MB185360 |
US $75.92 |
||
|
34179
|
34179
MB185370 SHIM SET, RR DIFF SIDE BEARING |
MB185370 |
US $9.71 |
||
|
34181
|
34181
MB185350 SHIM SET, RR DIFF DRIVE PINION, RR |
MB185350 |
US $53.35 |
||
|
34377
|
34377
MA180841 SPACER, RR DIFF PINION BEARING57.72 |
MA180841 |
from US $13.85 |
||
|
34377
|
34377
MB044434 SPACER, RR DIFF PINION BEARING57.08 |
MB044434 |
from US $11.76 |
||
|
34378C
|
34378C
MB185340 SPACER SET, M/T DIFF SIDE GEAR |
MB185340 |
US $31.08 |
||
|
34385B
|
34385B
MA145188 WASHER, M/T POWER TRAINSpring,17.3 |
MA145188 |
US $3.69 |
||
|
34385C
|
34385C
MT203641 WASHER, PROPELLER SHAFTPlain,18.5 |
MT203641 |
from US $4.76 |
||
|
34385D
|
34385D
MB001088 WASHER, FR AXLELock,19,11.3 |
MB001088 |
US $3.55 |
||
|
34385E
|
34385E
MS450042 WASHER, PROPELLER SHAFTSpring,8 |
MS450042 |
from US $1.79 |
||
|
34386B
|
34386B
MS240915 BOLT, FR DIFFWasher assembled,10x50 |
MS240915 |
US $2.52 |
||
|
34386C
|
34386C
MA103209 BOLT, RR DIFF10x10.5 |
MA103209 |
US $3.85 |
||
