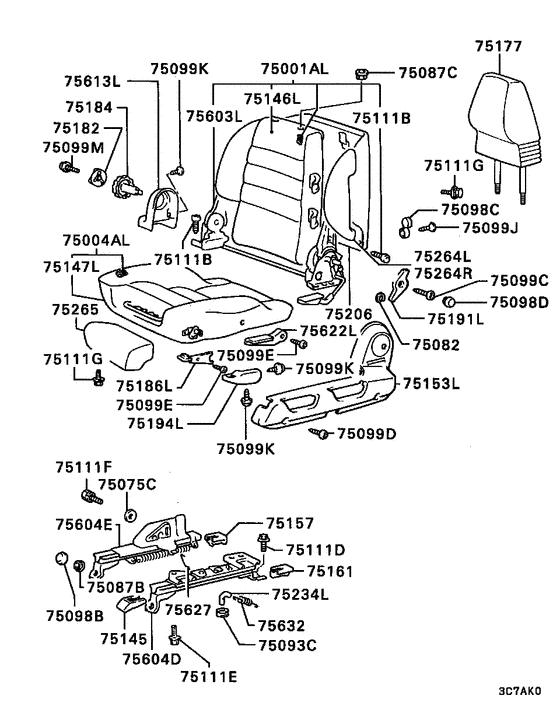

Front seat (LH..W/THIGH SUPPORT -'87MODEL) Diagram Mitsubishi STARION
- Year
- 1984 - 1985
- Sales region
- EUR
- Note
- I/C TURBO,5FM/T RHD
- transmission
- 5FM/T
- grade
- I/C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB444797
BACK ASSY,FR SEAT,LH
|
MB444797 |
— | ||
|
75001AL
|
75001AL
MB444798
BACK ASSY,FR SEAT,LH
|
MB444798 |
— | ||
|
75004AL
|
75004AL
MB444755
CUSHION ASSY,FR SEAT,LH
|
MB444755 |
— | ||
|
75004AL
|
75004AL
MB444756
CUSHION ASSY,FR SEAT,LH
|
MB444756 |
— | ||
|
75075C
|
75075C
MB237251 WASHER, FR SEAT |
MB237251 |
US $4.59 |
||
|
75082
|
75082
MF522407 SNAP RING, CHOKE CABLE9 |
MF522407 |
from US $1.19 |
||
|
75087B
|
75087B
MS440514 NUT, FR BUMPERWasher assembled,10 |
MS440514 |
US $2.07 |
||
|
75087C
|
75087C
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
75093C
|
75093C
MB073443 BUSHING, FR SEAT |
MB073443 |
US $4.14 |
||
|
75098B
|
75098B
MB341221 CAP, FR SEAT |
MB341221 |
US $3.11 |
||
|
75098B
|
75098B
MB355283 CAP, FR SEAT |
MB355283 |
US $3.40 |
||
|
75098B
|
75098B
MB355284 CAP, FR SEAT |
MB355284 |
US $3.40 |
||
|
75098B
|
75098B
MB355285 CAP, FR SEAT |
MB355285 |
US $3.70 |
||
|
75098B
|
75098B
MB720387
CAP,FR SEAT
|
MB720387 |
— | ||
|
75098C
|
75098C
MB225969 CAP, RR SEAT |
MB225969 |
US $2.87 |
||
|
75098C
|
75098C
MB299314 CAP, FR DOOR TRIM SCREW |
MB299314 |
US $3.11 |
||
|
75098C
|
75098C
MB355465 CAP, FR DOOR TRIM SCREW |
MB355465 |
US $2.81 |
||
|
75098D
|
75098D
MB442405 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB442405 |
US $3.26 |
||
|
75098D
|
75098D
MB469834 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB469834 |
US $6.81 |
||
|
75098D
|
75098D
MB724294 CAP,FR SEAT LUMBAR SUPPORT LEVER |
MB724294 |
US $4.44 |
||
|
75099C
|
75099C
MF200333 SCREW, FR SEATMachine,6x8 |
MF200333 |
US $2.22 |
||
|
75099D
|
75099D
MF453332 SCREW, AIR SPOILERTapping,5x14 |
MF453332 |
US $1.92 |
||
|
75099E
|
75099E
MF350047 SCREW, FLYWHEEL HOUSINGWasher assembled,5x10 |
MF350047 |
US $2.05 |
||
|
75099J
|
75099J
MF453737 SCREW, FR SEATTapping,4x25 |
MF453737 |
US $1.92 |
||
|
75099K
|
75099K
MF350287
SCREW, ROCKER COVER
|
MF350287 |
— | ||
|
75099M
|
75099M
MF350745 SCREW, FUEL RETURN LINEWasher assembled,4x12 |
MF350745 |
US $0.74 |
||
|
75111B
|
75111B
MB144649 BOLT, FR SEAT10x21 |
MB144649 |
US $3.69 |
||
|
75111D
|
75111D
MB226191 BOLT, FR SEATWasher assembled,10x25 |
MB226191 |
US $4.88 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75111F
|
75111F
MB191203 BOLT, FR SEAT8x25 |
MB191203 |
US $2.96 |
||
|
75111G
|
75111G
MS240021 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240021 |
US $2.05 |
||
|
75145
|
75145
MB190346 COVER, FR SEAT ANCHOR |
MB190346 |
US $5.62 |
||
|
75145
|
75145
MB355255 COVER, FR SEAT ANCHOR |
MB355255 |
US $3.70 |
||
|
75145
|
75145
MB355256 COVER, FR SEAT ANCHOR |
MB355256 |
US $4.14 |
||
|
75145
|
75145
MB355257 COVER, FR SEAT ANCHOR |
MB355257 |
US $4.14 |
||
|
75145
|
75145
MB720388
COVER,FR SEAT ANCHOR
|
MB720388 |
— | ||
|
75146L
|
75146L
MB442252
COVER,FR SEAT BACK,LH
|
MB442252 |
— | ||
|
75146L
|
75146L
MB442253
COVER,FR SEAT BACK,LH
|
MB442253 |
— | ||
|
75147L
|
75147L
MB442236
COVER,FR SEAT CUSHION,LH
|
MB442236 |
— | ||
|
75147L
|
75147L
MB442237
COVER,FR SEAT CUSHION,LH
|
MB442237 |
— | ||
|
75153L
|
75153L
MB204557 COVER, FR SEAT SIDE SHIELD, LH |
MB204557 |
US $39.22 |
||
|
75153L
|
75153L
MB268909 COVER, FR SEAT SIDE SHIELD, LH |
MB268909 |
US $29.60 |
||
|
75153L
|
75153L
MB442122
COVER,FR SEAT SIDE SHIELD,LH
|
MB442122 |
— | ||
|
75153L
|
75153L
MB468628 COVER, FR SEAT SIDE SHIELD, LH |
MB468628 |
US $39.22 |
||
|
75153L
|
75153L
MB720583 COVER, FR SEAT SIDE SHIELD, LH |
MB720583 |
US $45.14 |
||
|
75153L
|
75153L
MB720585
COVER,FR SEAT SIDE SHIELD,LH
|
MB720585 |
— | ||
|
75157
|
75157
MB172343 COVER, FR LH SEAT BACKBONE, RR |
MB172343 |
US $6.22 |
||
|
75157
|
75157
MB355268 COVER, FR LH SEAT BACKBONE, RR |
MB355268 |
US $3.70 |
||
|
75157
|
75157
MB355269 COVER, FR LH SEAT BACKBONE, RR |
MB355269 |
US $3.70 |
||
|
75157
|
75157
MB355270 COVER, FR LH SEAT BACKBONE, RR |
MB355270 |
US $4.14 |
||
|
75157
|
75157
MB720391
COVER,FR LH SEAT BACKBONE,RR
|
MB720391 |
— | ||
|
75161
|
75161
MB165415 COVER, FR LH SEAT SIDE SILL, RR |
MB165415 |
US $6.22 |
||
|
75161
|
75161
MB355260 COVER, FR LH SEAT SIDE SILL, RR |
MB355260 |
US $3.70 |
||
|
75161
|
75161
MB355261 COVER, FR LH SEAT SIDE SILL, RR |
MB355261 |
US $3.70 |
||
|
75161
|
75161
MB355262 COVER, FR LH SEAT SIDE SILL, RR |
MB355262 |
US $4.14 |
||
|
75161
|
75161
MB720389
COVER,FR LH SEAT SIDE SILL,RR
|
MB720389 |
— | ||
|
75177
|
75177
MB342272
HEADREST,FR SEAT
|
MB342272 |
— | ||
|
75177
|
75177
MB342273
HEADREST,FR SEAT
|
MB342273 |
— | ||
|
75182
|
75182
MB191341 KNOB, FR SEAT BACK SIDE SUPPORT |
MB191341 |
US $17.02 |
||
|
75182
|
75182
MB442399 KNOB, FR SEAT BACK SIDE SUPPORT |
MB442399 |
US $15.54 |
||
|
75182
|
75182
MB720518 KNOB, FR SEAT BACK SIDE SUPPORT |
MB720518 |
US $17.76 |
||
|
75182
|
75182
MB720520
KNOB,FR SEAT BACK SIDE SUPPORT
|
MB720520 |
— | ||
|
75184
|
75184
MB191334 KNOB, FR SEAT LUMBAR SUPPORT |
MB191334 |
US $48.10 |
||
|
75184
|
75184
MB442402 KNOB, FR SEAT LUMBAR SUPPORT |
MB442402 |
US $44.40 |
||
|
75186L
|
75186L
MB299150 KNOB, FR SEAT THIGH SUPPORT, LH |
MB299150 |
US $5.77 |
||
|
75186L
|
75186L
MB442439 KNOB, FR SEAT THIGH SUPPORT, LH |
MB442439 |
US $14.21 |
||
|
75194L
|
75194L
MB191339
LEVER, FR SEAT THIGH SUPPORT, LH
|
MB191339 |
— | ||
|
75194L
|
75194L
MB442433 LEVER, FR SEAT THIGH SUPPORT, LH |
MB442433 |
US $14.21 |
||
|
75234L
|
75234L
MB173873 SHAFT, FR SEAT CUSHION SLIDE, LH |
MB173873 |
US $27.38 |
||
|
75234L
|
75234L
MB323810 SHAFT, FR SEAT CUSHION SLIDE, LH |
MB323810 |
US $22.94 |
||
|
75234L
|
75234L
MB601017 SHAFT, FR SEAT CUSHION SLIDE |
MB601017 |
US $31.08 |
||
|
75603L
|
75603L
MB442407
ADJUSTER,FR SEAT RECLINING,LH
|
MB442407 |
— | ||
|
75603L
|
75603L
MB442408
ADJUSTER,FR SEAT RECLINING,LH
|
MB442408 |
— | ||
|
75604D
|
75604D
MB237380
ADJUSTER,FR SEAT SLIDE
|
MB237380 |
— | ||
|
75604E
|
75604E
MB237138 ADJUSTER, FR SEAT SLIDE |
MB237138 |
US $118.40 |
||
|
75613L
|
75613L
MB204553 COVER, FR SEAT RECLINING ADJUSTER, LH |
MB204553 |
US $15.54 |
||
|
75613L
|
75613L
MB468626 COVER, FR SEAT RECLINING ADJUSTER, LH |
MB468626 |
US $17.76 |
||
|
75613L
|
75613L
MB724307 COVER, FR SEAT RECLINING ADJUSTER, LH |
MB724307 |
US $18.50 |
||
|
75613L
|
75613L
MB724309
COVER,FR SEAT RECLINING ADJUSTER,LH
|
MB724309 |
— | ||
|
75622L
|
75622L
MB267307
LEVER, FR SEAT SLIDE ADJUSTER, LH
|
MB267307 |
— | ||
|
75622L
|
75622L
MB442426
LEVER, FR SEAT SLIDE ADJUSTER, LH
|
MB442426 |
— | ||
| replacement | |||||
|
75622L
|
75622L
MB267307
LEVER, FR SEAT SLIDE ADJUSTER, LH
|
MB267307 |
— | ||
|
75622L
|
75622L
MB442427 LEVER, FR SEAT SLIDE ADJUSTER, LH |
MB442427 |
US $16.28 |
||
|
75622L
|
75622L
MB442428 LEVER, FR SEAT SLIDE ADJUSTER, LH |
MB442428 |
US $16.28 |
||
|
75622L
|
75622L
MB720589 KNOB, FR SEAT SLIDE ADJUSTER, LH |
MB720589 |
US $10.36 |
||
|
75622L
|
75622L
MB720591
KNOB,FR SEAT SLIDE ADJUSTER,LH
|
MB720591 |
— | ||
|
75627
|
75627
MB237240 ROD, FR SEAT SLIDE ADJUSTER |
MB237240 |
US $4.44 |
||
|
75627
|
75627
MB601014 ROD, FR SEAT SLIDE ADJUSTER |
MB601014 |
US $17.02 |
||
|
75632
|
75632
MB079900 SPRING, FR SEAT SLIDE ADJUSTER LOCK |
MB079900 |
US $6.81 |
||
|
75632
|
75632
MB267286 SPRING, FR SEAT SLIDE ADJUSTER LOCK |
MB267286 |
US $4.88 |
||
