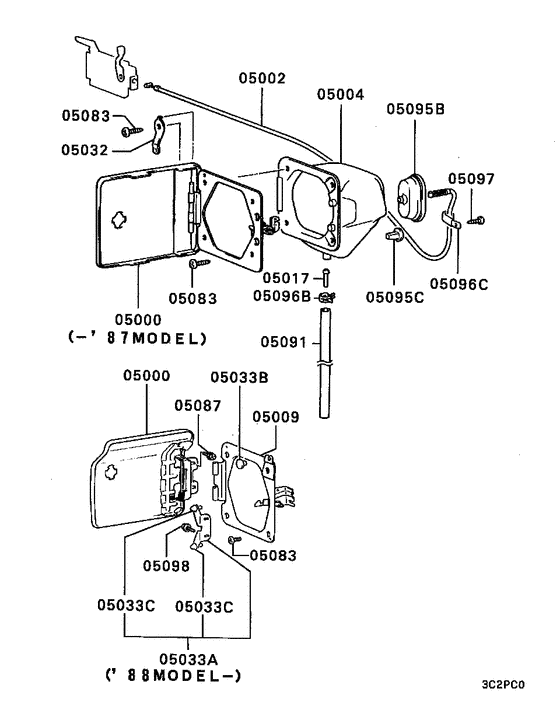

Fuel filler lid & lock Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- EUR
- Note
- TURBO EX,5FM/T RHD
- transmission
- 5FM/T
- grade
- EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05000
|
05000
MB022711 LID, FUEL FILLER |
MB022711 |
US $33.30 |
||
|
05000
|
05000
MB023117 LID, FUEL FILLER |
MB023117 |
US $36.26 |
||
|
05002
|
05002
MB022828
CABLE, FUEL FILLER LID LOCK RELEASE
|
MB022828 |
— | ||
|
05004
|
05004
MB022753
COVER, FUEL FILLER NECK
|
MB022753 |
— | ||
|
05009
|
05009
MB023118 PLATE, FUEL FILLER LID |
MB023118 |
US $58.46 |
||
|
05017
|
05017
MB022940
PIPE, FUEL FILLER NECK COVER DRAIN
|
MB022940 |
— | ||
| replacement | |||||
|
05017
|
05017
MB052994
PIPE, FUEL FILLER NECK COVER DRAIN
|
MB052994 |
— | ||
|
05017
|
05017
MB052994
PIPE, FUEL FILLER NECK COVER DRAIN
|
MB052994 |
— | ||
|
05032
|
05032
MB022648
SPRING, FUEL FILLER LID DAMPER
|
MB022648 |
— | ||
|
05033A
|
05033A
MB023125
DAMPER ASSY, FUEL FILLER LID
|
MB023125 |
— | ||
|
05033B
|
05033B
MB105563 DAMPER, FUEL FILLER LID |
MB105563 |
from US $2.11 |
||
|
05033C
|
05033C
MA141871 DAMPER, FUEL FILLER LID |
MA141871 |
US $4.24 |
||
|
05083
|
05083
MS200030 SCREW, FUEL FILLER LID PANELMachine,6x16 |
MS200030 |
US $2.66 |
||
|
05083
|
05083
MU200011 SCREW, FUEL FILLER LID PANELMachine,6x16 |
MU200011 |
US $6.66 |
||
|
05083
|
05083
MU200013
SCREW, FUEL FILLER LID LOCKING
|
MU200013 |
— | ||
|
05087
|
05087
MU240060
BOLT, FUEL FILLER LID PANEL
|
MU240060 |
— | ||
| replacement | |||||
|
05087
|
05087
MU240085 BOLT, FUEL FILLER LID PANELWasher assembled,5x12 |
MU240085 |
US $2.60 |
||
|
05091
|
05091
MS612028
TUBE,FUEL FILLER LID LOCK
|
MS612028 |
— | ||
|
05091
|
05091
MS612399 TUBE, FUEL TANKSoft vinyl,6x10000 |
MS612399 |
from US $40.70 |
||
|
05095B
|
05095B
MB022640 GROMMET, FUEL FILLER LID LOCKING30x63 |
MB022640 |
US $7.10 |
||
|
05095C
|
05095C
MB088341 GROMMET, FUEL FILLER LID LOCKING8.5 |
MB088341 |
from US $1.21 |
||
|
05096B
|
05096B
MS660160 CLIP, FUEL FILLER LID PANELD=8.6 |
MS660160 |
US $2.46 |
||
|
05096B
|
05096B
MS660161 CLIP, ROCKER COVERD=9.4 |
MS660161 |
from US $1.97 |
||
|
05096C
|
05096C
MS470163 CLIP, FUEL FILLER LID LOCKING7 |
MS470163 |
US $2.96 |
||
|
05097
|
05097
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
05098
|
05098
MU240060
BOLT, FUEL FILLER LID PANEL
|
MU240060 |
— | ||
| replacement | |||||
|
05098
|
05098
MU240085 BOLT, FUEL FILLER LID PANELWasher assembled,5x12 |
MU240085 |
US $2.60 |
||
|
05098
|
05098
MU240085 BOLT, FUEL FILLER LID PANELWasher assembled,5x12 |
MU240085 |
US $2.60 |
||
