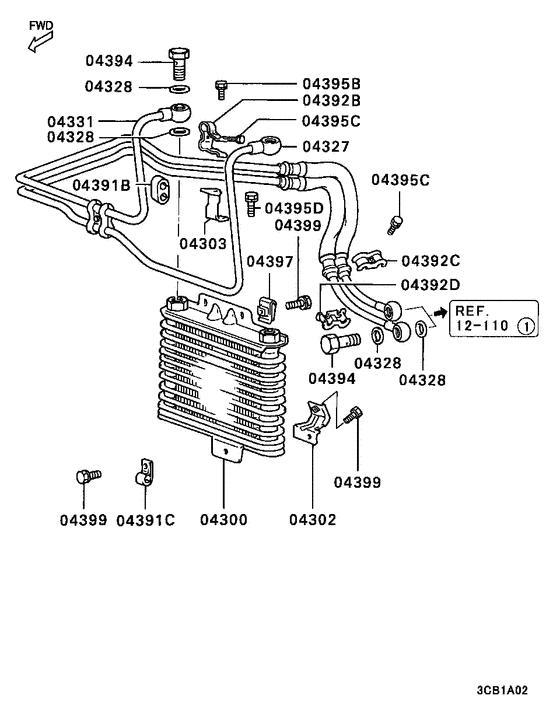

Oil cooler tube ('82MODEL) Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- EUR
- Note
- TURBO EX,5FM/T RHD
- transmission
- 5FM/T
- grade
- EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04300
|
04300
MB033020 OIL COOLER, ENG |
MB033020 |
US $601.33 |
||
|
04300
|
04300
MB033473
OIL COOLER,ENG
|
MB033473 |
— | ||
|
04302
|
04302
MB033160 BRACKET, ENG OIL COOLER |
MB033160 |
US $9.18 |
||
|
04303
|
04303
MB033075
BRACKET, ENG OIL COOLER HOSE
|
MB033075 |
— | ||
|
04303
|
04303
MB033319 BRACKET, ENG OIL COOLER HOSE |
MB033319 |
US $9.18 |
||
|
04327
|
04327
MB033156 HOSE, ENG OIL COOLER FEED |
MB033156 |
US $195.36 |
||
|
04327
|
04327
MB033315
HOSE, ENG OIL COOLER FEED
|
MB033315 |
— | ||
|
04328
|
04328
MB033054 GASKET, ENG OIL COOLER TUBE |
MB033054 |
from US $1.85 |
||
|
04331
|
04331
MB033157 HOSE, ENG OIL COOLER RETURN |
MB033157 |
US $195.36 |
||
|
04331
|
04331
MB033317
HOSE, ENG OIL COOLER RETURN
|
MB033317 |
— | ||
|
04391B
|
04391B
MB122648
CLIP, ENG OIL COOLER LINE
|
MB122648 |
— | ||
|
04391C
|
04391C
MB033077 CLIP, ENG OIL COOLER LINE10 |
MB033077 |
US $5.03 |
||
|
04392B
|
04392B
MB033076
CLAMP, ENG OIL COOLER LINE
|
MB033076 |
— | ||
|
04392C
|
04392C
MB033042 CLAMP, ENG OIL COOLER LINE10 |
MB033042 |
US $3.42 |
||
|
04392D
|
04392D
MB033043 CLAMP, ENG OIL COOLER LINE10 |
MB033043 |
from US $1.66 |
||
|
04394
|
04394
MB033025 EYEBOLT, ENG OIL COOLER LINE16x33 |
MB033025 |
from US $5.77 |
||
|
04395B
|
04395B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
04395C
|
04395C
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
04395D
|
04395D
MF243678
BOLT, ENG SUPPORT ROD
|
MF243678 |
— | ||
| replacement | |||||
|
04395D
|
04395D
MF244878 BOLT, CYLINDER HEADWasher assembled,10x20 |
MF244878 |
from US $1.50 |
||
|
04397
|
04397
MB033161 NUT, ENG OIL COOLER LINESpring,8 |
MB033161 |
US $5.77 |
||
|
04399
|
04399
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
12 110
|
Oil pump & oil filter
12 110
|
||||
