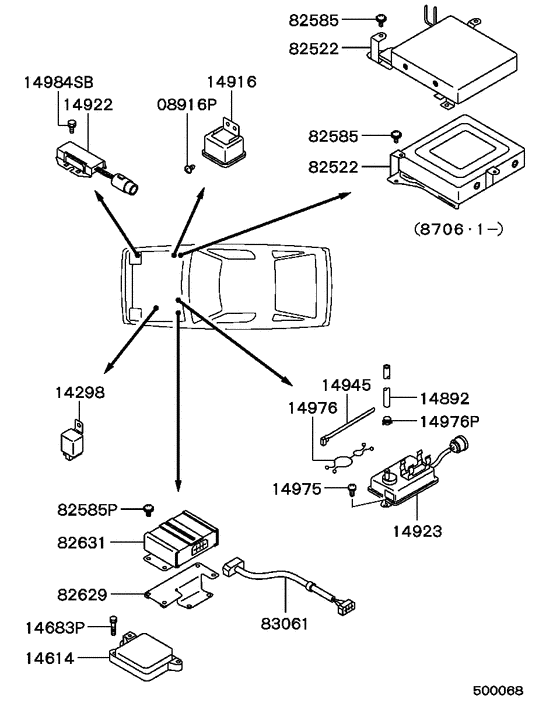

Electrical control (ALL (CONTROL UNIT ETC.)) Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- EUR
- Note
- TURBO,5FM/T RHD
- transmission
- 5FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08916P
|
08916P
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
14298
|
14298
MD101250 RELAY, ALTERNATOR SAFETY |
MD101250 |
US $32.15 |
||
|
14614
|
14614
MD001635 IGNITER UNIT |
MD001635 |
US $661.02 |
||
|
14614
|
14614
MD066844 IGNITER UNIT |
MD066844 |
US $661.02 |
||
|
14614
|
14614
MD089738
IGNITER UNIT
|
MD089738 |
— | ||
|
14614
|
14614
MD092393 IGNITER UNIT |
MD092393 |
US $562.02 |
||
|
14614
|
14614
MD109944
IGNITER UNIT
|
MD109944 |
— | ||
|
14683P
|
14683P
MF243628 BOLT, CONNRODWasher assembled,6x25 |
MF243628 |
US $0.55 |
||
|
14683P
|
14683P
MS350134 SCREW, ENG CONTROL EQUIPWasher assembled,6x12 |
MS350134 |
US $3.40 |
||
|
14892
|
14892
MD041928 HOSE, BOOST SENSOR5x820 |
MD041928 |
US $31.82 |
||
|
14916
|
14916
MD019115
RELAY, ENG CONTROL
|
MD019115 |
— | ||
| replacement | |||||
|
14916
|
14916
MD145973
RELAY, ENG CONTROL
|
MD145973 |
— | ||
|
14922
|
14922
MD041855 RESISTOR, ENG CONTROL |
MD041855 |
US $63.64 |
||
|
14922
|
14922
MD062706
RESISTOR, ENG CONTROL
|
MD062706 |
— | ||
|
14922
|
14922
MD066193 RESISTOR, ENG CONTROL |
MD066193 |
US $70.30 |
||
|
14923
|
14923
MD041451 SENSOR, ENG CONTROL BOOST |
MD041451 |
US $534.35 |
||
|
14923
|
14923
MD070305
SENSOR, ENG CONTROL BOOST
|
MD070305 |
— | ||
|
14945
|
14945
MD013832 BAND, EGR EQUIP110 |
MD013832 |
US $2.96 |
||
|
14975
|
14975
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
||
|
14976
|
14976
MS470371 CLIP, ROCKER COVERD=11,17 |
MS470371 |
US $2.96 |
||
|
14976P
|
14976P
MS660161 CLIP, ROCKER COVERD=9.4 |
MS660161 |
from US $1.97 |
||
|
14984SB
|
14984SB
MS350133 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x12 |
MS350133 |
US $2.52 |
||
|
82522
|
82522
MD041933
CONTROL UNIT,ENG
|
MD041933 |
— | ||
|
82585
|
82585
MS350133 SCREW, FUEL FILLER LID LOCKINGWasher assembled,5x12 |
MS350133 |
US $2.52 |
||
|
82585P
|
82585P
MF350790 SCREW, HAND STARTING EQUIPWasher assembled,6x12 |
MF350790 |
from US $1.05 |
||
|
82631
|
82631
MD105551
MODULATOR,ENG CONTROL
|
MD105551 |
— | ||
|
83061
|
83061
MD106359
HARNESS,ENG CONTROL MODULATOR
|
MD106359 |
— | ||
