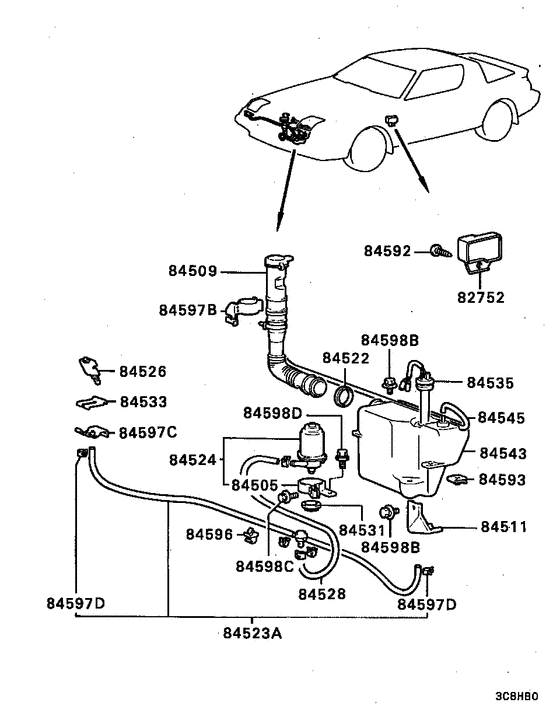

Headlamp wiper & washer Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- EUR
- Note
- TURBO,5FM/T RHD
- transmission
- 5FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82752
|
82752
MB141378 RELAY, HEADLAMP WASHER35600-37248 |
MB141378 |
US $134.68 |
||
|
84505
|
84505
MB330025 BRACKET, HEADLAMP WASHER MOTOR |
MB330025 |
US $16.28 |
||
|
84509
|
84509
MB262778 HOSE, HEADLAMP WASHER TANK FILLER |
MB262778 |
US $45.14 |
||
|
84511
|
84511
MB262781 BRACKET, HEADLAMP WASHER TANK |
MB262781 |
US $10.36 |
||
|
84522
|
84522
MB196831 GASKET, HEADLAMP WASHER TANK HOSE |
MB196831 |
US $3.85 |
||
|
84523A
|
84523A
MB183622
HOSE & VALVE ASSY, HEADLAMP WASHER
|
MB183622 |
— | ||
|
84524
|
84524
MB262777 MOTOR, HEADLAMP WASHER |
MB262777 |
US $276.76 |
||
|
84524
|
84524
MB488486 MOTOR, HEADLAMP WASHER |
MB488486 |
US $302.85 |
||
|
84526
|
84526
MB183621 NOZZLE, HEADLAMP WASHER |
MB183621 |
US $45.14 |
||
|
84528
|
84528
MB262783 HOSE, HEADLAMP WASHER TANK |
MB262783 |
US $14.06 |
||
|
84531
|
84531
MB196832
GASKET, HEADLAMP WASHER MOTOR
|
MB196832 |
— | ||
| replacement | |||||
|
84531
|
84531
MB141876 GASKET, HEADLAMP WASHER MOTOR |
MB141876 |
from US $1.42 |
||
|
84533
|
84533
MB183624 PLATE, HEADLAMP WASHER NOZZLE LOCK |
MB183624 |
US $6.66 |
||
|
84535
|
84535
MB571549 SENSOR, HEADLAMP WASHER TANK LEVEL |
MB571549 |
US $68.82 |
||
|
84543
|
84543
MB262776 TANK, HEADLAMP WASHER |
MB262776 |
US $96.20 |
||
|
84545
|
84545
MS610099 TUBESoft vinyl,4x10000 |
MS610099 |
US $71.82 |
||
|
84592
|
84592
MF455033 SCREW, SCUFF PLATETapping,5x16 |
MF455033 |
US $1.37 |
||
|
84593
|
84593
MS440191 NUT, CRUISE CONTROL ELECTRICALSSpring,6 |
MS440191 |
from US $1.66 |
||
|
84596
|
84596
MB183629 CLIP, HEADLAMP WASHER3 |
MB183629 |
US $2.81 |
||
|
84597B
|
84597B
MB229045 CLAMP, WINDSHIELD WASHER28 |
MB229045 |
US $13.47 |
||
|
84597C
|
84597C
MB183623 CLAMP, HEADLAMP WASHER |
MB183623 |
US $8.58 |
||
|
84597D
|
84597D
MB141873 CLAMP, WINDSHIELD WASHER13.2 |
MB141873 |
US $3.55 |
||
|
84598B
|
84598B
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $0.96 |
||
|
84598C
|
84598C
MF243608 BOLT, CONNRODWasher assembled,5x25 |
MF243608 |
US $2.07 |
||
|
84598D
|
84598D
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
