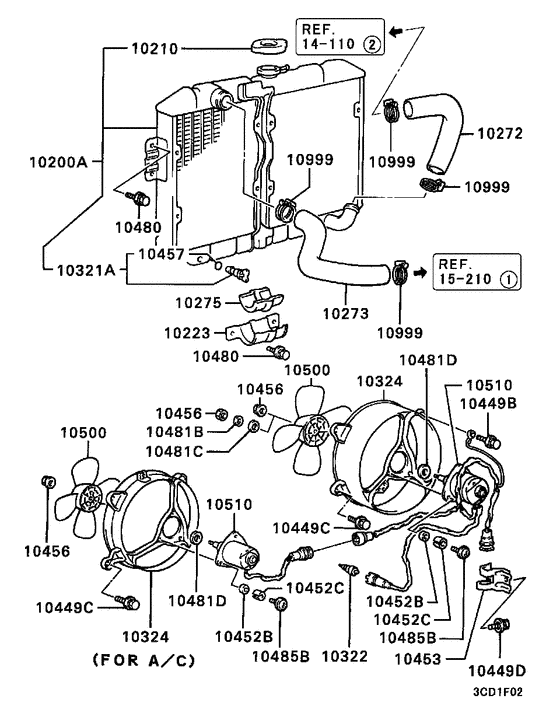

Radiator,hose & condenser tank (RADIATOR ETC.(-'85MODEL)) Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- EUR
- Note
- TURBO,5FM/T RHD
- transmission
- 5FM/T
- grade
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MB221834
RADIATOR ASSY
|
MB221834 |
— | ||
|
10210
|
10210
MB221633 CAP, RADIATOR |
MB221633 |
from US $19.84 |
||
|
10210
|
10210
MB222066
CAP, RADIATOR
|
MB222066 |
— | ||
| replacement | |||||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
10223
|
10223
MB008049 BRACKET, RADIATOR, LWR |
MB008049 |
US $7.99 |
||
|
10272
|
10272
MB007761
HOSE, RADIATOR, LWR
|
MB007761 |
— | ||
|
10272
|
10272
MB221769 HOSE, RADIATOR, LWRRubber,34 |
MB221769 |
from US $21.76 |
||
|
10273
|
10273
MB007760 HOSE, RADIATOR, UPR |
MB007760 |
US $16.42 |
||
|
10275
|
10275
MB008050 INSULATOR, RADIATOR SUPPORT |
MB008050 |
US $6.22 |
||
|
10321A
|
10321A
MB008067
PLUG ASSY, RADIATOR
|
MB008067 |
— | ||
| replacement | |||||
|
10321A
|
10321A
MR508982 PLUG ASSY, RADIATOR |
MR508982 |
from US $6.22 |
||
|
10322
|
10322
MB007639 SENSOR, RADIATOR WATER TEMPERATUREOn-85 c |
MB007639 |
US $64.98 |
||
|
10324
|
10324
MB221972 SHROUD, COOLING FAN |
MB221972 |
US $53.28 |
||
|
10324
|
10324
MB356827 SHROUD, COOLING FAN |
MB356827 |
US $59.20 |
||
|
10449B
|
10449B
MB398465 BOLT, FUEL LINEWasher assembled,8x16 |
MB398465 |
US $5.18 |
||
|
10449C
|
10449C
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
10449D
|
10449D
MF240023 BOLT, FUEL TANKWasher assembled,6x12 |
MF240023 |
from US $0.60 |
||
|
10452B
|
10452B
MB007714 BUSHING, RADIATOR9x6 |
MB007714 |
US $1.63 |
||
|
10452C
|
10452C
MB007715 BUSHING, RADIATOR6x9.5 |
MB007715 |
US $1.04 |
||
|
10453
|
10453
MB196788 CLAMP, ENG CONTROL EQUIP |
MB196788 |
US $9.03 |
||
|
10453
|
10453
MB261480 CLAMP, RADIATOR8 |
MB261480 |
US $5.92 |
||
|
10456
|
10456
MB356066
NUT, RADIATOR
|
MB356066 |
— | ||
| replacement | |||||
|
10456
|
10456
MB906064 NUT, RADIATOR |
MB906064 |
from US $1.74 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10480
|
10480
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
10481B
|
10481B
MB007711 WASHER, RADIATORTooth,5.3 |
MB007711 |
US $1.48 |
||
|
10481C
|
10481C
MB007712 WASHER, RADIATORPlain,5.1 |
MB007712 |
US $1.48 |
||
|
10481D
|
10481D
MB007713 WASHER, RADIATORPlain,6.8 |
MB007713 |
US $1.18 |
||
|
10485B
|
10485B
MB007716 SCREW, RADIATORWasher assembled,4x18 |
MB007716 |
US $1.18 |
||
|
10500
|
10500
MB222001
FAN, COOLING
|
MB222001 |
— | ||
|
10510
|
10510
MB221970 MOTOR, COOLING FAN |
MB221970 |
US $199.80 |
||
|
10510
|
10510
MB356828 MOTOR, COOLING FAN |
MB356828 |
US $375.65 |
||
|
10999
|
10999
MA609112 CLAMP, RADIATOR PIPINGD=44 |
MA609112 |
from US $4.13 |
||
|
