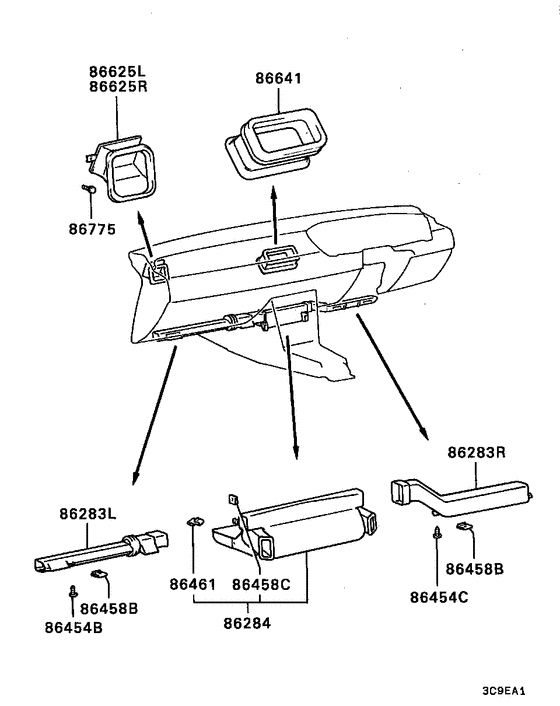

Ventilation & duct Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- Japan
- Note
- GSR-3,5FM/T
- transmission
- 5FM/T
- grade
- GSR-3
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86283L
|
86283L
MB199555 DUCT, LAP HEATER, LHPassenger(rhd) |
MB199555 |
US $20.72 |
||
|
86283R
|
86283R
MB199559 DUCT, LAP HEATER, RHDriver(rhd) |
MB199559 |
US $22.20 |
||
|
86284
|
86284
MB188787 DUCT, LAP HEATER, CTR |
MB188787 |
US $68.82 |
||
|
86454B
|
86454B
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
86454C
|
86454C
MS450177 SCREW, OVERFENDERTapping,5x16 |
MS450177 |
from US $2.75 |
||
|
86458B
|
86458B
MA147258 NUT, SIDE AIR DAMSpring,5 |
MA147258 |
US $1.63 |
||
|
86458C
|
86458C
MS440152 NUT, RR BUMPERSpring,5 |
MS440152 |
US $2.05 |
||
|
86461
|
86461
MB199677 CLIP, HEATER DUCT |
MB199677 |
US $4.59 |
||
|
86625L
|
86625L
MB188584 DUCT, FR SIDE VENTILATOR, LH |
MB188584 |
US $45.14 |
||
|
86625R
|
86625R
MB188585 DUCT, FR SIDE VENTILATOR, RH |
MB188585 |
US $45.14 |
||
|
86641
|
86641
MB188589 DUCT, VENTILATOR, CTR |
MB188589 |
US $45.14 |
||
|
86775
|
86775
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
