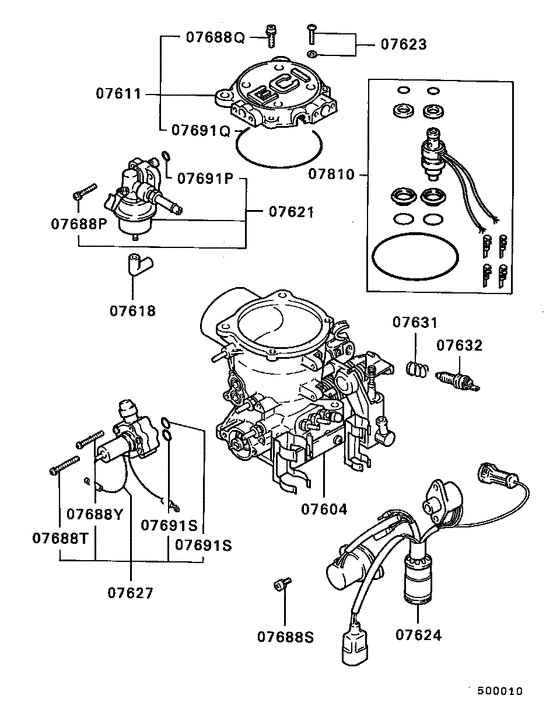

Injection mixer (-8403.3 2-VALVE (INNER PARTS)) Diagram Mitsubishi STARION
- Year
- 1982 - 1984
- Sales region
- Japan
- Note
- GSR-X,5FM/T
- transmission
- 5FM/T
- grade
- GSR-X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07604
|
07604
MD608856 BODY, INJECTION MIXER |
MD608856 |
US $546 |
||
|
07604
|
07604
MD608887 BODY, INJECTION MIXER |
MD608887 |
US $546 |
||
|
07611
|
07611
MD608872 COVER KIT, INJECTION MIXER TOP |
MD608872 |
US $423.70 |
||
|
07618
|
07618
MD600455
HOSE, CARB INR
|
MD600455 |
— | ||
|
07618
|
07618
MD608822
HOSE, INJECTION MIXER UPR BODY VACUUM
|
MD608822 |
— | ||
|
07621
|
07621
MD608852 REGULATOR, INJECTION MIXER FUEL PRESSURE |
MD608852 |
US $518.34 |
||
|
07623
|
07623
MD608886 SCREW & WASHER, INJECTION MIXER INR |
MD608886 |
US $5.92 |
||
|
07624
|
07624
MD065010 SENSOR, INJECTION MIXER THROTTLE |
MD065010 |
US $489.22 |
||
|
07624
|
07624
MD608854 SENSOR, INJECTION MIXER THROTTLE |
MD608854 |
US $518.34 |
||
|
07627
|
07627
MD608862 SOLENOID, INJECTION MIXER IDLE UP |
MD608862 |
US $204.24 |
||
|
07631
|
07631
MD061438
SPRING, INJECTION MIXER IDLE SWITCH
|
MD061438 |
— | ||
|
07632
|
07632
MD608802
SWITCH, INJECTION MIXER IDLE
|
MD608802 |
— | ||
|
07688P
|
07688P
MF350052 SCREW, CARB INR |
MF350052 |
US $3.28 |
||
|
07688Q
|
07688Q
MF350051 SCREW, CARB INR |
MF350051 |
US $3.01 |
||
|
07688S
|
07688S
MD614065 SCREW, INJECTION MIXER INRWasher assembled,4x12 |
MD614065 |
US $7.84 |
||
|
07688S
|
07688S
MF350025 SCREW, FUEL TANKWasher assembled,4x12 |
MF350025 |
US $2.07 |
||
|
07688S
|
07688S
MF350745 SCREW, FUEL RETURN LINEWasher assembled,4x12 |
MF350745 |
US $0.74 |
||
|
07688T
|
07688T
MF350034 SCREW, INJECTION MIXER INRWasher assembled,4x32 |
MF350034 |
US $3.11 |
||
|
07688Y
|
07688Y
MF350033 SCREW, INJECTION MIXER INRWasher assembled,4x30 |
MF350033 |
US $3.11 |
||
|
07691P
|
07691P
MD608882 O-RING, INJECTION MIXER INR |
MD608882 |
US $5.48 |
||
|
07691Q
|
07691Q
MD608884
O-RING, INJECTION MIXER INR
|
MD608884 |
— | ||
|
07691S
|
07691S
MD608885
O-RING, INJECTION MIXER INR
|
MD608885 |
— | ||
|
07810
|
07810
MD608868
INJECTOR KIT, FUEL
|
MD608868 |
— |
