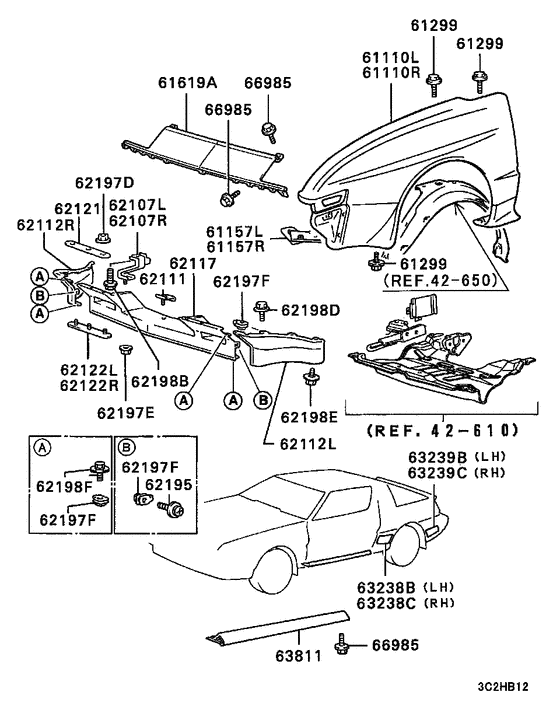

Fender & front end cover (ALL) Diagram Mitsubishi STARION
- Year
- 1986 - 1988
- Sales region
- Japan
- Note
- GSR-VR(OVER FENDER),5FM/T
- transmission
- 5FM/T
- grade
- GSR-VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61110L
|
61110L
MB549309 FENDER, FR LH |
MB549309 |
US $969.70 |
||
|
61110R
|
61110R
MB549310 FENDER, FR RH |
MB549310 |
US $969.70 |
||
|
61157L
|
61157L
MB506255
STAY, FR FENDER, LH
|
MB506255 |
— | ||
|
61157R
|
61157R
MB506256
STAY, FR FENDER, RH
|
MB506256 |
— | ||
|
61299
|
61299
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
61619A
|
61619A
MB296030
PANEL ASSY, FR END
|
MB296030 |
— | ||
|
62107L
|
62107L
MB369692
BRACKET, AIR DAM SKIRT PANEL, LH
|
MB369692 |
— | ||
|
62107R
|
62107R
MB369693
BRACKET, AIR DAM SKIRT PANEL, RH
|
MB369693 |
— | ||
|
62111
|
62111
MB480110 BRACKET, AIR DAM SKIRT PANEL, CTR |
MB480110 |
US $5.03 |
||
|
62112L
|
62112L
MB494887 AIR DAM, SIDE, LH |
MB494887 |
US $324.69 |
||
|
62112L
|
62112L
MB494888 AIR DAM, SIDE, LH |
MB494888 |
US $324.69 |
||
|
62112L
|
62112L
MB494889 AIR DAM, SIDE, LH |
MB494889 |
US $324.69 |
||
|
62112L
|
62112L
MB707802 AIR DAM, SIDE, LH |
MB707802 |
US $324.69 |
||
|
62112L
|
62112L
MB707804
AIR DAM, SIDE, LH
|
MB707804 |
— | ||
|
62112R
|
62112R
MB494892 AIR DAM, SIDE, RH |
MB494892 |
US $324.69 |
||
|
62112R
|
62112R
MB494893 AIR DAM, SIDE, RH |
MB494893 |
US $324.69 |
||
|
62112R
|
62112R
MB494894 AIR DAM, SIDE, RH |
MB494894 |
US $324.69 |
||
|
62112R
|
62112R
MB707805 AIR DAM, SIDE, RH |
MB707805 |
US $136.90 |
||
|
62112R
|
62112R
MB707807
AIR DAM, SIDE, RH
|
MB707807 |
— | ||
|
62117
|
62117
MB494882 PANEL, AIR DAM SKIRT, CTR |
MB494882 |
US $1,142.96 |
||
|
62117
|
62117
MB494883 PANEL, AIR DAM SKIRT, CTR |
MB494883 |
US $860.50 |
||
|
62117
|
62117
MB494884 PANEL, AIR DAM SKIRT, CTR |
MB494884 |
US $860.50 |
||
|
62117
|
62117
MB597032 AIR DAM, CTR |
MB597032 |
US $1,144.42 |
||
|
62117
|
62117
MB597033
AIR DAM, CTR
|
MB597033 |
— | ||
|
62117
|
62117
MB707798 PANEL, AIR DAM SKIRT, CTR |
MB707798 |
US $860.50 |
||
|
62117
|
62117
MB707800
PANEL, AIR DAM SKIRT, CTR
|
MB707800 |
— | ||
|
62117
|
62117
MB725087
AIR DAM, CTR
|
MB725087 |
— | ||
|
62117
|
62117
MB725088
AIR DAM, CTR
|
MB725088 |
— | ||
|
62117
|
62117
MB725089
AIR DAM, CTR
|
MB725089 |
— | ||
|
62121
|
62121
MB369370
PLATE, AIR DAM SKIRT PANEL
|
MB369370 |
— | ||
|
62122L
|
62122L
MB369694
PLATE, AIR DAM SKIRT PANEL, LWR LH
|
MB369694 |
— | ||
|
62122R
|
62122R
MB369695
PLATE, AIR DAM SKIRT PANEL, LWR RH
|
MB369695 |
— | ||
|
62195
|
62195
MS350144 SCREW, HOOD LOCKINGWasher assembled,5x20 |
MS350144 |
US $2.37 |
||
|
62197D
|
62197D
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
62197E
|
62197E
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
62197F
|
62197F
MB406404 NUT, AIR DAMPlate,5 |
MB406404 |
from US $2.55 |
||
|
62198B
|
62198B
MS100222 BOLT, RESISTORFlange,6x14 |
MS100222 |
from US $0.57 |
||
|
62198B
|
62198B
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
62198D
|
62198D
MF247206 BOLT, EMISSION SOLENOID VALVEWasher assembled,5x20 |
MF247206 |
US $2.52 |
||
|
62198E
|
62198E
MB233737 BOLT, AIR DAMWasher assembled,6x18 |
MB233737 |
US $3.26 |
||
|
62198F
|
62198F
MF247204 BOLT, AIR DAMWasher assembled,5x16 |
MF247204 |
US $2.52 |
||
|
63238B
|
63238B
MB480163 PROTECTOR, QTR PANEL, FR |
MB480163 |
US $106.56 |
||
|
63238C
|
63238C
MB480164 PROTECTOR, QTR PANEL, FR |
MB480164 |
US $106.56 |
||
|
63239B
|
63239B
MB480165 PROTECTOR, QTR PANEL, RR |
MB480165 |
US $60.68 |
||
|
63239C
|
63239C
MB480166 PROTECTOR, QTR PANEL, RR |
MB480166 |
US $60.68 |
||
|
63811
|
63811
MB506094
PANEL, SIDE STEP
|
MB506094 |
— | ||
|
66985
|
66985
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
42 610
|
Loose panel
42 610
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
|
42 650
|
Plugs,covers & shield
42 650
|
||||
