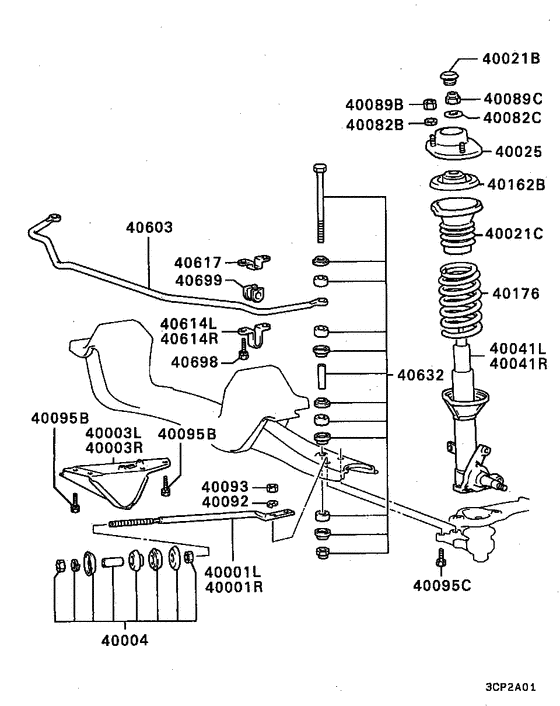

Front susp strut & spring (STABILIZER,STRUT ETC.) Diagram Mitsubishi STARION
- Year
- 1986 - 1988
- Sales region
- Japan
- Note
- GSR-VR(OVER FENDER),5FM/T
- transmission
- 5FM/T
- grade
- GSR-VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40001L
|
40001L
MB430553 BAR, FR SUSP STRUT, LH |
MB430553 |
US $65.12 |
||
|
40001R
|
40001R
MB430554 BAR, FR SUSP STRUT, RH |
MB430554 |
US $65.12 |
||
|
40003L
|
40003L
MB430555 BRACKET, FR SUSP STRUT BAR, LH |
MB430555 |
US $97.68 |
||
|
40003R
|
40003R
MB430556 BRACKET, FR SUSP STRUT BAR, RH |
MB430556 |
US $97.68 |
||
|
40004
|
40004
MB175619 BUSHING KIT, FR SUSP STRUT BAR |
MB175619 |
US $53.28 |
||
|
40021B
|
40021B
MB109960 COVER, FR SUSP STRUT31.5 |
MB109960 |
from US $2.87 |
||
|
40021C
|
40021C
MB109832
COVER, FR SUSP STRUT
|
MB109832 |
— | ||
|
40025
|
40025
MB175710
INSULATOR, FR SUSP STRUT
|
MB175710 |
— | ||
|
40041L
|
40041L
MB573015 STRUT, FR SUSP, LH |
MB573015 |
US $553.28 |
||
|
40041R
|
40041R
MB573016 STRUT, FR SUSP, RH |
MB573016 |
US $553.28 |
||
|
40082B
|
40082B
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.43 |
||
|
40082C
|
40082C
MA150669 WASHER, FR SUSP STRUTPlain,12.5 |
MA150669 |
US $3.26 |
||
|
40089B
|
40089B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
40089C
|
40089C
MS440003 NUT, FR SUSP STRUTSelf locking,12 |
MS440003 |
US $6.16 |
||
|
40092
|
40092
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
40093
|
40093
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.72 |
||
|
40095B
|
40095B
MB002049 BOLT, FR SUSP STRUT BAR10x25 |
MB002049 |
US $4.88 |
||
|
40095C
|
40095C
MB175646 BOLT, FR SUSP STRUT BAR10x40 |
MB175646 |
US $3.55 |
||
|
40162B
|
40162B
MA150624
SEAT, FR SUSP SPRING, UPR
|
MA150624 |
— | ||
| replacement | |||||
|
40162B
|
40162B
MB573138
SEAT, FR SUSP SPRING, UPR
|
MB573138 |
— | ||
|
40162B
|
40162B
MB573138
SEAT, FR SUSP SPRING, UPR
|
MB573138 |
— | ||
|
40176
|
40176
MB430981 SPRING, FR SUSP COIL |
MB430981 |
US $103.60 |
||
|
40603
|
40603
MB573027 BAR, FR SUSP STABILIZER23 |
MB573027 |
US $177.60 |
||
|
40614L
|
40614L
MB175726 BRACKET, FR SUSP STABILIZER BAR, LWR LH |
MB175726 |
US $9.18 |
||
|
40614R
|
40614R
MB175727 BRACKET, FR SUSP STABILIZER BAR, LWR RH |
MB175727 |
US $9.18 |
||
|
40617
|
40617
MB175725 BRACKET, FR SUSP STABILIZER BAR, UPR |
MB175725 |
US $6.07 |
||
|
40632
|
40632
MB241429 LINK KIT, FR SUSP STABILIZER10x142 |
MB241429 |
US $25.16 |
||
|
40698
|
40698
MF240053 BOLT, CYLINDER HEADWasher assembled,8x20 |
MF240053 |
from US $1.33 |
||
|
40699
|
40699
MB573026
BUSHING, FR SUSP STABILIZER
|
MB573026 |
— | ||
