	Description	OEM Part #	Price
05186	05186 MB009102 VALVE, FUEL TANK VAPOR HOSE 2-WAY	MB009102	US $30.78
05300	05300 MB504735 FUEL FILTER	MB504735	US $105.08
05316B	05316B MB433990 HOSE, FUEL FILTER HIGH PRESSURE	MB433990	US $136.16
05316C	05316C MB433978 HOSE, FUEL FILTER HIGH PRESSURE	MB433978	—
05421	05421 MB181771 TUBE, FUEL MAIN	MB181771	US $97.68
05429	05429 MB181773 TUBE, INJECTION PUMP FUEL RETURN	MB181773	US $97.68
05431	05431 MB129567 PROTECTOR, FUEL PIPE	MB129567	US $6.66
05453B	05453B MB181583 SUPPORT, FUEL LINE	MB181583	US $4.44
05453C	05453C MB181584 SUPPORT, FUEL LINE	MB181584	US $4.44
05453D	05453D MB052983 SUPPORT, FUEL LINE	MB052983	—
05453E	05453E MB129884 SUPPORT, FUEL LINE	MB129884	US $3.69
05456	05456 MB554316 O-RING, FUEL LINE	MB554316	US $5.03
05473B	05473B MB503823 CLIP, FUEL RETURN LINE 12	MB503823	US $5.61
05473D	05473D MS660175 CLIP, ROCKER COVER D=12.5	MS660175	from US $1.46
05481	05481 MF450405 WASHER, CYLINDER HEAD Spring,8	MF450405	from US $0.43
05488	05488 MF430005 NUT, ROCKER COVER 8	MF430005	from US $1.01
05489	05489 MF660064 GASKET, CYLINDER BLOCK D=12	MF660064	from US $0.57
05493C	05493C MB181580 CLIP, FUEL LINE 8,8	MB181580	US $3.15
05493D	05493D MB129999 CLIP, FUEL RETURN LINE D=4.6,d=6.2	MB129999	US $3.97
05493E	05493E MB129931 CLIP, FUEL LINE 8-8-4.5-6	MB129931	US $3.26
05493F	05493F MU481120 CLIP, FUEL LINE 12-12	MU481120	US $4.88
05496B	05496B MS240094 BOLT, FUEL TANK Washer assembled,6x12	MS240094	US $2.60
05496C	05496C MS240141 BOLT, FUEL FILLER LID PANEL Washer assembled,6x16	MS240141	from US $1.25
05496D	05496D MF240028 BOLT, FUEL LINE Washer assembled,6x22	MF240028	US $1.92
05496E	05496E MS240036 BOLT, ACCEL CABLE SUPPORT	MS240036	—
05497	05497 MS650013 EYEBOLT, FUEL LINE 12x23	MS650013	from US $3.28
05498C	05498C MB503814 HOSE, FUEL RETURN LINE 7.5	MB503814	US $37.74
05607	05607 MB129500 CANISTER, FUEL VAPOR	MB129500	—
05615	05615 MB181856 HOLDER, FUEL VAPOR CANISTER	MB181856	US $39.22
05617M	05617M MB247764 HOSE, FUEL VAPOR PURGE	MB247764	US $19.98
05617N	05617N MB129705 HOSE, FUEL VAPOR PURGE	MB129705	US $22.94
05617P	05617P MB247765 HOSE, FUEL VAPOR PURGE	MB247765	US $5.33
05622B	05622B MB595879 PIPE, FUEL VAPOR	MB595879	US $51.06
05622C	05622C MB595813 PIPE, FUEL VAPOR	MB595813	US $36.26
05958	05958 MS350121 SCREW, FUEL VAPOR CONTROL LINE	MS350121	—
05963B	05963B MS605158 HOSE, EMISSION SOLENOID VALVE 6x2000	MS605158	from US $13.77
05963C	05963C MB129854 HOSE, FUEL VAPOR CONTROL LINE	MB129854	US $6.22
05966D	05966D MS660169 CLIP, FUEL TANK D=10	MS660169	from US $0.92
05966G	05966G MS660166 CLIP, ROCKER COVER D=15.5	MS660166	from US $1.62
05966H	05966H MB247763 CLIP, FUEL VAPOR CONTROL LINE 17	MB247763	US $6.22
05966J	05966J MS660164 CLAMP, T/M OIL COOLER LINE D=13.1	MS660164	from US $1.13
05966K	05966K MF477022 CLIP, FUEL FILLER LID LOCKING D=6	MF477022	US $1.64
05966M	05966M MB220789 CLIP, FUEL VAPOR CONTROL LINE 5-5	MB220789	US $5.03
05966N	05966N MU470027 CLIP, FUEL VAPOR CONTROL LINE 5-6.5	MU470027	US $4.59
05968	05968 MB129998 CAP, FUEL VAPOR CONTROL LINE	MB129998	US $5.18
05971B	05971B MF243648 BOLT, ENG SUPPORT ROD Washer assembled,8x14	MF243648	from US $0.88
05971D	05971D MF240024 BOLT, FUEL TANK Washer assembled,6x14	MF240024	US $2.60
05972D	05972D MS470087 BAND, FUEL TANK L=122	MS470087	US $0.82
13 010	Fuel tank 13 010
13 040	Fuel Pump 13 040
13 510	Injection mixer 13 510
13 510	Injection mixer 13 510
15 010	Air cleaner 15 010
15 710	Emission control 15 710
15 710	Emission control 15 710

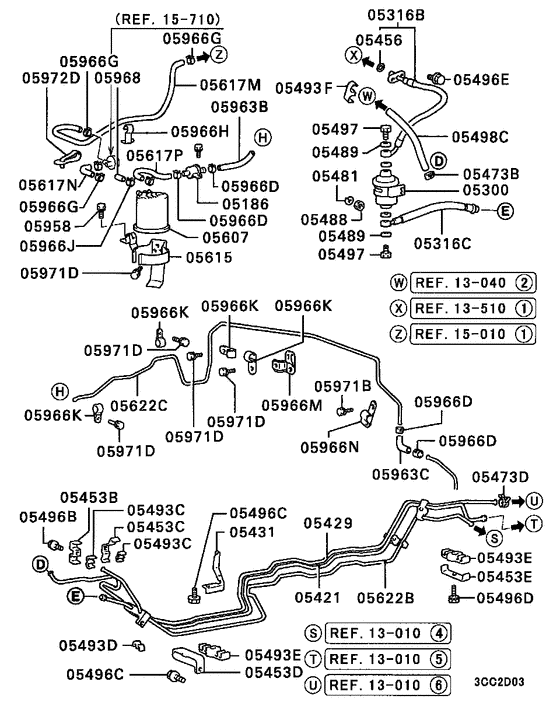

Fuel line & vapor gas control (ALL) Diagram Mitsubishi STARION Japan 7924985-626784

Fuel line & vapor gas control (ALL) Diagram Mitsubishi STARION Japan 7924985-626784
