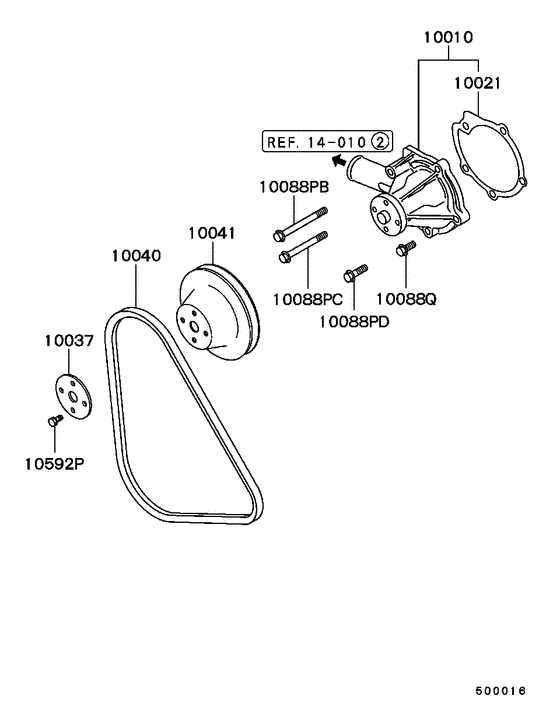

Water pump (ALL) Diagram Mitsubishi STARION
- Year
- 1988 - 1990
- Sales region
- Japan
- Note
- GSR-VR(OVER FENDER),5FM/T
- transmission
- 5FM/T
- grade
- GSR-VR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10010
|
10010
MD997404 WATER PUMP KIT |
MD997404 |
US $296 |
||
|
10010
|
10010
MD997623 WATER PUMP KIT |
MD997623 |
US $294.11 |
||
|
10021
|
10021
MD021495 Gasket, Water Pump |
MD021495 |
US $6.22 |
||
|
10021
|
10021
MD149375 Gasket, Water Pump |
MD149375 |
US $7.99 |
||
|
10037
|
10037
MD106122 PLATE, WATER PUMP PULLEY |
MD106122 |
US $9.03 |
||
|
10040
|
10040
MD127134 BELT, ALTERNATOR & OTHERS964 |
MD127134 |
US $42.92 |
||
|
10041
|
10041
MD075187 PULLEY, WATER PUMPV-ditch |
MD075187 |
US $44.40 |
||
|
10088PB
|
10088PB
MS101249 BOLT, TIMING CHAIN CASEFlange,8x88 |
MS101249 |
US $3.11 |
||
|
10088PC
|
10088PC
MS101247 BOLT, TIMING POWER TRAIN CASEFlange,8x78 |
MS101247 |
US $3.11 |
||
|
10088PD
|
10088PD
MS101239 BOLT, WATER PUMPFlange,8x23 |
MS101239 |
US $2.22 |
||
|
10088Q
|
10088Q
MF140028 BOLT, ENG MECHANICAL GOVERNORFlange,8x28 |
MF140028 |
from US $1.74 |
||
|
10592P
|
10592P
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
