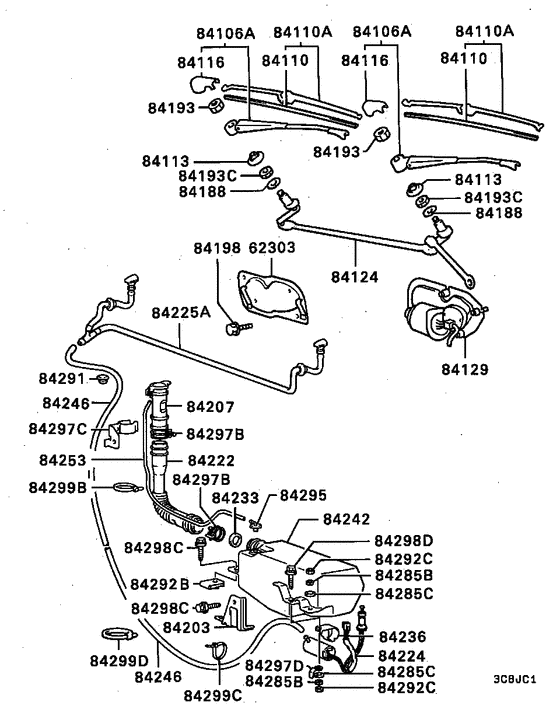

Windshield wiper & washer (8804.1-) Diagram Mitsubishi STARION
- Year
- 1988 - 1990
- Sales region
- Japan
- Note
- GSR-VR(OVER FENDER),5FM/T
- transmission
- 5FM/T
- grade
- GSR-VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62303
|
62303
MB183825 COVER, COWL TOP, OTR |
MB183825 |
US $15.54 |
||
|
84106A
|
84106A
MB183807
ARM ASSY, WINDSHIELD WIPER
|
MB183807 |
— | ||
|
84110
|
84110
MB354889
BLADE, WINDSHIELD WIPER
|
MB354889 |
— | ||
| replacement | |||||
|
84110
|
84110
MB382535
BLADE, WINDSHIELD WIPER
|
MB382535 |
— | ||
|
84110A
|
84110A
MB183810 BLADE ASSY, WINDSHIELD WIPER488 |
MB183810 |
US $48.84 |
||
|
84113
|
84113
MB183826
CAP, WINDSHIELD WIPER PIVOT SEAL
|
MB183826 |
— | ||
|
84116
|
84116
MB261170
COVER, WINDSHIELD WIPER ARM HEAD
|
MB261170 |
— | ||
|
84124
|
84124
MB183805
LINK, WINDSHIELD WIPER
|
MB183805 |
— | ||
|
84129
|
84129
MB183835 MOTOR, WINDSHIELD WIPER |
MB183835 |
US $422.24 |
||
|
84188
|
84188
MB261169
WASHER, WINDSHIELD WIPER
|
MB261169 |
— | ||
|
84193
|
84193
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
84193C
|
84193C
MB261168
NUT, WINDSHIELD WIPER
|
MB261168 |
— | ||
|
84198
|
84198
MS240081 BOLT, FUEL RETURN LINEWasher assembled,6x16 |
MS240081 |
US $3.01 |
||
|
84203
|
84203
MB305233 BRACKET, WINDSHIELD WASHER TANK |
MB305233 |
US $16.28 |
||
|
84207
|
84207
MB229423 CAP & HOSE, WINDSHIELD WASHER TANK FILLER |
MB229423 |
US $6.96 |
||
|
84222
|
84222
MB229422 HOSE, WINDSHIELD WASHER TANK FILLER, LWR |
MB229422 |
US $7.99 |
||
|
84224
|
84224
MB305232
MOTOR, WINDSHIELD WASHER
|
MB305232 |
— | ||
|
84225A
|
84225A
MB314902
NOZZLE ASSY, WINDSHIELD WASHER
|
MB314902 |
— | ||
| replacement | |||||
|
84225A
|
84225A
MB183843
NOZZLE ASSY, WINDSHIELD WASHER
|
MB183843 |
— | ||
|
84233
|
84233
MB229437 GASKET, WINDSHIELD WASHER TANK |
MB229437 |
US $2.37 |
||
|
84236
|
84236
MB171598 SUPPORT, WINDSHIELD WASHER MOTOR |
MB171598 |
US $4.14 |
||
|
84242
|
84242
MB358977
TANK, WINDSHIELD WASHER
|
MB358977 |
— | ||
|
84246
|
84246
MS610059 TUBE, HOOD LOCKSoft vinyl,4x2000 |
MS610059 |
US $8.14 |
||
|
84253
|
84253
MS610059 TUBE, HOOD LOCKSoft vinyl,4x2000 |
MS610059 |
US $8.14 |
||
|
84285B
|
84285B
MF450404 WASHER, ENG OIL PANSpring,6 |
MF450404 |
from US $0.62 |
||
|
84285C
|
84285C
MF450004 WASHER, ROCKER COVERPlain,6 |
MF450004 |
from US $0.82 |
||
|
84291
|
84291
MB118900
PLUG, BODY
|
MB118900 |
— | ||
| replacement | |||||
|
84291
|
84291
MU670031 PLUG, FR DOORPlastic,10 |
MU670031 |
from US $2.81 |
||
|
84292B
|
84292B
MS440191 NUT, CRUISE CONTROL ELECTRICALSSpring,6 |
MS440191 |
from US $1.62 |
||
|
84292C
|
84292C
MF430004 NUT, ENG OIL PAN6 |
MF430004 |
from US $0.99 |
||
|
84295
|
84295
MB229424 JOINT, WINDSHIELD WASHER |
MB229424 |
US $1.63 |
||
|
84297B
|
84297B
MB229439 CLAMP, WINDSHIELD WASHER |
MB229439 |
US $1.63 |
||
|
84297C
|
84297C
MB171332 CLAMP, WINDSHIELD WASHER34 |
MB171332 |
US $31.08 |
||
|
84297D
|
84297D
MB229442
CLAMP, WINDSHIELD WASHER
|
MB229442 |
— | ||
|
84298C
|
84298C
MS240142 BOLT, FUEL TANKWasher assembled,6x20 |
MS240142 |
from US $1.07 |
||
|
84298D
|
84298D
MF244826 BOLTWasher assembled,6x20 |
MF244826 |
from US $1.03 |
||
|
84299B
|
84299B
MB229438 BAND, WINDSHIELD WASHER203.2 |
MB229438 |
US $4.14 |
||
|
84299C
|
84299C
MB229443 BAND, WINDSHIELD WASHER140 |
MB229443 |
US $2.66 |
||
|
84299D
|
84299D
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
