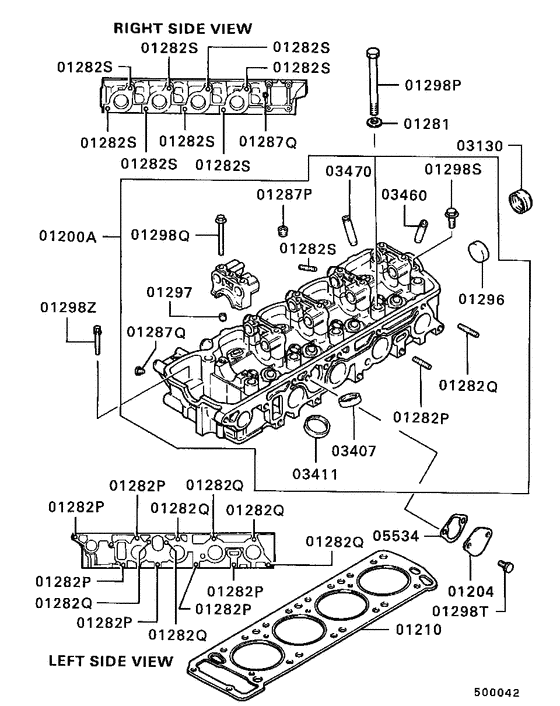

Cylinder head (ALL) Diagram Mitsubishi STARION
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- I/C TURBO EX,5FM/T LHD
- transmission
- 5FM/T
- grade
- I/C EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01200A
|
01200A
MD084427
HEAD ASSY,ENG CYLINDER
|
MD084427 |
— | ||
|
01200A
|
01200A
MD125378
HEAD ASSY, ENG CYLINDER
|
MD125378 |
— | ||
|
01204
|
01204
MD023390 COVER, CYLINDER HEAD FUEL PUMP HOLE |
MD023390 |
US $4.29 |
||
|
01210
|
01210
MD026654 GASKET,CYLINDER HEAD |
MD026654 |
US $72.52 |
||
|
01210
|
01210
MD115646 GASKET, CYLINDER HEAD |
MD115646 |
from US $69.08 |
||
|
01281
|
01281
MD020733 WASHER, CYLINDER HEADPlain,12.5 |
MD020733 |
from US $1.66 |
||
|
01282P
|
01282P
MS401427 STUD, CYLINDER HEAD8x25 |
MS401427 |
from US $1.07 |
||
|
01282Q
|
01282Q
MS401428 STUD, CYLINDER HEAD8x28 |
MS401428 |
US $2.52 |
||
|
01282S
|
01282S
MD005317 STUD, CYLINDER HEAD8x28 |
MD005317 |
from US $2.11 |
||
|
01287P
|
01287P
MD022295 PLUG, CYLINDER HEADTaper,1/4 |
MD022295 |
US $4.10 |
||
|
01287Q
|
01287Q
MD000429 PLUG, CYLINDER HEADTaper,1/16 |
MD000429 |
US $3.42 |
||
|
01296
|
01296
MD000427
CAP, CYLINDER HEAD
|
MD000427 |
— | ||
| replacement | |||||
|
01296
|
01296
MF665542 CAP, CYLINDER BLOCKSealing,40 |
MF665542 |
from US $3.01 |
||
|
01297
|
01297
MS471104 BUSHING, CYLINDER HEAD8x9 |
MS471104 |
from US $1.79 |
||
|
01298P
|
01298P
MD020730 BOLT, CYLINDER HEAD12x120 |
MD020730 |
US $7.25 |
||
|
01298Q
|
01298Q
MD020566 BOLT, CYLINDER HEADFlange,8x70 |
MD020566 |
US $2.87 |
||
|
01298S
|
01298S
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
01298T
|
01298T
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
01298Z
|
01298Z
MS241076 BOLT, CYLINDER HEADWasher assembled,8x50 |
MS241076 |
US $3.56 |
||
|
03130
|
03130
MD072821 OIL SEAL, CAMSHAFT |
MD072821 |
from US $8.07 |
||
|
03407
|
03407
MD026517 SEAT, EXHAUST VALVEO/size 0.30 |
MD026517 |
US $25.90 |
||
|
03407
|
03407
MD026518 SEAT, EXHAUST VALVEO/size 0.60 |
MD026518 |
US $25.90 |
||
|
03411
|
03411
MD026514 SEAT, INLET VALVEO/size 0.30 |
MD026514 |
US $25.90 |
||
|
03411
|
03411
MD026515 SEAT, INLET VALVEO/size 0.60 |
MD026515 |
US $25.90 |
||
|
03460
|
03460
MD020551 GUIDE, INLET VALVEO/size 0.05 |
MD020551 |
from US $5.88 |
||
|
03460
|
03460
MD020552 GUIDE, INLET VALVEO/size 0.25 |
MD020552 |
US $6.36 |
||
|
03460
|
03460
MD020553 GUIDE, INLET VALVEO/size 0.50 |
MD020553 |
US $6.36 |
||
|
03470
|
03470
MD020561 GUIDE, EXHAUST VALVEO/size 0.05 |
MD020561 |
from US $7.80 |
||
|
03470
|
03470
MD020562 GUIDE, EXHAUST VALVEO/size 0.25 |
MD020562 |
US $8.44 |
||
|
03470
|
03470
MD020563 GUIDE, EXHAUST VALVEO/size 0.50 |
MD020563 |
US $8.44 |
||
|
05534
|
05534
MD023388 GASKET, FUEL PUMP |
MD023388 |
US $4.59 |
||
