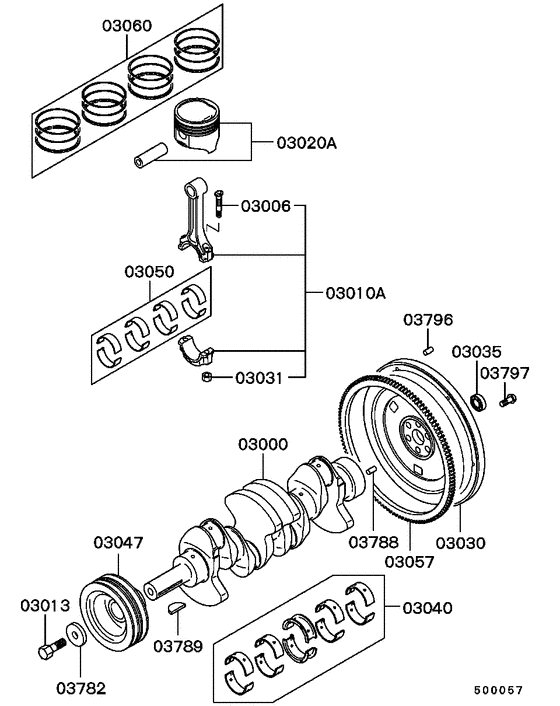

Piston & crankshaft (ALL) Diagram Mitsubishi STARION
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- I/C TURBO EX,5FM/T LHD
- transmission
- 5FM/T
- grade
- I/C EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD027474 CRANKSHAFT |
MD027474 |
US $1,020.66 |
||
|
03006
|
03006
MD021105 BOLT, CONNROD9x57.5 |
MD021105 |
from US $5.62 |
||
|
03010A
|
03010A
MD062165 CONNECTING ROD ASSY |
MD062165 |
US $287.12 |
||
|
03013
|
03013
MD020830 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
MD020830 |
US $5.62 |
||
|
03020A
|
03020A
MD061248
PISTON & PIN ASSY
|
MD061248 |
— | ||
|
03020A
|
03020A
MD061250
PISTON & PIN ASSY
|
MD061250 |
— | ||
|
03020A
|
03020A
MD061251
PISTON & PIN ASSY
|
MD061251 |
— | ||
|
03020A
|
03020A
MD061252
PISTON & PIN ASSY
|
MD061252 |
— | ||
|
03020A
|
03020A
MD061253
PISTON & PIN ASSY
|
MD061253 |
— | ||
|
03020A
|
03020A
MD128449 PISTON & PIN ASSYStd a |
MD128449 |
US $112.48 |
||
|
03020A
|
03020A
MD128450 PISTON & PIN ASSYStd b |
MD128450 |
US $150.96 |
||
|
03020A
|
03020A
MD128451 PISTON & PIN ASSYStd c |
MD128451 |
US $112.48 |
||
|
03020A
|
03020A
MD128456 PISTON & PIN ASSYO/size 0.25 |
MD128456 |
US $150.96 |
||
|
03020A
|
03020A
MD128457 PISTON & PIN ASSYO/size 0.50 |
MD128457 |
US $150.96 |
||
|
03020A
|
03020A
MD128458 PISTON & PIN ASSYO/size 0.75 |
MD128458 |
US $150.96 |
||
|
03020A
|
03020A
MD128459 PISTON & PIN ASSYO/size 1.00 |
MD128459 |
US $150.96 |
||
|
03030
|
03030
MD026786 FLYWHEEL |
MD026786 |
US $214.60 |
||
|
03030
|
03030
MD119905
FLYWHEEL
|
MD119905 |
— | ||
| replacement | |||||
|
03030
|
03030
MD119904
FLYWHEEL ASSY
|
MD119904 |
— | ||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $4.33 |
||
|
03035
|
03035
MD002613
BEARING, FLYWHEEL DRIVE PINION
|
MD002613 |
— | ||
| replacement | |||||
|
03035
|
03035
MD335444 BEARING, FLYWHEEL DRIVE PINIONBall |
MD335444 |
from US $7.45 |
||
|
03040
|
03040
MD026815 BEARING SET, CRANKSHAFTPlain,std |
MD026815 |
US $128.76 |
||
|
03047
|
03047
MD094106
PULLEY,CRANKSHAFT
|
MD094106 |
— | ||
|
03047
|
03047
MD116406 PULLEY, CRANKSHAFTV-ditch |
MD116406 |
US $371.28 |
||
|
03050
|
03050
MD026430
BEARING SET, CONNROD
|
MD026430 |
— | ||
| replacement | |||||
|
03050
|
03050
MD153622 BEARING SET, CONNRODPlain,std |
MD153622 |
from US $68.29 |
||
|
03050
|
03050
MD153622 BEARING SET, CONNRODPlain,std |
MD153622 |
from US $68.29 |
||
|
03057
|
03057
MD024812 RING GEAR, FLYWHEELN=120 |
MD024812 |
from US $118.33 |
||
|
03060
|
03060
MD061258 RING SET, PISTONStd |
MD061258 |
US $254.56 |
||
|
03060
|
03060
MD061259 RING SET, PISTONO/size 0.25 |
MD061259 |
US $264.92 |
||
|
03060
|
03060
MD061260 RING SET, PISTONO/size 0.50 |
MD061260 |
US $254.56 |
||
|
03060
|
03060
MD061261 RING SET, PISTONO/size 0.75 |
MD061261 |
US $264.92 |
||
|
03060
|
03060
MD061262 RING SET, PISTONO/size 1.00 |
MD061262 |
US $254.56 |
||
|
03782
|
03782
MD020831 WASHER, CRANKSHAFT PULLEYPlain,14.5 |
MD020831 |
US $5.62 |
||
|
03788
|
03788
MD005994 PIN, CRANKSHAFTDowel,9x14 |
MD005994 |
US $4.65 |
||
|
03789
|
03789
MD000606 KEY, TIMING BELT TRAINWoodruff,5x9.6 |
MD000606 |
from US $2.26 |
||
|
03796
|
03796
MF472404 PIN, CYLINDER BLOCKDowel,8x18 |
MF472404 |
from US $2.61 |
||
|
03797
|
03797
MD008839 BOLT, FLYWHEELFlange,12x26 |
MD008839 |
from US $2.87 |
||
