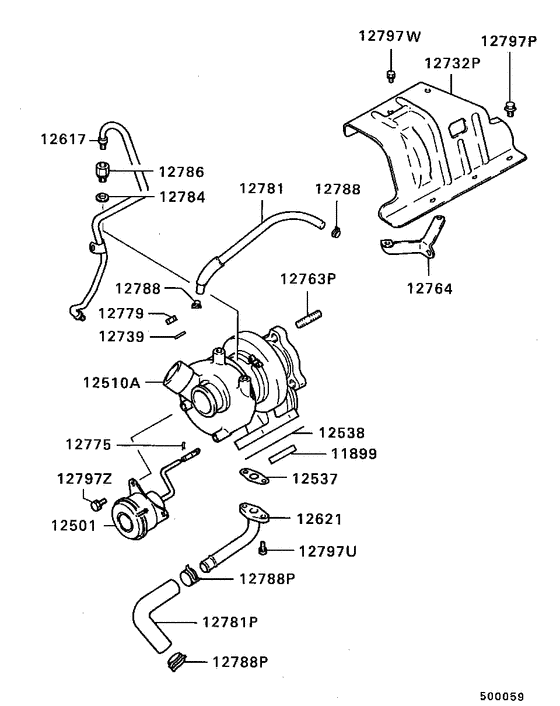

Turbocharger & supercharger (ALL (ASSEMBLY)) Diagram Mitsubishi STARION
- Year
- 1986 - 1990
- Sales region
- EUR
- Note
- I/C TURBO EX,5FM/T LHD
- transmission
- 5FM/T
- grade
- I/C EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11899
|
11899
MD041335 SEAL RING, T/C |
MD041335 |
US $20.72 |
||
|
12501
|
12501
MD092074 ACTUATOR,T/C WASTE GATE |
MD092074 |
US $432.43 |
||
|
12510A
|
12510A
MD092073 TURBOCHARGER SUB ASSY |
MD092073 |
US $4,320 |
||
|
12537
|
12537
MD050082
GASKET, T/C OIL RETURN TUBE
|
MD050082 |
— | ||
| replacement | |||||
|
12537
|
12537
MD194403 GASKET, T/C OIL RETURN TUBE |
MD194403 |
from US $1.81 |
||
|
12537
|
12537
MD145171
GASKET, T/C OIL RETURN TUBE
|
MD145171 |
— | ||
| replacement | |||||
|
12537
|
12537
MD194403 GASKET, T/C OIL RETURN TUBE |
MD194403 |
from US $1.81 |
||
|
12538
|
12538
MD041333
GASKET, T/C EXHAUST OUTLET FITTING
|
MD041333 |
— | ||
|
12617
|
12617
MD084550 TUBE, T/C OIL FEED |
MD084550 |
US $17.02 |
||
|
12621
|
12621
MD011116 TUBE, T/C OIL RETURN |
MD011116 |
US $42.92 |
||
|
12732P
|
12732P
MD087501
PROTECTOR,T/C
|
MD087501 |
— | ||
|
12739
|
12739
MD050076 WASHER, EXHAUST MANIFOLDPlain,10 |
MD050076 |
from US $1.25 |
||
|
12763P
|
12763P
MD050074 STUD, EXHAUST MANIFOLD10x27 |
MD050074 |
from US $8.26 |
||
|
12764
|
12764
MD063898
STAY, T/C
|
MD063898 |
— | ||
|
12775
|
12775
MF472301 PIN, ACCEL CONTROL EQUIPSnap,4x16.3 |
MF472301 |
from US $0.98 |
||
|
12779
|
12779
MD050073 NUT, EXHAUST MANIFOLDJam,10 |
MD050073 |
from US $4.56 |
||
|
12781
|
12781
MD092242 HOSE, T/C |
MD092242 |
US $65.12 |
||
|
12781P
|
12781P
MD011117 HOSE, T/C |
MD011117 |
US $22.20 |
||
|
12784
|
12784
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
12786
|
12786
MD017359
JOINT, T/C
|
MD017359 |
— | ||
|
12788
|
12788
MS660159 CLIP, VACUUM PUMPD=7.8 |
MS660159 |
from US $1.64 |
||
|
12788P
|
12788P
MS660172 CLIP, ENG OIL PAND=23 |
MS660172 |
from US $1.62 |
||
|
12797P
|
12797P
MD067956 BOLT, EXHAUST MANIFOLDFlange,8x12 |
MD067956 |
from US $1.23 |
||
|
12797U
|
12797U
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
12797W
|
12797W
MF244822 BOLT, ACCEL CABLE SUPPORTWasher assembled,6x12 |
MF244822 |
US $2.60 |
||
|
12797Z
|
12797Z
MF241251 BOLT, CYLINDER HEADWasher assembled,8x16 |
MF241251 |
from US $0.98 |
||
