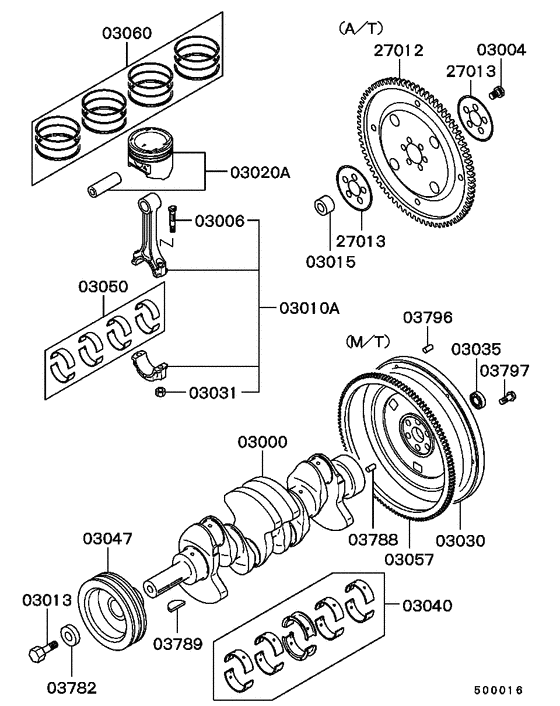

Piston & crankshaft (ALL) Diagram Mitsubishi STARION
- Year
- 1988 - 1990
- Sales region
- Japan
- Note
- GSR-VR(OVER FENDER),4FA/T
- transmission
- 4FA/T
- grade
- GSR-VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
03000
|
03000
MD027474 CRANKSHAFT |
MD027474 |
US $1,020.66 |
||
|
03004
|
03004
MD952233 BOLT, A/T DRIVE PLATE12x17 |
MD952233 |
from US $2.22 |
||
|
03006
|
03006
MD021105 BOLT, CONNROD9x57.5 |
MD021105 |
from US $4.06 |
||
|
03010A
|
03010A
MD062165
CONNECTING ROD ASSY
|
MD062165 |
— | ||
|
03013
|
03013
MD020830 CENTER BOLT, CRANKSHAFT PULLEY14x40 |
MD020830 |
US $5.62 |
||
|
03015
|
03015
MD712996 BUSHING, CRANKSHAFT |
MD712996 |
US $14.36 |
||
|
03020A
|
03020A
MD128449
PISTON & PIN ASSY
|
MD128449 |
— | ||
|
03020A
|
03020A
MD128450 PISTON & PIN ASSYStd b |
MD128450 |
US $150.96 |
||
|
03020A
|
03020A
MD128451 PISTON & PIN ASSYStd c |
MD128451 |
US $112.48 |
||
|
03020A
|
03020A
MD128456 PISTON & PIN ASSYO/size 0.25 |
MD128456 |
US $150.96 |
||
|
03020A
|
03020A
MD128457 PISTON & PIN ASSYO/size 0.50 |
MD128457 |
US $150.96 |
||
|
03020A
|
03020A
MD128458 PISTON & PIN ASSYO/size 0.75 |
MD128458 |
US $150.96 |
||
|
03020A
|
03020A
MD128459 PISTON & PIN ASSYO/size 1.00 |
MD128459 |
US $150.96 |
||
|
03031
|
03031
MD006704 NUT, CONNROD9 |
MD006704 |
from US $3.88 |
||
|
03040
|
03040
MD026815 BEARING SET, CRANKSHAFTPlain,std |
MD026815 |
US $128.76 |
||
|
03047
|
03047
MD116406 PULLEY, CRANKSHAFTV-ditch |
MD116406 |
US $371.28 |
||
|
03050
|
03050
MD109275 BEARING SET, CONNRODPlain,std |
MD109275 |
US $74 |
||
|
03050
|
03050
MD153622 BEARING SET, CONNRODPlain,std |
MD153622 |
from US $82.72 |
||
|
03060
|
03060
MD061258
RING SET, PISTON
|
MD061258 |
— | ||
|
03060
|
03060
MD061259 RING SET, PISTONO/size 0.25 |
MD061259 |
US $264.92 |
||
|
03060
|
03060
MD061260 RING SET, PISTONO/size 0.50 |
MD061260 |
US $254.56 |
||
|
03060
|
03060
MD061261 RING SET, PISTONO/size 0.75 |
MD061261 |
US $264.92 |
||
|
03060
|
03060
MD061262 RING SET, PISTONO/size 1.00 |
MD061262 |
US $254.56 |
||
|
03782
|
03782
MD020831 WASHER, CRANKSHAFT PULLEYPlain,14.5 |
MD020831 |
US $5.62 |
||
|
03789
|
03789
MD000606 KEY, TIMING BELT TRAINWoodruff,5x9.6 |
MD000606 |
from US $2.13 |
||
|
03797
|
03797
MD008839 BOLT, FLYWHEELFlange,12x26 |
MD008839 |
from US $3.08 |
||
|
27012
|
27012
MD726131 PLATE, A/T DRIVE |
MD726131 |
US $436.80 |
||
|
27013
|
27013
MD952138 PLATE, A/T DRIVE PLATE ADAPTER |
MD952138 |
US $13.13 |
