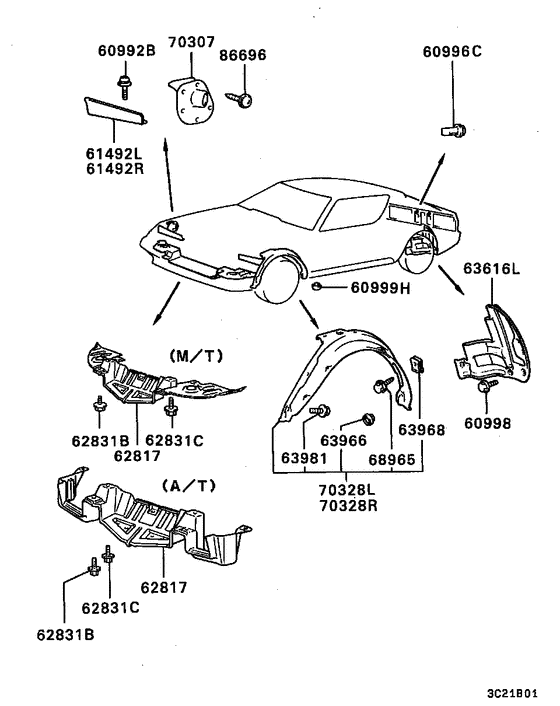

Plugs,covers & shield (SPLASH SHIELD ETC.) Diagram Mitsubishi STARION
- Year
- 1988 - 1990
- Sales region
- Japan
- Note
- GSR-VR(OVER FENDER),4FA/T
- transmission
- 4FA/T
- grade
- GSR-VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60992B
|
60992B
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
60996C
|
60996C
MB078401 GROMMET, BODYScrew,6 |
MB078401 |
US $2.37 |
||
|
60998
|
60998
MS100222 BOLT, RESISTORFlange,6x14 |
MS100222 |
from US $0.57 |
||
|
60999H
|
60999H
MU670025 PLUG, BODY30 |
MU670025 |
from US $2.11 |
||
|
61492L
|
61492L
MB233258 PROTECTOR, HEADLAMP HOOD, LH |
MB233258 |
US $48.84 |
||
|
61492R
|
61492R
MB233259 PROTECTOR, HEADLAMP HOOD, RH |
MB233259 |
US $48.84 |
||
|
62817
|
62817
MB586900 PANEL, AIR GUIDE |
MB586900 |
US $128.76 |
||
|
62831B
|
62831B
MS100222 BOLT, RESISTORFlange,6x14 |
MS100222 |
from US $0.57 |
||
|
62831C
|
62831C
MS240396 BOLT, AIR GUIDE PANELWasher assembled,8x16 |
MS240396 |
US $2.52 |
||
|
63616L
|
63616L
MB159852
COVER, RR WHEELHOUSE FUEL PIPE, LH
|
MB159852 |
— | ||
|
63966
|
63966
MU670025 PLUG, BODY30 |
MU670025 |
from US $2.11 |
||
|
63968
|
63968
MB138567 GROMMET, SPLASH SHIELD6 |
MB138567 |
from US $2.13 |
||
|
63981
|
63981
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
70307
|
70307
MB233173 DUCT, FR SPLASH SHIELD VENTILATOR AIR |
MB233173 |
US $18.50 |
||
|
70328L
|
70328L
MB527453
SHIELD KIT, SPLASH, FR LH
|
MB527453 |
— | ||
|
70328R
|
70328R
MB527454
SHIELD KIT, SPLASH, FR RH
|
MB527454 |
— | ||
|
86696
|
86696
MS450156 SCREW, CRUISE CONTROL ELECTRICALSTapping(flange head),5x12 |
MS450156 |
from US $3.16 |
