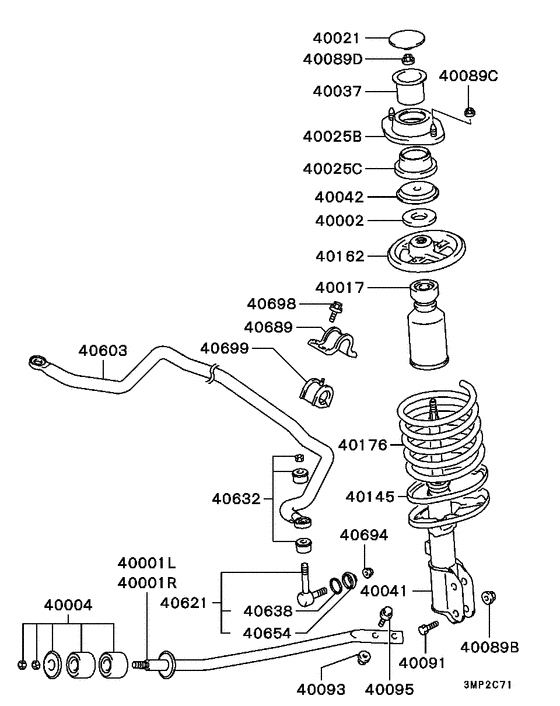

Front susp strut & spring (ALL) Diagram Mitsubishi TOPPO BJ WIDE
- Year
- 1998 - 2001
- Sales region
- Japan
- Note
- M(WIDE),4FA/T
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40001L
|
40001L
MR319079 BAR, FR SUSP STRUT, LH |
MR319079 |
US $56.24 |
||
|
40001R
|
40001R
MR319080 BAR, FR SUSP STRUT, RH |
MR319080 |
US $56.24 |
||
|
40002
|
40002
MR197398 BEARING, FR SUSP STRUT |
MR197398 |
from US $2.63 |
||
|
40004
|
40004
MR496724 BUSHING KIT, FR SUSP STRUT BAR |
MR496724 |
US $20.72 |
||
|
40017
|
40017
MR319104 DAMPER, FR SUSP STRUT |
MR319104 |
US $21.20 |
||
|
40021
|
40021
MR210686 COVER, FR SUSP STRUT |
MR210686 |
from US $3.94 |
||
|
40025B
|
40025B
MR319103
INSULATOR, FR SUSP STRUT
|
MR319103 |
— | ||
| replacement | |||||
|
40025B
|
40025B
4060A645 INSULATOR, FR SUSP STRUT |
4060A645 |
US $19.15 |
||
|
40025C
|
40025C
MR319105 INSULATOR, FR SUSP STRUT |
MR319105 |
from US $18.06 |
||
|
40037
|
40037
MB349131 STOPPER, FR SUSP STRUT |
MB349131 |
US $15.05 |
||
|
40041
|
40041
MR448343 STRUT, FR SUSP |
MR448343 |
US $403.31 |
||
|
40042
|
40042
MB633210 SUPPORT, FR SUSP STRUT |
MB633210 |
from US $3.47 |
||
|
40089B
|
40089B
MU434004 NUT, FR SUSP LWR ARMFlange self locking,12 |
MU434004 |
from US $2.54 |
||
|
40089C
|
40089C
MF434105 NUT, CYLINDER BLOCKFlange,10 |
MF434105 |
from US $1.19 |
||
|
40089D
|
40089D
MB288463 NUT, FR WHEEL HUBFlange self locking,12 |
MB288463 |
US $3.42 |
||
|
40089D
|
40089D
MU434004 NUT, FR SUSP LWR ARMFlange self locking,12 |
MU434004 |
from US $2.54 |
||
|
40091
|
40091
MU140034 BOLT, FR SUSP LWR ARM |
MU140034 |
US $3.55 |
||
|
40091
|
40091
MU140059 BOLT, FR SUSP STRUT |
MU140059 |
US $6.22 |
||
|
40093
|
40093
MD189541 NUT, STARTERFlange,10 |
MD189541 |
US $2.07 |
||
|
40095
|
40095
MB160664 BOLT, FR AXLE SHAFT10x29 |
MB160664 |
US $3.97 |
||
|
40145
|
40145
MR131879 PAD, FR SUSP SPRING, LWR |
MR131879 |
from US $7.99 |
||
|
40162
|
40162
MR448347 SEAT, FR SUSP SPRING, UPR |
MR448347 |
US $37 |
||
|
40176
|
40176
MR448341
SPRING, FR SUSP COIL
|
MR448341 |
— | ||
|
40603
|
40603
MR319191 BAR, FR SUSP STABILIZER22 |
MR319191 |
US $210.16 |
||
|
40621
|
40621
MR319147
LINK, FR SUSP STABILIZER
|
MR319147 |
— | ||
| replacement | |||||
|
40621
|
40621
4056A040 LINK, FR SUSP STABILIZER |
4056A040 |
from US $22.72 |
||
|
40632
|
40632
MR485494
LINK KIT, FR SUSP STABILIZER
|
MR485494 |
— | ||
| replacements | |||||
|
40632
|
40632
4056A010 BUSHING FR SUSP STAB |
4056A010 |
from US $2.42 |
||
|
40632
|
40632
MF925505 NUT, RR SUSP COIL SPRING |
MF925505 |
from US $2.75 |
||
|
40638
|
40638
MB892989 RING, SUSP STABILIZER LINK DUST COVER |
MB892989 |
US $8.34 |
||
|
40654
|
40654
MB518785 COVER, FR SUSP STABILIZER LINK BALL JOINT DUST |
MB518785 |
from US $7.80 |
||
|
40689
|
40689
MR403646 BRACKET, FR SUSP STABILIZER BAR |
MR403646 |
from US $3.22 |
||
|
40694
|
40694
MB573546
NUT, FR SUSP STABILIZER
|
MB573546 |
— | ||
| replacement | |||||
|
40694
|
40694
MS440002 NUT, ENG RR MOUNTINGSelf locking,10 |
MS440002 |
from US $1.93 |
||
|
40698
|
40698
MF140225 BOLT, ENG WATER COOLERFlange,8x20 |
MF140225 |
from US $0.98 |
||
|
40699
|
40699
MR403645 BUSHING, FR SUSP STABILIZER22 |
MR403645 |
US $6.36 |
||
| replacement | |||||
|
40699
|
40699
4056A004 BUSHING, FR SUSP STABILIZER |
4056A004 |
from US $8.83 |
||
