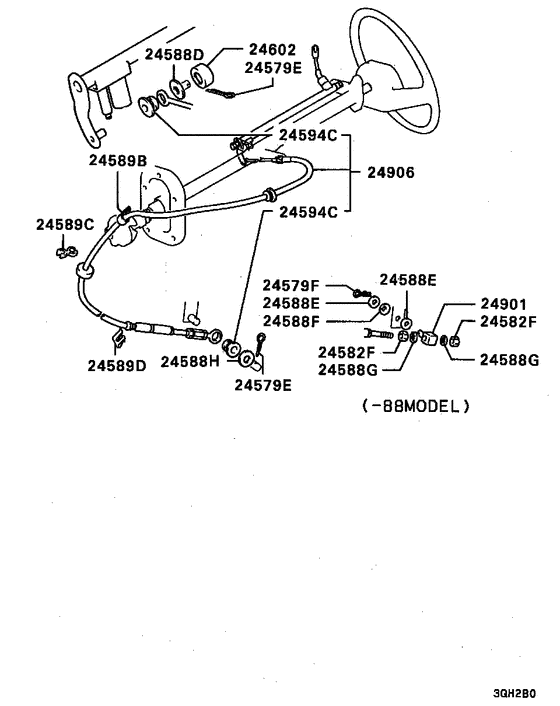

A/t column shift linkage (CABLE ETC.) Diagram Mitsubishi TRUCK
- Year
- 1986 - 1989
- Sales region
- MMNA
- Note
- LOW LINE,STD-2WD,4CA/T FED
- drive
- 2WD/2WD
- transmission
- 4CA/T
- grade
- LOW LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24579E
|
24579E
MF472037 PIN, HOIST CONTROL LINKSplit,2x18 |
MF472037 |
from US $0.25 |
||
|
24579E
|
24579E
MF472040 PIN, CLUTCH M/CYLSplit,2x25 |
MF472040 |
US $0.96 |
||
|
24579F
|
24579F
MB180738 PIN, GEARSHIFT LINKSnap,3.6x23.2 |
MB180738 |
US $2.52 |
||
|
24582F
|
24582F
MF430724 NUTJam,6 |
MF430724 |
US $2.60 |
||
|
24588D
|
24588D
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.84 |
||
|
24588E
|
24588E
MF450153 WASHER, TIMING POWER TRAIN CASEPlain,6 |
MF450153 |
from US $0.25 |
||
|
24588F
|
24588F
MV028875 WASHER, M/T CLUTCH CONTROL EQUIPSpring,7 |
MV028875 |
US $2.37 |
||
|
24588G
|
24588G
MF450884 WASHER, GEARSHIFT LINKTooth,6 |
MF450884 |
US $1.78 |
||
|
24588H
|
24588H
MF450005 WASHER, FLYWHEEL HOUSINGPlain,8 |
MF450005 |
from US $1.01 |
||
|
24589B
|
24589B
MB334118
CLIP,HOIST CONTROL LINK
|
MB334118 |
— | ||
|
24589C
|
24589C
MS470465 CLIP, FUEL RETURN LINED=13-16.5 |
MS470465 |
US $3.69 |
||
|
24589D
|
24589D
MB484289 CLIP, GEARSHIFT LINK |
MB484289 |
from US $3.20 |
||
|
24594C
|
24594C
MA103843
BUSHING, GEARSHIFT LINK
|
MA103843 |
— | ||
|
24602
|
24602
MA103844 BOOT, ACCEL PEDAL ROD |
MA103844 |
US $4.65 |
||
|
24901
|
24901
MT204876 ADJUSTER, GEARSHIFT CABLE |
MT204876 |
US $6.81 |
||
|
24906
|
24906
MB367960
CABLE,GEARSHIFT
|
MB367960 |
— | ||
|
24906
|
24906
MB580666
CABLE,GEARSHIFT
|
MB580666 |
— |
