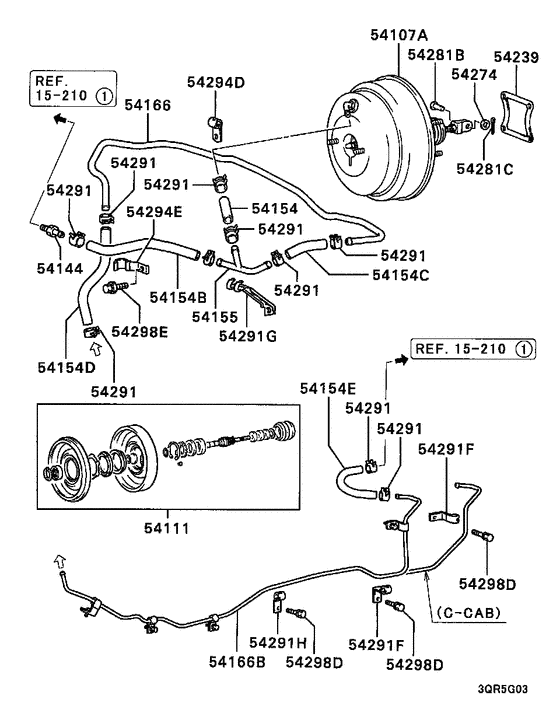

Power brake booster (ABS) Diagram Mitsubishi TRUCK
- Year
- 1989 - 1994
- Sales region
- MMNA
- Note
- LOW LINE,STANDARD-4WD,5FM/T CAL
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- LOW LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54107A
|
54107A
MB618719
BOOSTER ASSY,BRAKE
|
MB618719 |
— | ||
|
54111
|
54111
MB699210 BOOSTER KIT, BRAKE |
MB699210 |
US $227.92 |
||
|
54144
|
54144
MA140192
FITTING, BRAKE BOOSTER VACUUM HOSE
|
MA140192 |
— | ||
| replacement | |||||
|
54144
|
54144
MR493617 FITTING, INLET MANIFOLD VACUUM HOSE |
MR493617 |
US $5.06 |
||
|
54154
|
54154
MB668068
HOSE,BRAKE BOOSTER VACUUM
|
MB668068 |
— | ||
|
54154
|
54154
MB699758
HOSE,BRAKE BOOSTER VACUUM
|
MB699758 |
— | ||
|
54154B
|
54154B
MB699231
HOSE,BRAKE BOOSTER VACUUM
|
MB699231 |
— | ||
|
54154C
|
54154C
MB699248
HOSE,BRAKE BOOSTER VACUUM
|
MB699248 |
— | ||
| replacement | |||||
|
54154C
|
54154C
4635A012 HOSE, BRAKE BOOSTER VACUUMRubber,130 |
4635A012 |
US $7.25 |
||
|
54154D
|
54154D
MB407795
HOSE, BRAKE BOOSTER VACUUM
|
MB407795 |
— | ||
| replacement | |||||
|
54154D
|
54154D
4635A537
HOSE, BRAKE BOOSTER VACUUM
|
4635A537 |
— | ||
|
54154E
|
54154E
MB699757
HOSE,BRAKE BOOSTER VACUUM
|
MB699757 |
— | ||
|
54155
|
54155
MB699232
JOINT,BRAKE BOOSTER
|
MB699232 |
— | ||
|
54166
|
54166
MB699233
PIPE,BRAKE BOOSTER VACUUM
|
MB699233 |
— | ||
|
54166B
|
54166B
MB699747
PIPE,BRAKE BOOSTER VACUUM
|
MB699747 |
— | ||
|
54239
|
54239
MB238089
SEAL, BRAKE BOOSTER BODY
|
MB238089 |
— | ||
| replacement | |||||
|
54239
|
54239
MB928711 SEAL, BRAKE BOOSTER BODY |
MB928711 |
from US $3.30 |
||
|
54274
|
54274
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
54281B
|
54281B
MF473492 PIN, CLUTCH M/CYLClevis,10x23 |
MF473492 |
from US $2.67 |
||
|
54281C
|
54281C
MF472042 PIN, CLUTCH PEDALSplit,2x30 |
MF472042 |
US $0.96 |
||
|
54291
|
54291
MB058828 CLIP, BRAKE BOOSTER16 |
MB058828 |
from US $1.07 |
||
|
54291F
|
54291F
MB699896 CLIP, BRAKE BOOSTER |
MB699896 |
US $5.06 |
||
|
54291G
|
54291G
MB699410
CLIP,BRAKE BOOSTER
|
MB699410 |
— | ||
|
54291H
|
54291H
MB699414
CLIP,BRAKE BOOSTER
|
MB699414 |
— | ||
|
54294D
|
54294D
MB500269 CLAMP, BRAKE BOOSTER10 |
MB500269 |
US $2.96 |
||
|
54294E
|
54294E
MB845639
CLAMP,BRAKE BOOSTER
|
MB845639 |
— | ||
|
54298D
|
54298D
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
54298E
|
54298E
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
15 210
|
Inlet manifold
15 210
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
