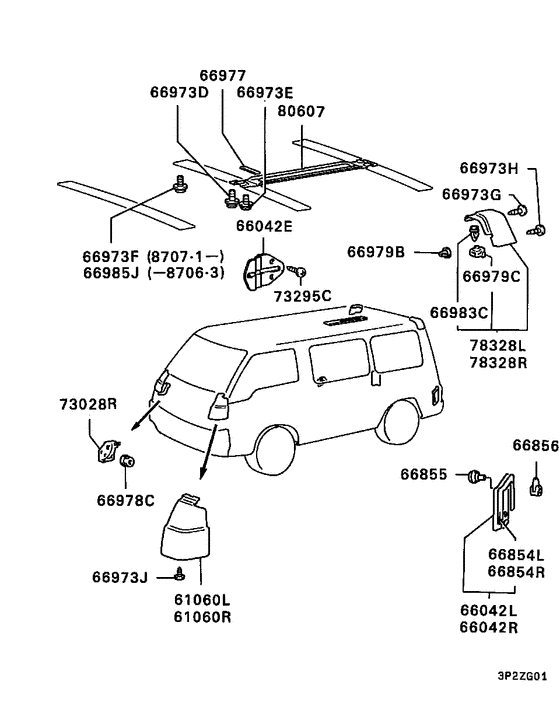

Loose panel (2 OF 2) Diagram Mitsubishi WAGON
- Year
- 1988 - 1990
- Sales region
- MMNA
- Note
- HIGH LINE,WAGON,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61060L
|
61060L
MB549349 PANEL, CAB FR CORNER, LH |
MB549349 |
US $56.98 |
||
|
61060R
|
61060R
MB549350 PANEL, CAB FR CORNER, RH |
MB549350 |
US $56.98 |
||
|
66973D
|
66973D
MB510957 SCREW, BODY LOOSE PANELWasher assembled,5x10 |
MB510957 |
US $4.14 |
||
|
66973E
|
66973E
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
66973F
|
66973F
MU340007 SCREW, BODY LOOSE PANELWasher assembled,6x16 |
MU340007 |
US $3.85 |
||
|
66973G
|
66973G
MF453271 SCREW, AIR CLEANERTapping,5x12 |
MF453271 |
from US $1.40 |
||
|
66973H
|
66973H
MF453275
SCREW, BODY LOOSE PANEL
|
MF453275 |
— | ||
|
66973J
|
66973J
MU461021 SCREW, BODY LOOSE PANELTapping,5x10 |
MU461021 |
US $1.78 |
||
|
66977
|
66977
MB344667 GASKET, BODY LOOSE PANEL |
MB344667 |
US $2.81 |
||
|
66978C
|
66978C
MB133765 NUT, ENG FR MOUNTINGWasher assembled,8 |
MB133765 |
US $1.92 |
||
|
66979B
|
66979B
MB106212
GROMMET, BODY
|
MB106212 |
— | ||
| replacement | |||||
|
66979B
|
66979B
MB132008 GROMMET, EXTERIOR MARK4 |
MB132008 |
from US $1.29 |
||
|
66979C
|
66979C
MB502158 GROMMET, BODY LOOSE PANEL |
MB502158 |
US $5.06 |
||
|
66983C
|
66983C
MB417673 CLIP, RR PILLAR GARNISH7 |
MB417673 |
US $4.38 |
||
|
66985J
|
66985J
MB136891 BOLT, BODY LOOSE PANELWasher assembled,6x14 |
MB136891 |
US $2.96 |
||
|
73028R
|
73028R
MB506818
BRACKET,INSTRUMENT PANEL SIDE,RH
|
MB506818 |
— | ||
|
78328L
|
78328L
MB743879 EXTENSION, ROOF END, LH |
MB743879 |
US $81.40 |
||
|
78328R
|
78328R
MB743880 EXTENSION, ROOF END, RH |
MB743880 |
US $81.40 |
||
|
80607
|
80607
MB507301 BRACKET, BODY LOOSE PANEL |
MB507301 |
US $22.20 |
||
