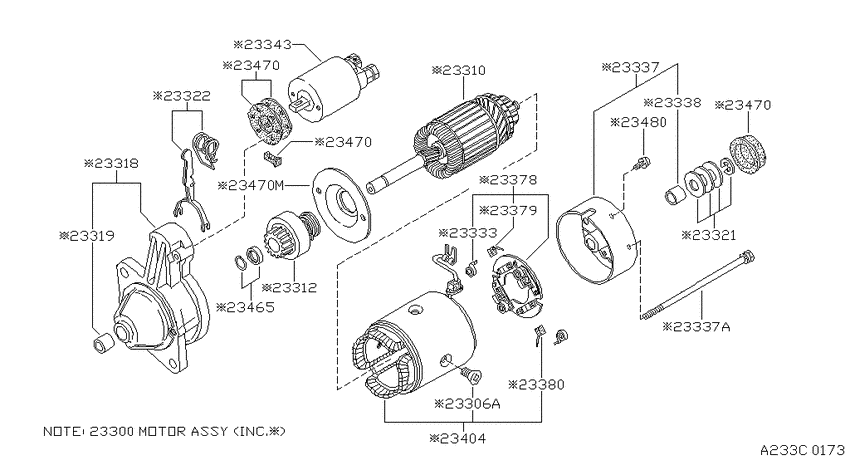

Starter motor (1979-01-01 ~ ; Z20E.AT) Diagram Nissan 200SX
- Year
- 1979 - 1981
- Sales region
- U.S.A.
- Engine
- Z20E
- transmission
- AT
- body
- HB
- trim lvl
- DX/SL
- emission
- CAL
- gears/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300
|
23300
23300-U6003 Motor Assy-Starter1979-01-01 ~ 1980-09-01; Z20E.AT; HITACHI S114-180F |
23300-U6003 |
US $564.98 |
||
|
23300
|
23300
23300-U6004
Motor Assy-Starter
1980-10-01 ~ 1981-06-01; Z20E.AT; HITACHI S114-295 |
23300-U6004 |
— | ||
| replacement | |||||
|
23300
|
23300
23300-U6006
Motor Assy-Starter
1980-10-01 ~ 1981-06-01; Z20E.AT; HITACHI S114-295 |
23300-U6006 |
— | ||
|
23306A
|
23306A
23305-N3300 Screw-Pole Core Set1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23305-N3300 |
US $3.60 |
||
|
23310
|
23310
23310-S0100 Armature Assy1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23310-S0100 |
US $300.19 |
||
|
23310
|
23310
23310-S1000
Armature Assy
1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23310-S1000 |
— | ||
|
23312
|
23312
23312-U6000 Pinion Assy1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23312-U6000 |
US $143.57 |
||
| replacement | |||||
|
23312
|
23312
23312-N3300 Pinion Assy1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23312-N3300 |
from US $140.69 |
||
|
23318
|
23318
23318-N3300 Case Assy-Gear1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23318-N3300 |
US $70.85 |
||
|
23319
|
23319
23319-N3300 Metal-Gear Case1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23319-N3300 |
US $5.18 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23321-N3300 |
US $4.18 |
||
|
23322
|
23322
23322-N3300 Lever Set-Shift1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23322-N3300 |
US $11.95 |
||
|
23333
|
23333
23333-21001 Spring-Brush1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23333-21001 |
US $2.45 |
||
|
23337
|
23337
23337-N3300 Cover Assy-Rear1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23337-N3300 |
US $34.27 |
||
|
23337
|
23337
23340-78500
Bolt-Through
1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23340-78500 |
— | ||
|
23337A
|
23337A
23340-78500
Bolt-Through
1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23340-78500 |
— | ||
|
23338
|
23338
23338N3300 Metal-Rear Cover1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23338N3300 |
US $5.18 |
||
|
23343
|
23343
23343-N3301 Switch Assy-Magnetic1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23343-N3301 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
B334307G00
Switch assy-magnetic
1979-01-01 ~ 1981-06-01; Z20E.AT; , |
B334307G00 |
— | ||
|
23378
|
23378
23378-N3300 Holder Assy-Brush1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23378-N3300 |
US $25.34 |
||
|
23379
|
23379
23379-M0100
Brush-Minus
1979-01-01 ~ 1981-06-01; Z20E.AT; - |
23379-M0100 |
— | ||
|
23379
|
23379
23379-M0101 Brush-Minus1979-01-01 ~ 1981-06-01; Z20E.DX.AT; - |
23379-M0101 |
US $5.62 |
||
|
23380
|
23380
23380-M0100 Brush-Plus1979-01-01 ~ 1981-06-01; Z20E.AT; + |
23380-M0100 |
US $5.62 |
||
|
23404
|
23404
23306-S1000
Coil
1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23306-S1000 |
— | ||
|
23465
|
23465
23465-N3300 Stopper Set-Pinion1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23465-N3300 |
US $6.48 |
||
|
23470
|
23470
23470-N3300 Cover Set-Dust1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23470-N3300 |
US $11.52 |
||
|
23470
|
23470
23324-U6000 Plate-Center1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23324-U6000 |
US $5.47 |
||
|
23470
|
23470
23470-N3300 Cover Set-Dust1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23470-N3300 |
US $11.52 |
||
|
23470
|
23470
23324-U6000 Plate-Center1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23324-U6000 |
US $5.47 |
||
|
23470
|
23470
23470-N3300 Cover Set-Dust1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23470-N3300 |
US $11.52 |
||
|
23470
|
23470
23324-U6000 Plate-Center1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23324-U6000 |
US $5.47 |
||
|
23470M
|
23470M
23324-U6000 Plate-Center1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23324-U6000 |
US $5.47 |
||
|
23480
|
23480
23480-M0100 Screw Set1979-01-01 ~ 1981-06-01; Z20E.AT; , |
23480-M0100 |
US $4.18 |
||
