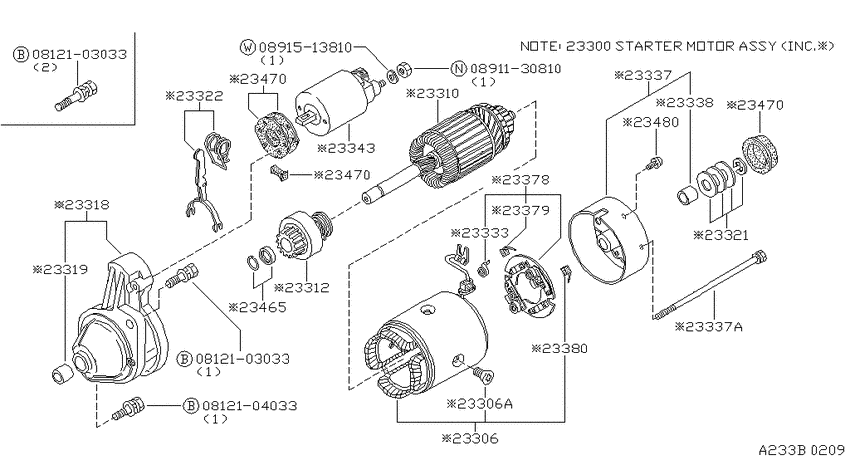

Starter motor (1979-01-01 ~ ; Z22E.MT) Diagram Nissan 200SX
- Year
- 1981 - 2011
- Sales region
- U.S.A.
- Engine
- Z22E
- transmission
- MT
- body
- HB
- trim lvl
- DX/SL
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812103033
|
0812103033
08121-03033
Bolt-hexagon
|
08121-03033 |
— | ||
|
0812103033
|
0812103033
08121-03033
Bolt-hexagon
|
08121-03033 |
— | ||
|
0812104033
|
0812104033
08121-04033 Bolt-hexagon |
08121-04033 |
US $2.45 |
||
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-W0401
Motor Assy-Starter
1981-07-01 ~ 1982-03-01; Z22E.MT; HITACHI S114-229F |
23300-W0401 |
— | ||
|
23300
|
23300
23300-W0402 Motor Assy-Starter1982-04-01 ~ ; Z22E.MT; HITACHI S114-348 |
23300-W0402 |
US $788.71 |
||
| replacement | |||||
|
23300
|
23300
23300-W0403 Motor Assy-Starter1982-04-01 ~ ; Z22E.MT; HITACHI S114-348 |
23300-W0403 |
from US $367.50 |
||
|
23306
|
23306
23306-U0100
Coil Assy-Field
1981-07-01 ~ ; Z22E.MT; , |
23306-U0100 |
— | ||
|
23306
|
23306
23306-W0400 Coil Assy-Field1982-04-01 ~ ; Z22E.MT; , |
23306-W0400 |
US $128.74 |
||
|
23306
|
23306
23306-Y0500 Coil Assy-Field1979-01-01 ~ 1982-03-01; Z22E.MT; , |
23306-Y0500 |
US $111.31 |
||
|
23306
|
23306
23305-U0100 Screw-Pole Core Set1981-07-01 ~ ; Z22E.MT; , |
23305-U0100 |
US $4.18 |
||
|
23306A
|
23306A
23305-U0100 Screw-Pole Core Set1981-07-01 ~ ; Z22E.MT; , |
23305-U0100 |
US $4.18 |
||
|
23310
|
23310
23310-D0100 Armature Assy1982-04-01 ~ ; Z22E.MT; , |
23310-D0100 |
US $421.97 |
||
|
23310
|
23310
23310-U0100 Armature Assy1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23310-U0100 |
US $244.80 |
||
|
23312
|
23312
23312-D0100 Pinion Assy1982-04-01 ~ ; Z22E.MT; , |
23312-D0100 |
US $116.06 |
||
|
23312
|
23312
23312-U6000 Pinion Assy1979-01-01 ~ 1982-03-01; Z22E.MT; , |
23312-U6000 |
US $143.57 |
||
| replacement | |||||
|
23312
|
23312
23312-N3300 Pinion Assy1979-01-01 ~ 1982-03-01; Z22E.MT; , |
23312-N3300 |
from US $140.69 |
||
|
23312
|
23312
23312-Y0700 Pinion Assy1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23312-Y0700 |
US $107.71 |
||
| replacement | |||||
|
23312
|
23312
23312-N3300 Pinion Assy1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23312-N3300 |
from US $140.69 |
||
|
23318
|
23318
23318-W0401 Case Assy-Gear1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23318-W0401 |
US $89.14 |
||
|
23318
|
23318
23318-W0402 Case Assy-Gear1982-04-01 ~ ; Z22E.MT; , |
23318-W0402 |
US $103.97 |
||
|
23319
|
23319
23319-N3300 Metal-Gear Case1981-07-01 ~ ; Z22E.MT; , |
23319-N3300 |
US $5.18 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust1981-07-01 ~ ; Z22E.MT; , |
23321-N3300 |
US $4.18 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift1982-04-01 ~ ; Z22E.MT; , |
23322-M8100 |
US $12.67 |
||
|
23322
|
23322
23322-U0100 Lever Set-Shift1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23322-U0100 |
US $10.08 |
||
|
23333
|
23333
23333-21001 Spring-Brush1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23333-21001 |
US $2.45 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1982-04-01 ~ ; Z22E.MT; , |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-U0100 Cover Assy-Rear1981-07-01 ~ ; Z22E.MT; , |
23337-U0100 |
US $43.06 |
||
|
23337
|
23337
23340-M4900 Bolt-Through1982-04-01 ~ ; Z22E.MT; , |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340U0100 Bolt-Through1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23340U0100 |
US $2.45 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through1982-04-01 ~ ; Z22E.MT; , |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340U0100 Bolt-Through1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23340U0100 |
US $2.45 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover1981-07-01 ~ ; Z22E.MT; , |
23338N3300 |
US $5.18 |
||
|
23343
|
23343
23343-N3301 Switch Assy-Magnetic1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23343-N3301 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
B334307G00
Switch assy-magnetic
1981-07-01 ~ 1982-03-01; Z22E.MT; , |
B334307G00 |
— | ||
|
23343
|
23343
23343-W0400 Switch Assy-Magnetic1982-04-01 ~ ; Z22E.MT; , |
23343-W0400 |
US $126.43 |
||
| replacement | |||||
|
23343
|
23343
B3343-W0401
Switch assy-magnetic
1982-04-01 ~ ; Z22E.MT; , |
B3343-W0401 |
— | ||
|
23378
|
23378
23378-M8100 Holder Assy-Brush1982-04-01 ~ ; Z22E.MT; , |
23378-M8100 |
US $17.57 |
||
|
23378
|
23378
23378-N3301 Holder Assy-Brush1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23378-N3301 |
US $18.29 |
||
|
23379
|
23379
23379-M0101 Brush-Minus1981-07-01 ~ ; Z22E.MT; - |
23379-M0101 |
US $5.62 |
||
|
23380
|
23380
23380-M0100 Brush-Plus1981-07-01 ~ ; Z22E.MT; + |
23380-M0100 |
US $5.62 |
||
|
23465
|
23465
23465-N3300 Stopper Set-Pinion1981-07-01 ~ ; Z22E.MT; , |
23465-N3300 |
US $6.48 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust1982-04-01 ~ ; Z22E.MT; , |
23470-M8000 |
US $12.53 |
||
|
23470
|
23470
23470-N3300 Cover Set-Dust1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23470-N3300 |
US $11.52 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust1982-04-01 ~ ; Z22E.MT; , |
23470-M8000 |
US $12.53 |
||
|
23470
|
23470
23470-N3300 Cover Set-Dust1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23470-N3300 |
US $11.52 |
||
|
23470
|
23470
23470-M8000 Cover Set-Dust1982-04-01 ~ ; Z22E.MT; , |
23470-M8000 |
US $12.53 |
||
|
23470
|
23470
23470-N3300 Cover Set-Dust1981-07-01 ~ 1982-03-01; Z22E.MT; , |
23470-N3300 |
US $11.52 |
||
|
23480
|
23480
23480-M0100 Screw Set1981-07-01 ~ ; Z22E.MT; , |
23480-M0100 |
US $4.18 |
||
