Component List 200SX
Transmission case & clutch release (1983-10-01 ~ 1986-01-01; MT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
089151401A	089151401A 089151401A Washer-Lock	089151401A	from US $0.59
30501	30501 30501-S0100 Sleeve-Clutch Release 1983-10-01 ~ 1986-02-01; (CA18ET+CA20E).MT; ,	30501-S0100	US $23.33
	replacement
30501	30501 30501S0164 Sleeve-Clutch Release 1983-10-01 ~ 1986-02-01; (CA18ET+CA20E).MT; ,	30501S0164	US $23.29
30502	30502 3050221000 Bearing-Clutch Release 1983-10-01 ~ 1986-02-01; MT; ,	3050221000	—
	replacement
30502	30502 30502-69F1A Bearing-Clutch Release 1983-10-01 ~ 1986-02-01; MT; ,	30502-69F1A	from US $27.32
30514	30514 3051414600 Spring-Holder, Clutch Release Bearing 1983-10-01 ~ 1986-02-01; MT; ,	3051414600	from US $3.07
30531	30531 30531-P0100 Lever-Withdrawal, Clutch 1986-02-01 ~ ; (CA18ET+CA20E).MT; ,	30531-P0100	from US $25.78
30531	30531 30531-P0151 Lever-Withdrawal, Clutch 1983-10-01 ~ 1986-02-01; MT; ,	30531-P0151	from US $31.01
30534	30534 30534E9000 Spring-Retainer, Withdrawal Lever 1983-10-01 ~ 1986-02-01; MT; ,	30534E9000	from US $1.74
30537	30537 3053703E00 PIN-BALL,WITHDRAWAL LEVER 1988-06-01 ~ ; MT; ,	3053703E00	US $5.81
30537	30537 30537-21010 Pin-Ball, Withdrawal Lever 1983-10-01 ~ 1986-02-01; MT; ,	30537-21010	US $4.42
30542	30542 30542E9000 Cover-Dust, Withdrawal Lever 1983-10-01 ~ 1986-02-01; MT; ,	30542E9000	from US $6.51
32005	32005 32005-K1011 Switch Assy-Reverse Lamp 1983-10-01 ~ 1986-02-01; MT; ,	32005-K1011	US $40.75
32006	32006 32006-M8010 Switch Assy-Neutral Position 1983-10-01 ~ 1986-02-01; CA20E.MT; ,	32006-M8010	US $30.38
	replacement
32006	32006 32006M8060 ﾆﾕ-ﾄﾗﾙｽｲﾂﾁassy 1983-10-01 ~ 1986-02-01; CA20E.MT; ,	32006M8060	US $16.39
32006	32006 32006-M8010 Switch Assy-Neutral Position 1986-02-01 ~ ; MT; ,	32006-M8010	US $30.38
	replacement
32006	32006 32006M8060 ﾆﾕ-ﾄﾗﾙｽｲﾂﾁassy 1986-02-01 ~ ; MT; ,	32006M8060	US $16.39
32100	32100 32101-31F03 Case Assy-Transmission 1985-09-01 ~ 1986-02-01; CA20E.MT; ,	32101-31F03	—
32100	32100 32101-V6210 Case Assy-Transmission 1983-10-01 ~ 1984-05-01; CA20E.MT; ,	32101-V6210	—
32100	32100 32101-V6215 Case Assy-Transmission 1984-05-01 ~ 1985-09-01; CA20E.MT; ,	32101-V6215	—
32100	32100 0164200021 PLUG-THREAD 1986-02-01 ~ ; MT; ,	0164200021	—
	replacement
32100	32100 33312-33G0B PLUG-THREAD 1986-02-01 ~ ; MT; ,	33312-33G0B	US $4.85
32100	32100 01642-00061 PLUG-THREAD 1983-10-01 ~ 1986-02-01; MT; ,	01642-00061	—
32100A	32100A 0164200021 PLUG-THREAD 1986-02-01 ~ ; MT; ,	0164200021	—
	replacement
32100A	32100A 33312-33G0B PLUG-THREAD 1986-02-01 ~ ; MT; ,	33312-33G0B	US $4.85
32100A	32100A 01642-00061 PLUG-THREAD 1983-10-01 ~ 1986-02-01; MT; ,	01642-00061	—
32103	32103 32103U8400 Plug-Drain 1983-10-01 ~ 1986-02-01; MT; ,	32103U8400	—
	replacement
32103	32103 32103-U840B Plug-Drain 1983-10-01 ~ 1986-02-01; MT; ,	32103-U840B	US $7.35
32110	32110 32111E9800 Cover Assy-Front 1983-10-01 ~ 1984-05-01; MT; ,	32111E9800	US $46.15
32110	32110 32111-E9801 Cover Assy-Front 1984-05-01 ~ 1986-02-01; MT; ,	32111-E9801	US $43.63
32110	32110 32111E9803 Cover Assy-Front 1984-05-01 ~ 1986-02-01; MT; ,	32111E9803	—
	replacement
32110	32110 3211191P00 Cover Assy-Front 1984-05-01 ~ 1986-02-01; MT; ,	3211191P00	from US $40.45
32110	32110 32135-58S60 Bolt-Fixing, Front Cover 1985-06-01 ~ 1986-02-01; MT; ,	32135-58S60	US $1.73
32110	32110 32135-K0500 Bolt-Fixing, Front Cover 1983-10-01 ~ 1985-06-01; MT; ,	32135-K0500	US $2.45
32110A	32110A 32135-58S60 Bolt-Fixing, Front Cover 1985-06-01 ~ 1986-02-01; MT; ,	32135-58S60	US $1.73
32110A	32110A 32135-K0500 Bolt-Fixing, Front Cover 1983-10-01 ~ 1985-06-01; MT; ,	32135-K0500	US $2.45
32112	32112 32112-E9001 Gasket-Front Cover 1983-10-01 ~ 1984-05-01; (CA18ET+CA20E).MT; ,	32112-E9001	—
	replacement
32112	32112 3211208U01 Gasket-Front Cover 1983-10-01 ~ 1984-05-01; (CA18ET+CA20E).MT; ,	3211208U01	from US $6.49
32112	32112 32112-V5001 Gasket-Front Cover 1986-02-01 ~ ; MT; ,	32112-V5001	—
	replacement
32112	32112 3211208U01 Gasket-Front Cover 1986-02-01 ~ ; MT; ,	3211208U01	from US $6.49
32113	32113 32114Y4000 Seal-Oil, Front Cover 1983-10-01 ~ 1986-02-01; MT; ,	32114Y4000	from US $3.19
32130	32130 32130-06F60 Extension Assy-Rear 1983-10-01 ~ 1986-02-01; CA20E.MT; ,	32130-06F60	US $291.70
32130	32130 32130-50L10 Extension Assy-Rear 1986-02-01 ~ ; (CA18ET+CA20E).MT; ,	32130-50L10	US $291.70
	replacement
32130	32130 32130-50L16 Extension assy-rear 1986-02-01 ~ ; (CA18ET+CA20E).MT; ,	32130-50L16	—
32130	32130 38322-78000 Breather 1986-02-01 ~ ; MT; ,	38322-78000	from US $3.32
32130	32130 0114100021 BOLT-FIXING,RETAINER 1983-10-01 ~ 1986-02-01; MT; ,	0114100021	US $2.91
32130	32130 32152-50L00 Bolt 1986-02-01 ~ ; MT; ,	32152-50L00	US $2.45
32130	32130 24210-05E00 CLAMP 1986-02-01 ~ ; MT; ,	24210-05E00	US $3.46
32130	32130 24210-89963 Clip-Wiring Harness 1986-02-01 ~ ; MT; ,	24210-89963	US $3.46
32130D	32130D 38322-78000 Breather 1986-02-01 ~ ; MT; ,	38322-78000	from US $3.32
32130G	32130G 0114100021 BOLT-FIXING,RETAINER 1983-10-01 ~ 1986-02-01; MT; ,	0114100021	US $2.91
32130G	32130G 32152-50L00 Bolt 1986-02-01 ~ ; MT; ,	32152-50L00	US $2.45
32130G	32130G 0114100021 BOLT-FIXING,RETAINER 1983-10-01 ~ 1986-02-01; MT; ,	0114100021	US $2.91
32130G	32130G 32152-50L00 Bolt 1986-02-01 ~ ; MT; ,	32152-50L00	US $2.45
32130H	32130H 24210-05E00 CLAMP 1986-02-01 ~ ; MT; ,	24210-05E00	US $3.46
32130H	32130H 24210-89963 Clip-Wiring Harness 1986-02-01 ~ ; MT; ,	24210-89963	US $3.46
32133	32133 32106-20100 Pin-Dowel 1986-02-01 ~ ; MT; ,	32106-20100	US $1.73
32136	32136 32136U0100 Seal-Oil, Rear Extension 1986-02-01 ~ ; MT; ,	32136U0100	—
	replacement
32136	32136 32136-U010A Seal-Oil, Rear Extension 1986-02-01 ~ ; MT; ,	32136-U010A	from US $4.92
32137	32137 32137-E9000 Gutter-Oil, Adapter 1986-02-01 ~ ; MT; ,	32137-E9000	from US $1.82
32138	32138 32138-01F60 Plate-Adapter 1983-10-01 ~ 1986-02-01; CA20E.MT; ,	32138-01F60	—
32138	32138 32138-01F61 Plate-Adapter 1986-12-01 ~ ; CA20E.MT; ,	32138-01F61	US $76.61
32139	32139 32139-E9810 Retainer-Bearing 1983-10-01 ~ 1986-02-01; MT; ,	32139-E9810	US $10.37
32139	32139 0114100021 BOLT-FIXING,RETAINER 1983-10-01 ~ 1986-02-01; MT; ,	0114100021	US $2.91
32139A	32139A 0114100021 BOLT-FIXING,RETAINER 1983-10-01 ~ 1986-02-01; MT; ,	0114100021	US $2.91
32852E	32852E 32140-24900 Bracket-Return Spring 1983-10-01 ~ 1986-02-01; MT; ,	32140-24900	US $2.45

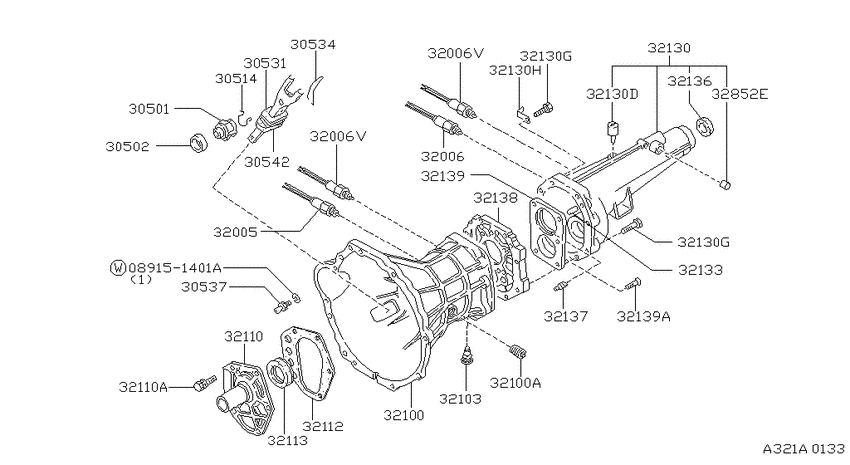

Transmission case & clutch release (1983-10-01 ~ 1986-01-01; MT) Diagram Nissan 200SX U.S.A. 2306704-182276

Transmission case & clutch release (1983-10-01 ~ 1986-01-01; MT) Diagram Nissan 200SX U.S.A. 2306704-182276
