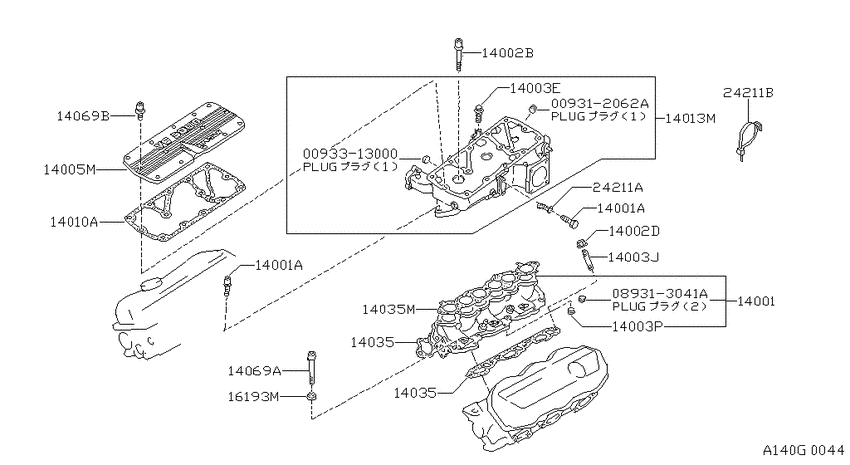

Manifold (1983-10-01 ~ ; INTAKE PARTS; VG30E) Diagram Nissan 200SX
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- HB
- Suspension
- IRS
- trim lvl
- SGL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093313000
|
0093313000
00933-13000
PLUG-WELCH
|
00933-13000 |
— | ||
|
089313041A
|
089313041A
089313041A
Plug-Drain
|
089313041A |
— | ||
|
14001
|
14001
14003-19P60
Manifold-Intake
1986-07-01 ~ ; VG30E; , |
14003-19P60 |
— | ||
|
14001
|
14001
16163-10V02 Bolt1986-07-01 ~ ; VG30E; , |
16163-10V02 |
US $4.03 |
||
|
14001
|
14001
16163-V5203 Bolt1986-07-01 ~ ; VG30E; , |
16163-V5203 |
US $2.16 |
||
|
14001
|
14001
14039W1500 Nut1986-07-01 ~ ; VG30E; , |
14039W1500 |
US $2.36 |
||
|
14001
|
14001
14354-32F00
Cover-Intake Manifold
1986-07-01 ~ ; VG30E; F/RH SUB |
14354-32F00 |
— | ||
|
14001A
|
14001A
16163-10V02 Bolt1986-07-01 ~ ; VG30E; , |
16163-10V02 |
US $4.03 |
||
|
14001A
|
14001A
16163-V5203 Bolt1986-07-01 ~ ; VG30E; , |
16163-V5203 |
US $2.16 |
||
|
14001A
|
14001A
16163-10V02 Bolt1986-07-01 ~ ; VG30E; , |
16163-10V02 |
US $4.03 |
||
|
14001A
|
14001A
16163-V5203 Bolt1986-07-01 ~ ; VG30E; , |
16163-V5203 |
US $2.16 |
||
|
14002B
|
14002B
16163-V5204 Bolt1986-07-01 ~ ; VG30E; , |
16163-V5204 |
US $1.73 |
||
|
14002D
|
14002D
14039-V5011 Nut1986-07-01 ~ ; VG30E; , |
14039-V5011 |
US $4.03 |
||
|
14002D
|
14002D
14039-V5300 Nut1999-07-01 ~ ; VG30E; , |
14039-V5300 |
US $4.03 |
||
|
14003E
|
14003E
14053-42L00
Plug Assy-Air Relief
1986-07-01 ~ 1988-05-01; VG30E; , |
14053-42L00 |
— | ||
| replacement | |||||
|
14003E
|
14003E
1405342L0A Plug Assy-Air Relief1986-07-01 ~ 1988-05-01; VG30E; , |
1405342L0A |
US $3.89 |
||
|
14003E
|
14003E
14053-42L05 Bolt1988-05-01 ~ ; VG30E; , |
14053-42L05 |
US $4.03 |
||
| replacement | |||||
|
14003E
|
14003E
14053-42L07 Plug1988-05-01 ~ ; VG30E; , |
14053-42L07 |
US $6.05 |
||
|
14003J
|
14003J
14064-V5001 Stud-Manifold1986-07-01 ~ ; VG30E; , |
14064-V5001 |
US $2.45 |
||
|
14003P
|
14003P
14088-V5000 Plug-Blind1986-07-01 ~ ; VG30E; , |
14088-V5000 |
US $3.31 |
||
|
14005M
|
14005M
14027-32F00
Cover-Intake Manifold Collector
1986-07-01 ~ ; VG30E; , |
14027-32F00 |
— | ||
|
14010A
|
14010A
14033-32F01
Gasket-Manifold, Upper
1986-07-01 ~ ; VG30E; , |
14033-32F01 |
— | ||
| replacement | |||||
|
14010A
|
14010A
A4033-32F01
Gasket-manifold,upper
1986-07-01 ~ ; VG30E; , |
A4033-32F01 |
— | ||
|
14013M
|
14013M
14005-32F00
Collector-Intake Manifold
1986-07-01 ~ 1987-07-01; VG30E; , |
14005-32F00 |
— | ||
|
14013M
|
14013M
14005-32F02
Collector-Intake Manifold
1987-07-01 ~ ; VG30E; , |
14005-32F02 |
— | ||
|
14035
|
14035
14035V5202 Gasket-Manifold1986-07-01 ~ ; VG30E; , |
14035V5202 |
from US $52.02 |
||
|
14035
|
14035
14033-88G00 Gasket-Intake Manifold1986-07-01 ~ ; VG30E; , |
14033-88G00 |
US $18.29 |
||
|
14035
|
14035
14080-V5200 Gasket-Intake Manifold, A1986-07-01 ~ ; VG30E; , |
14080-V5200 |
US $18.29 |
||
|
14035
|
14035
14035V5202 Gasket-Manifold1986-07-01 ~ ; VG30E; , |
14035V5202 |
from US $52.02 |
||
|
14035
|
14035
14033-88G00 Gasket-Intake Manifold1986-07-01 ~ ; VG30E; , |
14033-88G00 |
US $18.29 |
||
|
14035
|
14035
14080-V5200 Gasket-Intake Manifold, A1986-07-01 ~ ; VG30E; , |
14080-V5200 |
US $18.29 |
||
|
14035M
|
14035M
14033-88G00 Gasket-Intake Manifold1986-07-01 ~ ; VG30E; , |
14033-88G00 |
US $18.29 |
||
|
14035M
|
14035M
14080-V5200 Gasket-Intake Manifold, A1986-07-01 ~ ; VG30E; , |
14080-V5200 |
US $18.29 |
||
|
14069A
|
14069A
14069-V5001 Bolt1986-07-01 ~ ; VG30E; , |
14069-V5001 |
US $2.45 |
||
|
14069B
|
14069B
0113100251 BOLT1986-07-01 ~ ; VG30E; , |
0113100251 |
US $1.73 |
||
|
16193M
|
16193M
14037-V5200 Spacer1986-07-01 ~ ; VG30E; , |
14037-V5200 |
from US $10.69 |
||
|
24211A
|
24211A
01551-00281 CLIP-WIRING HARNESS1986-07-01 ~ ; VG30E; , |
01551-00281 |
US $3.75 |
||
|
24211B
|
24211B
24346-79981
Clip-Wiring Harness
1986-07-01 ~ ; VG30E; , |
24346-79981 |
— | ||
| replacement | |||||
|
24211B
|
24211B
2434627N05 Clip-Connector1986-07-01 ~ ; VG30E; , |
2434627N05 |
US $4.16 |
||
