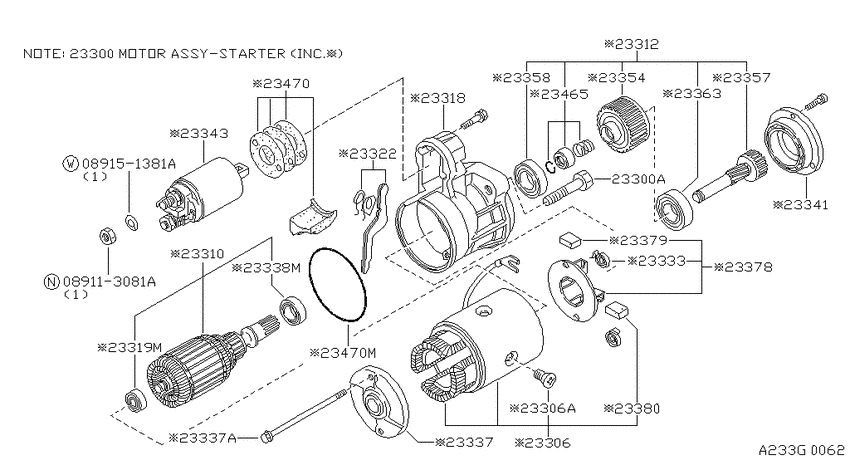

Starter motor (1983-10-01 ~ ; HITACHI; VG30E) Diagram Nissan 200SX
- Year
- 1986 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- HB
- Suspension
- IRS
- trim lvl
- SGL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
23300
|
23300
23300-V5302 Motor Assy-Starter1986-07-01 ~ ; VG30E; HITACHI |
23300-V5302 |
US $943.06 |
||
|
23300
|
23300
01121-00811 BOLT1986-07-01 ~ ; VG30E.MT; , |
01121-00811 |
US $3.46 |
||
|
23300
|
23300
01121-02081 BOLT1986-07-01 ~ ; VG30E.MT; , |
01121-02081 |
US $3.46 |
||
|
23300A
|
23300A
01121-00811 BOLT1986-07-01 ~ ; VG30E.MT; , |
01121-00811 |
US $3.46 |
||
|
23300A
|
23300A
01121-02081 BOLT1986-07-01 ~ ; VG30E.MT; , |
01121-02081 |
US $3.46 |
||
|
23306
|
23306
23306-W1700 Coil Assy-Field1986-07-01 ~ ; VG30E; HITACHI |
23306-W1700 |
US $127.30 |
||
|
23306
|
23306
23305-09500 Screw-Pole Core Set1986-07-01 ~ ; VG30E; HITACHI |
23305-09500 |
US $1.11 |
||
|
23306A
|
23306A
23305-09500 Screw-Pole Core Set1986-07-01 ~ ; VG30E; HITACHI |
23305-09500 |
US $1.11 |
||
|
23310
|
23310
23310-V5300 Armature Assy1986-07-01 ~ ; VG30E; HITACHI |
23310-V5300 |
US $485.69 |
||
|
23312
|
23312
23312-06W60 Pinion Assy1986-07-01 ~ ; VG30E; HITACHI |
23312-06W60 |
US $320.02 |
||
|
23312
|
23312
23312-V5301 Pinion Assy1986-07-01 ~ ; VG30E; HITACHI |
23312-V5301 |
US $287.45 |
||
|
23318
|
23318
23318-V5302 Case Assy-Gear1986-07-01 ~ ; VG30E; HITACHI |
23318-V5302 |
US $151.20 |
||
|
23319M
|
23319M
23319-M4900 Metal-Gear Case1986-07-01 ~ ; VG30E; HITACHI |
23319-M4900 |
US $21.46 |
||
|
23322
|
23322
23322-H9100 Lever Set-Shift1986-07-01 ~ ; VG30E; HITACHI |
23322-H9100 |
US $8.64 |
||
|
23333
|
23333
23333-M4901 Spring-Brush1986-07-01 ~ ; VG30E; HITACHI |
23333-M4901 |
US $8.78 |
||
|
23337
|
23337
23337-M4901 Cover Assy-Rear1986-07-01 ~ ; VG30E; HITACHI |
23337-M4901 |
US $11.38 |
||
|
23337
|
23337
23340N5900 Bolt-Through1986-07-01 ~ ; VG30E; HITACHI |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through1986-07-01 ~ ; VG30E; HITACHI |
23340N5900 |
US $4.61 |
||
|
23338M
|
23338M
23338-M4900 Metal-Rear Cover1986-07-01 ~ ; VG30E; HITACHI |
23338-M4900 |
from US $52.13 |
||
|
23341
|
23341
23341-N5900 Retainer-Bearing1986-07-01 ~ ; VG30E; HITACHI |
23341-N5900 |
US $36.86 |
||
|
23343
|
23343
23343-V5301 Switch Assy-Magnetic1986-07-01 ~ ; VG30E; HITACHI |
23343-V5301 |
US $168.48 |
||
| replacement | |||||
|
23343
|
23343
B3343-H9100
Switch assy-magnetic
1986-07-01 ~ ; VG30E; HITACHI |
B3343-H9100 |
— | ||
|
23354
|
23354
23354-06W60 Clutch Assy1986-07-01 ~ ; VG30E; HITACHI |
23354-06W60 |
US $231.84 |
||
|
23354
|
23354
23354-11M00 Shaft-Pinion1986-07-01 ~ ; VG30E; HITACHI |
23354-11M00 |
US $156.96 |
||
|
23357
|
23357
23357-N5900 Pinion1986-07-01 ~ ; VG30E; HITACHI |
23357-N5900 |
US $112.46 |
||
|
23358
|
23358
23358-07G00 Bearing1986-07-01 ~ ; VG30E; HITACHI |
23358-07G00 |
US $32.98 |
||
|
23358
|
23358
23358-M4900 Bearing1986-07-01 ~ ; VG30E; HITACHI |
23358-M4900 |
US $38.88 |
||
|
23363
|
23363
23363-07G00 Bearing1986-07-01 ~ ; VG30E; HITACHI |
23363-07G00 |
US $26.93 |
||
|
23363
|
23363
23363-M4900 Bearing1986-07-01 ~ ; VG30E; HITACHI |
23363-M4900 |
US $17.57 |
||
|
23378
|
23378
23378M4901 Holder Assy-Brush1986-07-01 ~ ; VG30E; HITACHI |
23378M4901 |
US $47.81 |
||
|
23379
|
23379
23379-M4900 Brush-Minus1986-07-01 ~ ; VG30E; HITACHI |
23379-M4900 |
US $10.08 |
||
|
23380
|
23380
23380-M4900 Brush-Plus1986-07-01 ~ ; VG30E; HITACHI |
23380-M4900 |
US $10.37 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion1986-07-01 ~ ; VG30E; HITACHI |
23465-M4900 |
US $9.50 |
||
|
23470
|
23470
23470-D0300 Cover Set-Dust1986-07-01 ~ ; VG30E; HITACHI |
23470-D0300 |
US $12.24 |
||
| replacement | |||||
|
23470
|
23470
23470-D0301 Cover Set-Dust1986-07-01 ~ ; VG30E; HITACHI |
23470-D0301 |
US $14.69 |
||
|
23470
|
23470
23324-N5900 Plate-Center1986-07-01 ~ ; VG30E; HITACHI |
23324-N5900 |
US $6.34 |
||
|
23470M
|
23470M
23324-N5900 Plate-Center1986-07-01 ~ ; VG30E; HITACHI |
23324-N5900 |
US $6.34 |
||
