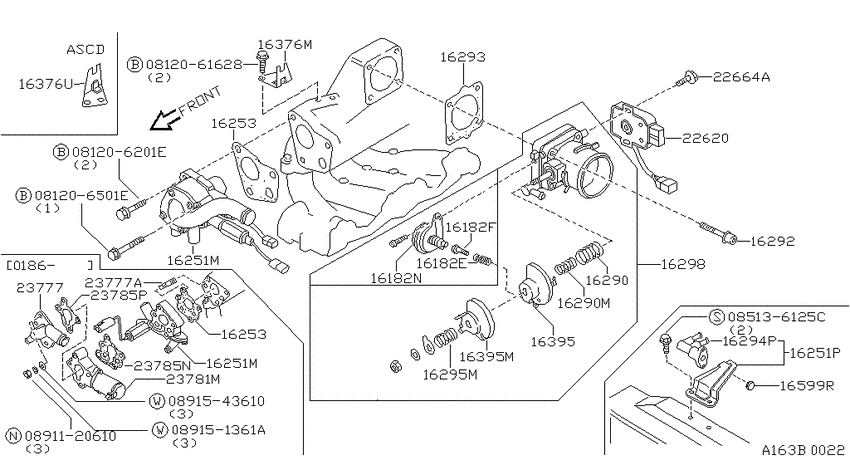

Throttle chamber (1983-10-01 ~ ; CA18ET) Diagram Nissan 200SX
- Year
- 1983 - 1986
- Sales region
- U.S.A.
- Engine
- CA18ET
- transmission
- MT
- body
- HB
- Suspension
- IRS
- trim lvl
- SGL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
081206201E
|
081206201E
081206201E Bolt-hexagon |
081206201E |
from US $0.59 |
||
|
081206501E
|
081206501E
08120-6501E
Bolt-hexagon
|
08120-6501E |
— | ||
|
085136125C
|
085136125C
08513-6125C
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-6125C |
— | ||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
089151361A
|
089151361A
089151361A
WASHERSPRING
|
089151361A |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
16182E
|
16182E
16145-N8410 Spring1984-01-01 ~ 1985-08-01; CA18ET; , |
16145-N8410 |
US $1.73 |
||
|
16182E
|
16182E
16145-V5260 Spring1985-08-01 ~ ; CA18ET; , |
16145-V5260 |
US $2.16 |
||
|
16182E
|
16182E
16160-02E00 SPRING1985-08-01 ~ ; CA18ET; , |
16160-02E00 |
US $2.02 |
||
|
16182F
|
16182F
16183-N8410 Screw-Dashpot1984-01-01 ~ ; CA18ET; , |
16183-N8410 |
US $3.31 |
||
|
16182N
|
16182N
16182-02F10
Idle Speed Control-Fi Pot
1985-08-01 ~ ; CA18ET; , |
16182-02F10 |
— | ||
| replacement | |||||
|
16182N
|
16182N
16182-V5260
Idle Speed Control-Fi Pot
1985-08-01 ~ ; CA18ET; , |
16182-V5260 |
— | ||
|
16182N
|
16182N
16182-V5260
Idle Speed Control-Fi Pot
1985-08-01 ~ ; CA18ET; , |
16182-V5260 |
— | ||
|
16182N
|
16182N
16484-02F10 Idle Speed Control-Fi Pot1984-01-01 ~ 1985-08-01; CA18ET; , |
16484-02F10 |
US $102.38 |
||
|
16251M
|
16251M
16250-18F10
Iaa Unit
1984-01-01 ~ 1986-01-01; CA18ET.MT; , |
16250-18F10 |
— | ||
|
16251M
|
16251M
16250-D3510
Iaa Unit
1986-01-01 ~ ; CA18ET.MT; , |
16250-D3510 |
— | ||
|
16251M
|
16251M
16250-18F10
Iaa Unit
1984-01-01 ~ 1986-01-01; CA18ET.MT; , |
16250-18F10 |
— | ||
|
16251M
|
16251M
16250-D3510
Iaa Unit
1986-01-01 ~ ; CA18ET.MT; , |
16250-D3510 |
— | ||
|
16251P
|
16251P
16250-18F00
Ias Unit
1984-01-01 ~ 1986-01-01; CA18ET; , |
16250-18F00 |
— | ||
|
16253
|
16253
16253-17F00 Iacv-Iaa Unit Gasket1984-01-01 ~ 1986-01-01; CA18ET; , |
16253-17F00 |
US $2.45 |
||
| replacement | |||||
|
16253
|
16253
16253-17F10 Iacv-Iaa Unit Gasket1984-01-01 ~ 1986-01-01; CA18ET; , |
16253-17F10 |
US $2.45 |
||
|
16253
|
16253
16253-D3500
Iacv-Iaa Unit Gasket
1986-01-01 ~ ; CA18ET; , |
16253-D3500 |
— | ||
|
16253
|
16253
16253-D5700 Iacv-Iaa Unit Gasket1986-01-01 ~ ; CA18ET; , |
16253-D5700 |
US $0.86 |
||
|
16253
|
16253
16253-17F00 Iacv-Iaa Unit Gasket1984-01-01 ~ 1986-01-01; CA18ET; , |
16253-17F00 |
US $2.45 |
||
| replacement | |||||
|
16253
|
16253
16253-17F10 Iacv-Iaa Unit Gasket1984-01-01 ~ 1986-01-01; CA18ET; , |
16253-17F10 |
US $2.45 |
||
|
16253
|
16253
16253-D3500
Iacv-Iaa Unit Gasket
1986-01-01 ~ ; CA18ET; , |
16253-D3500 |
— | ||
|
16253
|
16253
16253-D5700 Iacv-Iaa Unit Gasket1986-01-01 ~ ; CA18ET; , |
16253-D5700 |
US $0.86 |
||
|
16290
|
16290
16160-02F00 Spring-Throttle Return1984-01-01 ~ ; CA18ET; , |
16160-02F00 |
US $8.93 |
||
|
16290
|
16290
16160-02F02 Spring-Throttle Return1984-01-01 ~ ; CA18ET; , |
16160-02F02 |
US $11.23 |
||
|
16290M
|
16290M
16160-02F02 Spring-Throttle Return1984-01-01 ~ ; CA18ET; , |
16160-02F02 |
US $11.23 |
||
|
16292
|
16292
16122V5200 Bolt-Chamber1984-01-01 ~ ; CA18ET; , |
16122V5200 |
US $3.46 |
||
|
16293
|
16293
16175-17F00 Gasket-Adapter1984-01-01 ~ ; CA18ET; , |
16175-17F00 |
US $3.46 |
||
|
16293
|
16293
16175-17F70 Gasket-Adapter1984-01-01 ~ ; CA18ET; , |
16175-17F70 |
US $6.34 |
||
|
16294P
|
16294P
16251-D8100
Screw-Adjusting
1984-01-01 ~ 1986-01-01; CA18ET; , |
16251-D8100 |
— | ||
|
16295M
|
16295M
16160-17F05 Spring-Throttle Return1984-01-01 ~ ; CA18ET; , |
16160-17F05 |
US $7.78 |
||
|
16298
|
16298
16118-17F16
Throttle Body
1984-01-01 ~ ; CA18ET.MT; , |
16118-17F16 |
— | ||
|
16376M
|
16376M
16166-17F03 Bolt-Chamber1984-01-01 ~ ; CA18ET; , |
16166-17F03 |
US $5.47 |
||
|
16376U
|
16376U
16167-17F03 Bracket-Ascd Wire1984-01-01 ~ ; CA18ET; , |
16167-17F03 |
US $17.57 |
||
|
16395
|
16395
16134-02F00 Lever-Throttle1984-01-01 ~ ; CA18ET; , |
16134-02F00 |
US $12.82 |
||
|
16395
|
16395
16134-17F05 Lever-Ascd1984-01-01 ~ ; CA18ET; , |
16134-17F05 |
US $32.83 |
||
|
16395M
|
16395M
16134-17F05 Lever-Ascd1984-01-01 ~ ; CA18ET; , |
16134-17F05 |
US $32.83 |
||
|
16599R
|
16599R
16599-N8500
Cap-Connector
1984-01-01 ~ ; CA18ET; , |
16599-N8500 |
— | ||
|
22620
|
22620
22620-07F00
Throttle Position Switch
1984-01-01 ~ 1986-07-01; CA18ET.MT; , |
22620-07F00 |
— | ||
| replacement | |||||
|
22620
|
22620
22620-07F10
Throttle Position Switch
1984-01-01 ~ 1986-07-01; CA18ET.MT; , |
22620-07F10 |
— | ||
|
22664A
|
22664A
01436-00501 SCREW1984-01-01 ~ ; CA18ET; , |
01436-00501 |
US $1.73 |
||
|
23777
|
23777
23777-D4500
Connector-Aac Valve
1986-01-01 ~ ; CA18ET; , |
23777-D4500 |
— | ||
|
23777
|
23777
11392-D3500 Stud1986-01-01 ~ ; CA18ET; , |
11392-D3500 |
US $1.73 |
||
|
23777A
|
23777A
11392-D3500 Stud1986-01-01 ~ ; CA18ET; , |
11392-D3500 |
US $1.73 |
||
|
23781M
|
23781M
23781-D3501
Iacv-Aac Valve
1986-01-01 ~ ; CA18ET.MT; TOKYO SOKUHAN |
23781-D3501 |
— | ||
|
23781M
|
23781M
23781-D3511
Iacv-Aac Valve
1986-01-01 ~ ; CA18ET.MT; ATHUGI UNISIA |
23781-D3511 |
— | ||
|
23785N
|
23785N
23785-D3500
Iacv-Aac Valve Gasket
1986-01-01 ~ ; CA18ET; , |
23785-D3500 |
— | ||
|
23785N
|
23785N
23785-D5700
Iacv-Aac Valve Gasket
1986-01-01 ~ ; CA18ET; , |
23785-D5700 |
— | ||
|
23785P
|
23785P
23785-D3510
Iacv-Aac Valve Gasket
1986-01-01 ~ ; CA18ET; , |
23785-D3510 |
— | ||
|
23785P
|
23785P
23785-D5710
Iacv-Aac Valve Gasket
1986-01-01 ~ ; CA18ET; , |
23785-D5710 |
— | ||
