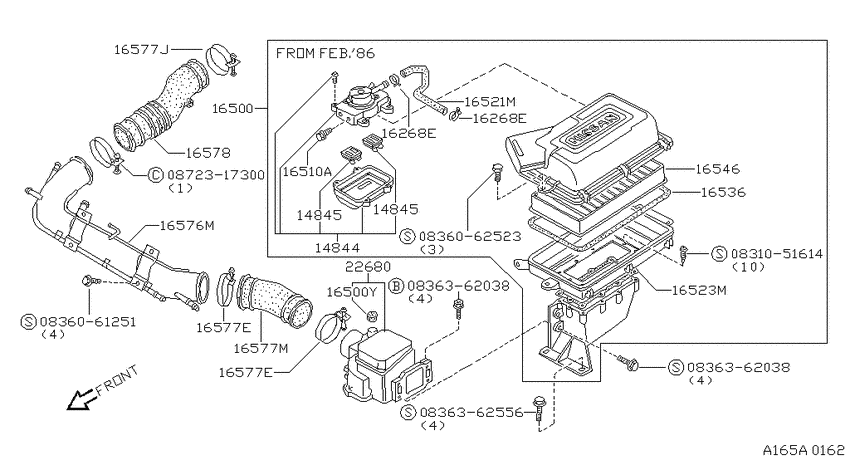

Air cleaner (1983-10-01 ~ ; CA20E) Diagram Nissan 200SX
- Year
- 1983 - 1984
- Sales region
- U.S.A.
- Engine
- CA20E
- transmission
- AT
- body
- C
- Suspension
- RIGID
- trim lvl
- GL
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831051614
|
0831051614
08310-51614
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51614 |
— | ||
|
0836061251
|
0836061251
08360-61251
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61251 |
— | ||
|
0836062523
|
0836062523
08360-62523
BOLT-CENTER
|
08360-62523 |
— | ||
|
0836362038
|
0836362038
0836362038
SCREWMACHINE
|
0836362038 |
— | ||
|
0836362038
|
0836362038
0836362038
SCREWMACHINE
|
0836362038 |
— | ||
|
0836362556
|
0836362556
08363-62556
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62556 |
— | ||
|
0872317300
|
0872317300
08723-17300 CLAMP-HOSE |
08723-17300 |
US $3.46 |
||
|
14844
|
14844
16514-28F00
Valve Assy-Air Induce, W/case
1986-02-01 ~ ; CA20E; , |
16514-28F00 |
— | ||
|
14845
|
14845
14845-W2300
Pair-Valve
1986-02-01 ~ ; CA20E; , |
14845-W2300 |
— | ||
|
14845
|
14845
14845-W2300
Pair-Valve
1986-02-01 ~ ; CA20E; , |
14845-W2300 |
— | ||
|
16268E
|
16268E
01555-00361
CLAMP-HOSE
1986-02-01 ~ ; CA20E; , |
01555-00361 |
— | ||
| replacement | |||||
|
16268E
|
16268E
0155500881 CLAMP-HOSE1986-02-01 ~ ; CA20E; , |
0155500881 |
from US $2.28 |
||
|
16268E
|
16268E
01555-00361
CLAMP-HOSE
1986-02-01 ~ ; CA20E; , |
01555-00361 |
— | ||
| replacement | |||||
|
16268E
|
16268E
0155500881 CLAMP-HOSE1986-02-01 ~ ; CA20E; , |
0155500881 |
from US $2.28 |
||
|
16500
|
16500
16500-27F00
Air Cleaner
1986-02-01 ~ ; CA20E; , |
16500-27F00 |
— | ||
| replacement | |||||
|
16500
|
16500
16500-27F01
Air cleaner
1986-02-01 ~ ; CA20E; , |
16500-27F01 |
— | ||
|
16500
|
16500
16500-R2400
Air Cleaner
1983-10-01 ~ 1986-02-01; CA20E; , |
16500-R2400 |
— | ||
|
16500
|
16500
B2681-01A33 Plug1983-10-01 ~ ; CA20E; , |
B2681-01A33 |
US $4.18 |
||
|
16500Y
|
16500Y
B2681-01A33 Plug1983-10-01 ~ ; CA20E; , |
B2681-01A33 |
US $4.18 |
||
|
16510A
|
16510A
08360-51022
Bolt
1986-02-01 ~ ; CA20E; , |
08360-51022 |
— | ||
|
16521M
|
16521M
16520-28F00
Hose-Vacuum Control, Air Cleaner
1986-02-01 ~ ; CA20E; , |
16520-28F00 |
— | ||
|
16523M
|
16523M
16558-N6910 Gasket1983-10-01 ~ ; CA20E; , |
16558-N6910 |
US $4.03 |
||
|
16536
|
16536
16536-N4201 Packing1983-10-01 ~ ; CA20E; , |
16536-N4201 |
US $9.50 |
||
|
16546
|
16546
16546N4200 Element Assy-Air1983-10-01 ~ ; CA20E; , |
16546N4200 |
US $39.60 |
||
|
16576M
|
16576M
16576-07F00
Pipe-Air Duct
1983-10-01 ~ 1986-07-01; CA20E; , |
16576-07F00 |
— | ||
|
16576M
|
16576M
16576-27F00
Pipe-Air Duct
1986-07-01 ~ ; CA20E; , |
16576-27F00 |
— | ||
|
16577E
|
16577E
01555-00561 CLAMP-HOSE1985-08-01 ~ ; CA20E; , |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577E
|
16577E
0155501011 CLAMP-HOSE1985-08-01 ~ ; CA20E; , |
0155501011 |
US $4.18 |
||
|
16577E
|
16577E
08723-18300
CLAMP-HOSE
1983-10-01 ~ 1985-08-01; CA20E; , |
08723-18300 |
— | ||
|
16577E
|
16577E
01555-00561 CLAMP-HOSE1985-08-01 ~ ; CA20E; , |
01555-00561 |
US $7.34 |
||
| replacement | |||||
|
16577E
|
16577E
0155501011 CLAMP-HOSE1985-08-01 ~ ; CA20E; , |
0155501011 |
US $4.18 |
||
|
16577E
|
16577E
08723-18300
CLAMP-HOSE
1983-10-01 ~ 1985-08-01; CA20E; , |
08723-18300 |
— | ||
|
16577J
|
16577J
14464-R2201 Clamp-Tube1983-10-01 ~ ; CA20E; , |
14464-R2201 |
US $14.11 |
||
|
16577M
|
16577M
16577-01F01 Hose Assy-Air Duct1983-10-01 ~ ; CA20E; , |
16577-01F01 |
US $60.62 |
||
|
16578
|
16578
16578-07F05
Air Duct
1983-10-01 ~ ; CA20E; , |
16578-07F05 |
— | ||
|
22680
|
22680
22680-07F01
Mass Air Flow
1983-10-01 ~ 1986-01-01; CA20E; , |
22680-07F01 |
— | ||
|
22680
|
22680
22680-D3500
Mass Air Flow
1986-01-01 ~ ; CA20E; , |
22680-D3500 |
— | ||
